Mid-Back Mesh Ergonomic Office Task Chair Specifications

MB-FA-MESH-059

代码:1DTZGAV1
获取供应商报价
2026-08-10 19:08人气: 47
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MB-FA-MESH-059

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

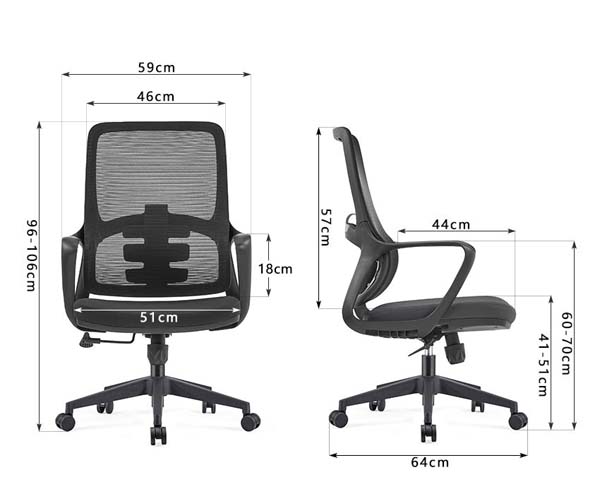

Overall dimensions590 x 640 x 1060 mm
Seat width510 mm
Seat depth440 mm
Adjustable seat height510 mm
Backrest height570 mm
Backrest inner width460 mm
Armrest height above seat180 mm
Five-star base diameter700 mm
Seat thickness80 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net chair weight15 kg
Recommended user weight capacity120 kg
Gas lift cycle durability120000 cycles
Caster rolling durability100000 cycles
Five-star base static load capacity1136 kg
Seat foam density45 kg/m³
Seat foam rebound rate40%
Standard product warranty3 years
Available color options1
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest panelTensioned breathable polyester mesh over nylon frame
Back support structureIntegrated molded nylon lumbar support frame
Seat cushion core45kg/m³ high-density molded PU foam
Seat upholsteryWear-resistant polyester fabric over foam pad
ArmrestsFixed curved PP armrests with padded top surface
Seat support board12mm thick plywood inner support panel
Five-star baseReinforced black nylon five-prong base
Gas liftSteel Class 3 pneumatic cylinder with black finish
Casters60mm diameter black PU dual-wheel swivel casters
Mechanism chassis2.5mm thick steel tilt mechanism with powder coat
Seam stitch pitch8 mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Height adjustmentPneumatic seat height adjustment with 100mm stroke via under-seat lever
Swivel function360-degree full rotation at seat-base swivel junction
Tilt functionSynchro-tilt rocking with adjustable tension and single-position lock
Tilt lock angle12 degree maximum recline angle for backrest tilt
Mobility functionSmooth rolling on hard floors and low-pile carpet via PU casters
Lumbar supportFixed contoured integrated lumbar support aligned to lower back
Armrest functionFixed-height curved armrests for forearm support during seated work
Upholstery breathabilityMesh back allows continuous airflow to reduce back heat buildup
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open office workstationsCompact footprint fits standard 1200mm desk stations for daily staff use
Home office setupsBreathable mesh back suitable for extended seated work in residential spaces
Conference room seatingFixed armrests and professional finish suit meeting room guest seating
Training room layoutsSwivel and mobility features support easy movement during training sessions
Cubicle employee seatingStandard ergonomic dimensions fit 90th percentile adult users for full shifts
Reception visitor areasNeutral black color matches most commercial office interior design schemes
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic requirements
EN 1335-2:2018Applies to office chair strength, durability and stability performance
EN 1335-3:2009Applies to office chair structural and mechanical test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair durability and safety requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional accuracy and stability testing
GB/T 10357.3-2013Applies to office chair seat and back strength and durability testing
GB 18584-2001Applies to formaldehyde emission limits for furniture components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional accuracy and stability testing;
2. GB/T 10357.3-2013:Applies to office chair seat and back strength and durability testing;
3. GB 18584-2001:Applies to formaldehyde emission limits for furniture components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MB-FA-MESH-059

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MB-FA-MESH-059

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MB-FA-MESH-059打开导出工具

页面快速操作

发布采购询价

产品描述

The Mid-Back Mesh Ergonomic Office Task Chair (model MB-FA-MESH-059) is an unbranded professional seating solution designed for versatile commercial and residential workspaces. Visually, it features a clean, streamlined silhouette with a neutral black finish that aligns with most commercial interior design schemes, paired with a structured mid-height backrest, fixed curved armrests, and a wide five-prong base for a balanced, professional appearance. Its overall dimensions of 590 x 640 x 1060 mm create a compact footprint that integrates seamlessly into standard desk layouts without excessive visual bulk. Constructed for long-term regular use, the chair pairs a tensioned breathable polyester mesh backrest set over a durable nylon frame, with an integrated molded nylon lumbar support structure positioned to align with the natural curve of the lower back. The seat features a 45kg/m³ high-density molded PU foam core with 40% rebound rate, upholstered in wear-resistant polyester fabric, supported by a 12mm thick plywood inner panel. Fixed curved PP armrests with padded top surfaces sit 180 mm above the seat, while the base uses a reinforced black nylon five-prong design with 700 mm diameter, fitted with 60mm black PU dual-wheel swivel casters and a black-finished Class 3 steel pneumatic gas lift. All structural components are engineered for durability, with tested load capacities and cycle ratings suited to daily multi-user use, supporting a maximum recommended user weight of 120 kg. Functional features support comfortable, flexible seated work: a side under-seat lever controls pneumatic seat height adjustment with 100mm travel, the seat and back junction enables 360-degree full swivel rotation, and a synchro-tilt mechanism offers adjustable rocking tension with a single-position lock at a 12 degree maximum backrest recline. The PU casters roll smoothly across hard floors and low-pile carpet, while the fixed contoured lumbar support and padded armrests reduce strain during extended sitting. The breathable mesh back prevents heat buildup for all-day comfort, and the seat dimensions (510 mm width, 440 mm depth) accommodate 90th percentile adult users for full-shift use. This chair is suited to a wide range of spaces: it fits standard 1200mm open office workstations and cubicle employee seating, works reliably for home office extended work sessions, presents a polished look for conference room guest seating, supports easy repositioning during training room activities, and blends seamlessly into reception visitor areas. For procurement, note that each unit ships in 2 cartons with a total packaged gross weight of 23 kg and 0.26 m³ volume, requires 40 minutes of assembly per set, and allows 135 sets to be loaded in a 20GP container at 85% space utilization, making it a practical choice for both small-scale and bulk furnishing projects.
