High-Back Ergonomic Mesh Office Chair with Retractable Footrest Specifications

ERG-MESH-OFC-01

代码:30Z54FV1
获取供应商报价
2026-08-11 19:25人气: 67
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-MESH-OFC-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

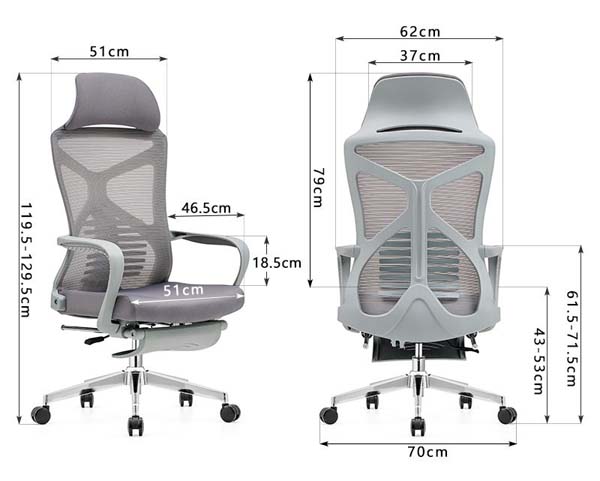

Overall dimensions (WxDxH)700 x 620 x 1295 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Maximum static user weight capacity150 kg
Seat cushion foam density45 kg/m³
Backrest mesh tensile strength2000 N/50mm
Backrest recline angle range135 degrees
Caster rolling durability cycle count100000 cycles
Seat front edge static load capacity75 kg
Gas lift cycle durability120000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest support frameGlass-fiber reinforced polypropylene
Backrest upholsteryTensioned elastic polyester mesh
Seat cushion core40mm thick high-density molded polyurethane foam
Seat cushion surfaceWoven breathable polyester fabric
ArmrestsFixed PP armrests with padded PU contact pads
Five-star basePolished chrome-plated 1.5mm thick steel
Gas lift cylinderChrome-plated steel Class 3 gas lift
Casters50mm diameter black polyurethane swivel casters
Headrest surfaceCurved padded fabric-covered headrest
Integrated footrestReinforced polypropylene retractable footrest
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic height adjustment via 100mm stroke Class 3 gas lift, controlled by side lever
Backrest reclineSynchro-tilt recline to 135 degrees with tension adjustment knob
360-degree swivelFull rotational swivel around central gas lift axis
Retractable footrestSlide-out footrest stored under seat, deployable for reclined rest positions
Smooth rolling mobilityFive dual-wheel PU casters suitable for hard floors and low-pile carpet
Integrated lumbar supportCurved X-frame design provides static lumbar contour matching natural spine curve
Tilt lock mechanismLockable upright position via under-seat control lever
Tilt tension adjustmentRotary knob to adjust recline resistance to match user weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office workstationsErgonomic support for 8+ hour daily seated work for general office staff
Home office workspacesCompact footprint fits standard home desk setups for remote workers
Manager private officesHigh-back design provides appropriate comfort and aesthetic for executive use
Breakout rest areasRetractable footrest supports short reclined rest breaks during workdays
Meeting and conference roomsSwivel and mobility support flexible interaction during collaborative meetings
24/7 control room workstationsDurable construction supports extended shift use with height and recline adjustment
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office furniture - Office work chair safety, strength, and durability requirements
EN 1022:2019Furniture - Seating - Determination of stability for all chair types
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Standard for general-purpose office chairs covering strength, durability, and safety
Five-star base static load ratingRecommended references: BIFMA X5.1
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical specification for wooden and upholstered metal frame furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical specification for wooden and upholstered metal frame furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-MESH-OFC-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-MESH-OFC-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-MESH-OFC-01打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG ERG-MESH-OFC-01 High-Back Ergonomic Mesh Office Chair with Retractable Footrest is a purpose-built seating solution designed to balance structured support, functional versatility, and understated professional aesthetics across work and rest settings. Visually, the chair features a streamlined high-back silhouette anchored by a polished chrome-plated steel five-star base, with a curved fabric-padded headrest capping the tensioned mesh backrest and fixed armrests positioned to maintain clear, unobstructed space between rests. The cohesive, neutral design fits unobtrusively into both commercial and residential layouts without overwhelming surrounding decor. Its construction prioritizes long-term durability and breathable comfort: the backrest is supported by a glass-fiber reinforced polypropylene frame wrapped in tensioned elastic polyester mesh, paired with an integrated curved X-frame lumbar support shaped to match the natural spine contour. The seat combines a high-density molded polyurethane foam core with a woven breathable polyester fabric surface, finished with fixed polypropylene armrests topped with padded polyurethane contact pads. Mobility is delivered via black polyurethane swivel casters mounted to the five-star base, with a Class 3 chrome-plated steel gas lift supporting core adjustability. Core functional features address varied user needs across work and rest: pneumatic seat height adjustment is controlled via a side lever, while a synchro-tilt mechanism allows backrest recline to 135 degrees, with a tension adjustment knob and under-seat tilt lock to secure the upright working position. The chair offers full 360-degree swivel, smooth rolling across hard floors and low-pile carpet, and a slide-out retractable footrest stored neatly under the seat, deployable for comfortable reclined rest. The chair supports a maximum static user weight capacity of 150 kg, with durable components tested to hold up to extended regular use. This model suits a wide range of spaces: open-plan office workstations for general staff completing 8+ hours of daily seated work, compact home office setups for remote workers, private manager offices where the high-back design delivers executive-appropriate comfort and aesthetic, breakout rest areas for short workday breaks, collaborative meeting and conference rooms where swivel and mobility support flexible interaction, and 24/7 control room workstations requiring durable, adjustable seating for extended shifts. Procurement teams should note the product ships as one set across two cartons, with a reference assembly time of 40 minutes per unit, making it easy to coordinate bulk rollouts or individual home delivery. The casters are formulated for use on hard floors and low-pile carpet, so additional floor protection is not required for these surface types, and the chair’s consistent material finish supports easy coordinated furnishing across multiple space types.
