Mid-Back Fixed Armrest Ergonomic Mesh Office Chair Specifications

OFM-FX-650GY

代码:4XELQEV1
获取供应商报价
2026-08-11 15:27人气: 33
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFM-FX-650GY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

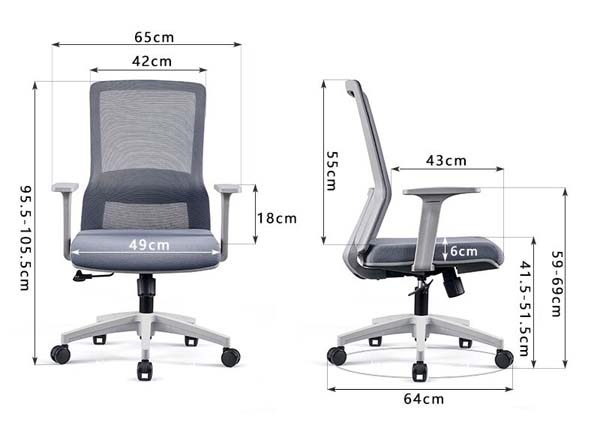

Overall dimensions (W x D x H)650 x 690 x 1055 mm
Seat width490 mm
Seat depth430 mm
Maximum seat height (floor to seat top)515 mm
Minimum seat height (floor to seat top)415 mm
Backrest height550 mm
Backrest width420 mm
Seat cushion thickness60 mm
Armrest height above seat180 mm
Five-star base diameter640 mm
Caster diameter55 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity125 kg
Net weight per chair12 kg
Tilt rocking angle12 degrees
Gas lift adjustment stroke100 mm
Gas lift cycle durability100000 cycles
Seat static load capacity160 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryHigh-tension polyester breathable mesh
Backrest support frameGlass-fiber reinforced polypropylene
Seat cushion core40 kg/m³ high-density molded polyurethane foam
Seat upholsteryWear-resistant polyester fabric
Armrest constructionFixed T-shaped polypropylene armrests with flat contact pads
Five-star baseInjection-molded glass-fiber reinforced nylon
Gas lift cylinderClass 2 black steel gas lift with 50mm outer tube diameter
Tilt mechanism2mm thick cold-rolled steel plate with single-position lock
Casters55mm diameter hard PA nylon swivel casters
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic 100mm stroke adjustment via right-side under-seat lever, locks at any set height
360-degree swivel rotationFull rotation around central gas lift axis for easy workstation access
Backrest tilt rockingSynchronized tilt with manual tension adjustment, locks in upright position
Fixed lumbar supportContoured curved mesh panel at lower back provides consistent support
Smooth rolling mobilityTwin-wheel casters roll on hard floors and low-pile carpet, no locking brake
Fixed armrest supportRigid armrests provide 180mm of upper arm support at fixed height
Breathable back ventilationOpen mesh back prevents heat buildup during extended sitting
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office workstationsCompact 650mm width fits standard partitioned office desks for employee task seating
Home office study spacesLight gray neutral finish matches modern home desks for remote work use
Conference and meeting roomsMid-back design provides upright support for short to medium duration meetings
Reception and waiting areasBreathable mesh and rolling base support flexible, guest-friendly seating arrangements
Call center and shared desk environmentsDurable construction and easy-clean fabric suit high-turnover multi-user settings
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic performance
EN 1335-2:2018Applies to office chair structural strength, stability and durability testing
EN 1335-3:2009Applies to office chair test methods for mechanical performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and durability requirements
Caster rolling durability100000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional accuracy and stability testing
GB/T 10357.3-2013Applies to office chair mechanical strength and durability testing
GB 18584-2001Applies to formaldehyde emission limits for wooden/fabric furniture components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional accuracy and stability testing;
2. GB/T 10357.3-2013:Applies to office chair mechanical strength and durability testing;
3. GB 18584-2001:Applies to formaldehyde emission limits for wooden/fabric furniture components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFM-FX-650GY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFM-FX-650GY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFM-FX-650GY打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG Mid-Back Fixed Armrest Ergonomic Mesh Office Chair, model OFM-FX-650GY, delivers a balanced blend of supportive comfort and practical durability for commercial and home work settings. Its streamlined, professional silhouette features a 650mm overall width, with a 420mm wide, 550mm tall mesh backrest paired with a fixed T-shaped polypropylene armrest design that offers stable upper arm support without excess visual bulk, fitting neatly alongside standard and oversized work surfaces. Constructed for long-term regular use, the chair uses high-tension polyester breathable mesh for the backrest, stretched over a glass-fiber reinforced polypropylene frame that holds a contoured curved panel to deliver consistent built-in lumbar support. The seat features a 60mm thick core of high-density molded polyurethane foam wrapped in wear-resistant polyester fabric for easy upkeep. Its base is built from injection-molded glass-fiber reinforced nylon, paired with a Class 2 black steel gas lift, a 2mm thick cold-rolled steel tilt mechanism with single-position lock, and 55mm hard PA nylon twin-wheel swivel casters. The chair supports a 125kg recommended user weight, with a 160kg seat static load capacity and gas lift tested to 100000 adjustment cycles. Functional features include 100mm pneumatic seat height adjustment that locks at any preferred height between 415mm and 515mm, 360-degree swivel for unobstructed access to adjacent workstation surfaces, synchronized back tilt with 12 degrees of rocking motion, manual tension control, and an upright position lock. The open mesh backrest prevents heat buildup during extended sitting, while casters roll smoothly across hard floors and low-pile carpet without locking brakes for flexible repositioning. This model suits a wide range of spaces: it fits compact open-plan office workstations with standard partitioned desks, pairs well with modern home study desks for remote work, provides upright support for conference and meeting room use, enables flexible guest seating in reception areas, and stands up to high-turnover shared use in call centers. It is designed to match 2.4m executive desks as well. Procurement teams should note the chair ships in knock-down construction across two cartons per set, requires 40 minutes of assembly per unit, and allows for efficient bulk shipping with 135 sets fitting in a 20GP container at 85% space utilization. The light gray neutral finish coordinates with most existing workspace decor schemes.
