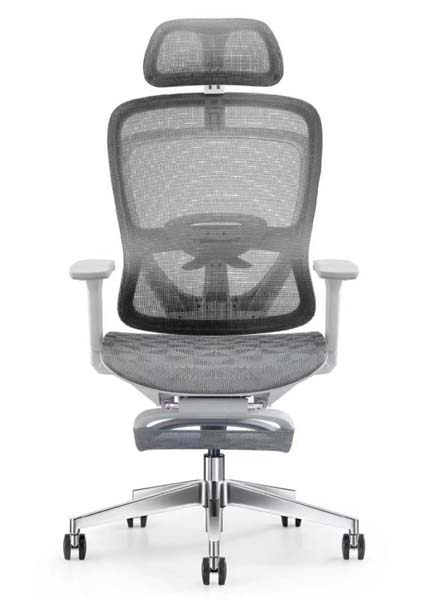

Grey Mesh High-Back Ergonomic Office Chair with Headrest and Retractable Footrest Specifications

ERG-OFC-MSH-FT-001

代码:75JP9HV1
获取供应商报价
2026-08-28 13:34人气: 29
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-OFC-MSH-FT-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions700 x 690 x 1220 mm
Seat height adjustment range555 mm
Seat width515 mm
Seat depth510 mm
Backrest height from seat surface580 mm
Five-star base diameter700 mm
Caster diameter60 mm
Headrest dimensions320 x 180 mm
Retractable footrest extension length280 mm
Armrest height from seat surface220 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight204 kg
Chair net weight17.5 kg
Seat static load capacity136 kg
Backrest recline angle range135 degrees
Gas lift stroke length135 mm
Caster rolling durability rating100000 cycles
Mesh upholstery abrasion resistance50000 double rubs
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable elastic polyester mesh
Seat cushion40mm thick high-density foam wrapped in matching mesh
Structural frameGrey glass-fiber reinforced polypropylene
HeadrestElastic mesh upholstery over PP support frame
ArmrestsFixed light grey PP arm pads with integrated PP support posts
Five-star base1.5mm thick chrome-plated steel
Gas lift cylinderChrome-plated SGS Class 3 steel cylinder
Casters60mm diameter black PU twin-wheel casters
Recline mechanism2.5mm thick steel plate with multi-position lock
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic height adjustment via side lever, 135mm travel
Backrest reclineLockable recline with tension adjustment, up to 135 degrees
Retractable footrestPull-out padded footrest stored under seat, extends 280mm
360-degree swivelFull rotation around central gas lift axis for multi-directional access
Integrated lumbar supportContoured fixed lumbar zone aligned with lower back curvature
Height-adjustable headrestUp/down adjustable headrest to support neck in upright and reclined positions
Smooth rolling mobilityTwin-wheel casters suitable for hard floors and low-pile carpet
Tilt tension controlAdjustable tension knob to match recline resistance to user weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open office workstationsSuitable for 8-hour daily seated work with adjustable ergonomic support
Home office study spacesFits standard 760 mm height desks with rolling mobility for home use
Executive private officesHigh-back design with recline function supports extended work and short rest breaks
Co-working shared workspacesDurable construction and neutral grey color suits multi-user rotating use
Meeting and conference rooms360-degree swivel and rolling mobility supports easy collaboration around tables
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable for office chair dimensional and structural safety performance requirements
EN 1335-2:2018Applicable for office chair strength, durability and stability testing requirements
EN 1335-3:2009Applicable for test methods to verify office chair safety and performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable for general-purpose office chair safety and performance testing standards
ANSI/BIFMA X5.11-2015Applicable for large-user office chair load and durability verification
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applicable for dimensional measurement and tolerance verification of office chairs
GB/T 10357.3-2013Applicable for strength and durability testing of office chair seating surfaces
GB 28007-2011Applicable for general safety requirements of office furniture including chairs
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applicable for dimensional measurement and tolerance verification of office chairs;
2. GB/T 10357.3-2013:Applicable for strength and durability testing of office chair seating surfaces;
3. GB 28007-2011:Applicable for general safety requirements of office furniture including chairs;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-OFC-MSH-FT-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-OFC-MSH-FT-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-OFC-MSH-FT-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Grey Mesh High-Back Ergonomic Office Chair with Headrest and Retractable Footrest (model ERG-OFC-MSH-FT-001) is an unbranded public and workplace seating solution defined by clean, modern lines and a coordinated neutral grey finish that blends seamlessly across professional environments. Its contoured high-back silhouette integrates a height-adjustable mesh headrest, fixed curved armrests, and a pull-out footrest stored flush beneath the seat to maintain a streamlined, uncluttered profile when not in use. The five-star chrome base and black twin-wheel casters create a balanced, polished visual foundation suited to both formal and casual work settings. Constructed for long-term repeated use, the chair features a glass-fiber reinforced polypropylene structural frame supporting a backrest upholstered in breathable elastic polyester mesh, paired with a 40mm thick high-density foam seat cushion wrapped in matching mesh. The 1.5mm thick chrome-plated steel five-star base supports an SGS Class 3 chrome-plated steel gas lift cylinder, connected to a 2.5mm thick steel plate recline mechanism with multi-position lock. The chair uses 60mm black PU twin-wheel casters, fixed light grey PP arm pads with integrated support posts, and an elastic mesh headrest mounted on a PP support frame. All material and structural components are engineered to withstand regular multi-user operation. Functional features are designed to support varied working postures across extended use. Pneumatic seat height adjustment operates via a side lever with 135mm of travel, while the lockable backrest reclines up to 135 degrees with adjustable tension, paired with a contoured fixed lumbar zone aligned to natural lower back curvature. The height-adjustable headrest supports the neck in both upright and reclined positions, and the under-seat retractable footrest extends 280mm to support short rest breaks. Full 360-degree swivel around the central axis enables multi-directional access, and the twin-wheel casters deliver smooth rolling mobility on hard floors and low-pile carpet. This chair is suitable for corporate open office workstations for 8-hour daily seated work, home office study spaces paired with standard 760mm height desks, executive private offices for extended work and short rest breaks, co-working shared workspaces for rotating multi-user use, and meeting and conference rooms where mobility supports easy table-side collaboration. It pairs ideally with 2.4m executive desks. Procurement teams should note the chair ships as one set across two cartons, with a packaged gross weight of 23kg per set and total carton volume of 0.26 cubic meters per set. On-site assembly requires 40 minutes per unit. At 85% space utilization, a 20GP shipping container holds 135 sets, with a maximum recommended user weight of 204kg to support long-term durability in high-traffic public and workplace settings.
