High-Back Adjustable Mesh Ergonomic Office Chair Specifications

ERG-MESH-650ADJ

代码:8PDLUNV1
获取供应商报价
2026-08-11 20:01人气: 66
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-MESH-650ADJ

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

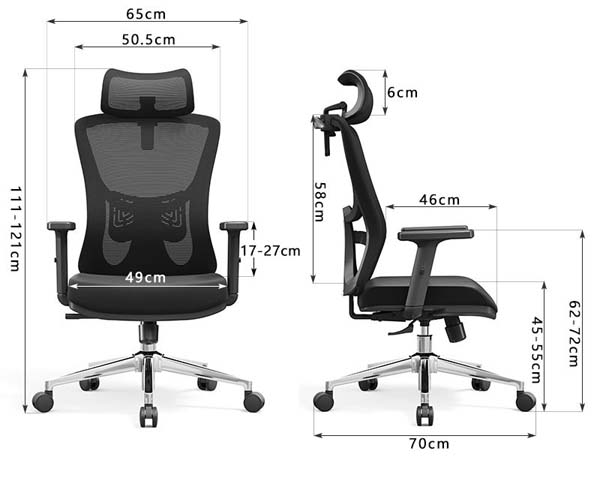

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions650 x 700 x 1210 mm
Seat usable width490 mm
Backrest width505 mm
Backrest height (excluding headrest)580 mm
Headrest height60 mm
Seat depth (maximum adjustment)500 mm
Seat height above floor (maximum adjustment)550 mm
Armrest height above seat (maximum adjustment)270 mm
5-star base overall diameter700 mm
Caster diameter60 mm
Seat foam thickness90 mm
Knee clearance under seat (lowest position)450 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity150 kg
Chair net weight28 kg
Caster rolling durability100000 cycles
Mesh back abrasion resistance50000 cycles
Recline maximum angle135°
Seat depth adjustment travel50 mm
Gas lift height travel100 mm
Operation noise level on hard flooring35 dB
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest support surfacePolyester-nylon blend breathable elastic mesh
Seat cushion core90mm thick high-density molded polyurethane foam, 45kg/m³ density
Seat upholstery coverWear-resistant polyester fabric, 0.8mm thickness
Armrest topsSoft PU padded surfaces, rigid nylon support frames
Internal seat/back frame1.8mm thick welded alloy steel internal frame
Gas lift columnChrome-plated steel Class 3 pneumatic cylinder, 50mm tube diameter
Tilt mechanism3mm thick steel synchronized tilt chassis with tension adjust
5-star basePolished aluminum alloy, 2mm wall thickness, 350mm radius
Casters60mm diameter soft PU tread, nylon wheel hub
Headrest cushionCurved mesh-covered high-density foam pad, 60mm thickness
Lumbar support zoneContoured mesh-backed ergonomic lumbar pad, height adjustable
Seam stitching specification30mm stitch pitch, high-tenacity polyester thread
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic gas lift adjustment, 100mm travel, 550 mm seat height range
Backrest recline functionSynchronized tilt, 135° maximum recline, 3-position tilt lock
Lumbar support adjustment2D vertical adjustment, adaptive elastic support for lower back
Headrest adjustment2D height and angle adjustment, 60mm cushion depth
Armrest adjustment3D adjustment: height, pivot, forward/back slide, 100mm height travel
Seat depth adjustmentForward/back seat slide, 50mm travel for thigh support adjustment
Tilt tension adjustmentKnob-controlled tension setting to match user weight
360-degree swivel functionFull rotation around central gas lift column for multi-direction access
Smooth caster mobilityPU casters roll on hard wood, tile, and low-pile carpet without floor damage
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workstationProvides 8+ hour seated support for executive and professional staff
Open-plan task workspace360° swivel and smooth casters support frequent movement between desk areas
Home office setupAdjustable dimensions fit multiple user heights in residential workspaces
Conference room casual seatingRecline and mobility support flexible meeting and collaboration postures
Hot-desking shared workspacesMulti-axis adjustment adapts quickly to different users across shifts
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional, safety, and strength requirements
EN 1335-2:2018Applies to office work chair structural performance and stability testing
EN 1022:2018Applies to seating furniture stability verification for commercial use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety, durability, and structural performance
ANSI/BIFMA X5.11-2015Applies to heavy-user weight capacity validation for office seating
Base static load rating1136 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional accuracy and stability testing requirements
GB 28007-2011Applies to office chair safety, structural strength, and durability requirements
GB/T 10357.3-2013Applies to furniture mechanical performance testing for seating strength
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional accuracy and stability testing requirements;
2. GB 28007-2011:Applies to office chair safety, structural strength, and durability requirements;
3. GB/T 10357.3-2013:Applies to furniture mechanical performance testing for seating strength;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-MESH-650ADJ

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-MESH-650ADJ

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-MESH-650ADJ打开导出工具

页面快速操作

发布采购询价

产品描述

The High-Back Adjustable Mesh Ergonomic Office Chair, model ERG-MESH-650ADJ from an unbranded line, features a streamlined, professional silhouette tailored for extended seated use. Its layout centers on a tall, contoured mesh back paired with a generously proportioned seat, balanced atop a polished 5-star base that supports full 360-degree swivel. The integrated headrest sits flush with the upper edge of the backrest, while adjustable armrests extend naturally from the seat frame to create a cohesive, uncluttered visual profile suited to formal and casual work environments alike. Construction prioritizes durability and breathable comfort across every component. The backrest uses a polyester-nylon blend breathable elastic mesh, rated for 50,000 cycles of abrasion resistance, stretched over a 1.8mm thick welded alloy steel internal frame. The seat cushion holds a 90mm thick, 45kg/m³ density high-density molded polyurethane foam core, wrapped in 0.8mm thick wear-resistant polyester fabric. Armrests combine soft PU padded tops with rigid nylon support frames, while the base is crafted from polished aluminum alloy with 2mm wall thickness, fitted with 60mm diameter soft PU tread casters on nylon hubs, rated for 100,000 rolling cycles. Height adjustment relies on a chrome-plated steel Class 3 pneumatic gas lift with 50mm tube diameter, paired with a 3mm thick steel synchronized tilt chassis. A full suite of adjustable functions supports personalized ergonomic fit: pneumatic seat height adjustment delivers 100mm of travel to a maximum seat height of 550mm, while the synchronized tilt mechanism allows 135 degrees of maximum recline with 3-position lock and knob-controlled tension adjustment to match user weight. The 2D vertically adjustable lumbar support delivers adaptive elastic lower back support, while the headrest offers 2D height and angle adjustment. Armrests provide 3D adjustability across height, pivot, and forward/back slide with 100mm of height travel, and seat depth adjusts via a 50mm forward/back slide to refine thigh support. The chair supports a maximum user weight of 150kg, with a net weight of 28kg. This chair is suited to a wide range of work settings: it delivers 8+ hours of seated support for executive and professional staff in private office workstations paired with a 2.4m executive desk, while smooth casters and swivel function support frequent movement in open-plan task spaces. Its multi-axis adjustments adapt quickly to rotating users in hot-desking shared workspaces, support flexible postures for conference room collaboration, and fit multiple user heights for home office setups. For procurement, note each unit ships in 2 cartons, with a packaged gross weight of 23kg and total carton volume of 0.26m³, allowing 135 sets to load in a 20GP container at 85% space utilization. Assembly requires 40 minutes per set, and all adjustable components are designed for tool-free user tuning after setup.
