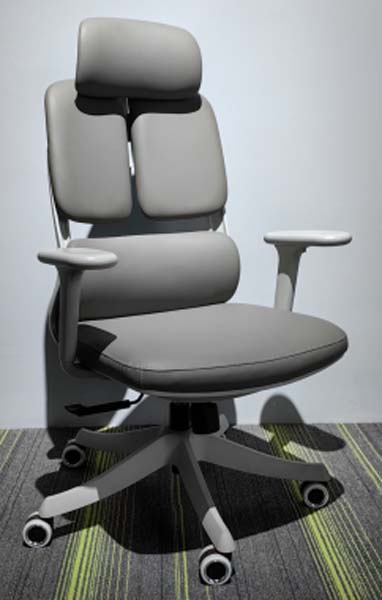

Dual Split Backrest Ergonomic Executive Office Chair with Headrest Specifications

OFC-SPLTBACK-HDRST-01

代码:97LGY7V1
获取供应商报价
2026-08-10 10:54人气: 59
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-SPLTBACK-HDRST-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions670 x 680 x 1220 mm
headrest dimensions280 x 160 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

net weight22 kg
maximum static user load150 kg
seat foam density45 kg/m³
back foam density38 kg/m³
gas lift stroke length100 mm
seat tilt recline angle15 degrees
caster rolling durability60000 cycles
seam stitch pitch8 mm per stitch
five-star base static load capacity1136 kg
upholstery abrasion resistance50000 double rubs
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

seat upholstery1.2mm thick PU faux leather with visible edge stitching
backrest upholstery1.2mm thick PU faux leather over split support pads
internal seat frame1.5mm thick stamped steel support plate
back support frame1.2mm thick steel tubular frame
five-star base2.5mm thick polished die-cast aluminum alloy
armrest supports2mm thick matte light gray nylon composite
armrest padsRigid PU padded rounded surface
caster wheelsPU tread with nylon hub and chrome trim ring
filling foamHigh-resilience polyurethane molded foam
gas lift cylinderClass 3 chrome-plated steel
tilt chassis3mm thick cold-rolled steel synchro-tilt mechanism plate
headrest filling35 kg/m³ polyurethane foam with PU upholstery
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

seat height adjustment100mm vertical travel via side lever actuated gas lift
recline tilt control15 degree synchro tilt with tension adjustment knob under seat
headrest adjustment60mm vertical travel and 20 degree angle tilt for neck support
360 degree swivel rotationFull rotation enabled by central swivel mechanism
smooth caster mobility5 dual-wheel casters for hard floor and low-pile carpet use
split lumbar supportDual independent back pads for targeted bilateral lumbar pressure relief
tilt lock functionLockable upright position via mechanism under seat
fixed stable armrestsRigid non-adjustable armrests with 230mm resting height for consistent forearm support
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

private executive officeHigh-back support for long-duration seated work for management staff
open plan workstationNeutral light gray finish coordinates with modern open office decor
home office spaceCompact footprint fits residential workspaces without overcrowding
meeting and conference roomsErgonomic support for extended meetings and collaborative work
reception visitor areaProfessional aesthetic suitable for guest and visitor seating
manager workstation areaAdjustable height range accommodates 190 cm tall adult users
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020European standard for office chair dimensional and structural safety requirements
EN 1335-2:2018European standard for office chair strength, durability and stability testing
EN 1022:2018European standard for seating furniture stability verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017North American standard for general purpose office chair safety and performance
ANSI/BIFMA X5.11-2015North American standard for heavy-duty office chairs for higher user weights
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Recommended standard for office furniture dimensional accuracy for desks and chairs
GB/T 35607-2017Recommended standard for green product evaluation of office furniture for low VOC content
GB 28007-2011Applicable standards and test results require confirmation
GB/T 19943-2005Standard for performance testing of upholstered office chair foam
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Recommended standard for office furniture dimensional accuracy for desks and chairs;
2. GB/T 35607-2017:Recommended standard for green product evaluation of office furniture for low VOC content;
3. GB 28007-2011:Applicable standards and test results require confirmation;
4. GB/T 19943-2005:Standard for performance testing of upholstered office chair foam;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-SPLTBACK-HDRST-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-SPLTBACK-HDRST-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-SPLTBACK-HDRST-01打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded dual split-back ergonomic executive office chair with headrest, model OFC-SPLTBACK-HDRST-01, features a high-back executive silhouette structured around a five-star caster base for stable, mobile support. Its visual design uses stitched 1.2mm PU faux leather upholstery paired with polished die-cast aluminum for the base, matte light gray nylon composite for armrest supports, and chrome trim accents on caster wheels, delivering a polished, professional look that fits both commercial and residential decor schemes. The chair’s construction uses durable, layered materials for lasting performance. The seat rests on a 1.5mm thick stamped steel internal support plate, with padding from high-resilience molded polyurethane foam of 45 kg/m³ density, covered in stitched faux leather for a finished appearance. The split backrest uses a 1.2mm thick tubular steel support frame, with 38 kg/m³ density foam padding across two independent support pads wrapped in matching 1.2mm PU faux leather. The five-star base is formed from 2.5mm thick polished die-cast aluminum, supporting armrests with rigid rounded PU padding and dual-wheel casters with PU tread and nylon hubs suited for hard floors and low-pile carpet. Core functional features are engineered for extended seating comfort. The chair offers 100mm of vertical seat height adjustment via a side-lever actuated gas lift, alongside a 15-degree synchro tilt mechanism with tension control and a lockable upright position. The attached headrest adjusts 60mm vertically and tilts 20 degrees to support the neck, while the split dual back pads deliver targeted bilateral lumbar pressure relief across a dedicated support zone. Full 360-degree swivel and smooth-rolling casters enable easy repositioning, with a maximum static user load of 150 kg and an adjustable height range that accommodates adult users up to 190 cm tall. This chair is suitable for a wide range of spaces, including private executive offices for management staff working long seated shifts, open plan workstations where its neutral finish coordinates with modern decor, compact home offices, meeting and conference rooms for extended collaborative sessions, reception areas for guest seating, and dedicated manager workstations. Procurement teams should note the chair ships as one set across two cartons, with a packaged gross weight of 23 kg per set and a reference assembly time of 40 minutes per unit. It has a compact footprint that avoids overcrowding smaller spaces, with clear spacing between armrests to accommodate a range of user sizes, making it a flexible option for bulk workplace and home office furnishing projects.
