商品供应商High-Back Mesh Ergonomic Office Chair with Retractable Footrest
可联系供应商获取生产周期与报价。
2026-08-11 15:16人气: 52
参数纠错历史记录（所有访客可见）
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格

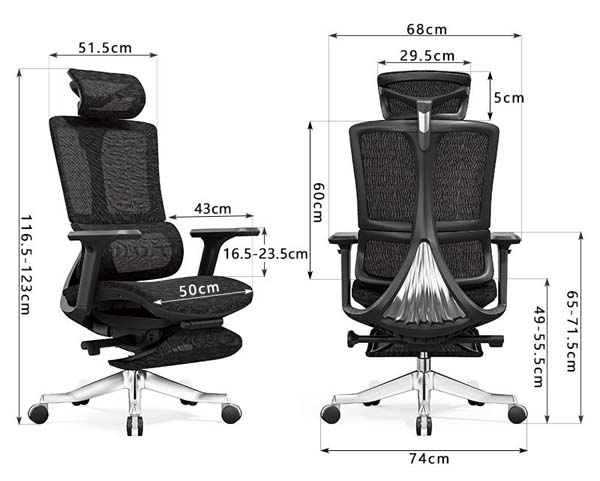

| Overall dimensions | 680 x 715 x 1230 mm | |
|---|---|---|
| 5-star base caster spread diameter | 740 mm | |
| Seat surface depth | 500 mm | |
| Backrest height | 600 mm | |
| Headrest dimensions | 295 x 50 mm | |
| Seat height adjustment range (seat to floor) | 555 mm | |
| Armrest height adjustment above seat | 235 mm | |
| Extended footrest overhang from seat | 430 mm | |
| Upper chair body width (arm to arm) | 680 mm | |
| Caster diameter | 60 mm | |
| Seat cushion thickness | 100 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Maximum recommended user weight capacity | 181 kg | |
|---|---|---|
| Product net weight | 20 kg | |
| 5-star base static load rating | 1000 kg | |
| Gas lift adjustment cycle rating | 120000 cycles | |
| Caster rolling durability | 100000 cycles | |
| Seat foam density | 40D | |
| Mesh upholstery abrasion resistance | 100000 Martindale cycles | |
| Backrest recline maximum angle | 140 degrees | |
| Backrest tilt lock positions | 4 positions | |
| Manufacturer warranty term | 5 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Backrest upholstery | Breathable polyester-nylon blend elastic mesh | |
|---|---|---|
| Seat cushion core | 40D high-density molded polyurethane foam | |
| Internal support frame | 1.5 mm thick reinforced steel tubing | |
| Back support frame | Glass-fiber reinforced nylon polymer | |
| Headrest padding | 40D high-resilience polyurethane foam | |
| Armrest pads | Soft polyurethane padded top surface | |
| 5-star base | Polished aluminum alloy | |
| Gas lift cylinder | Class 3 SGS/BIFMA-certified steel | |
| Tilt mechanism chassis | 3 mm thick stamped steel plate | |
| Caster wheels | 60 mm diameter polyurethane tread | |
| Retractable footrest pad | High-density foam with fabric upholstery | |
| Seam stitch pitch | 8 stitches per inch |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Height adjustment | Pneumatic gas lift adjusts seat height 65 mm total | |
|---|---|---|
| Recline function | Synchro-tilt mechanism reclines backrest to 140 degrees | |
| Retractable leg rest | Sliding padded footrest extends 430 mm from seat front | |
| Armrest adjustment | 1D height adjustment locks in 7 vertical positions | |
| Headrest adjustment | Curved headrest tilts and adjusts vertically | |
| Lumbar support | Split-tail Y-frame design conforms to lower back | |
| Mobility | Dual-wheel PU casters roll smoothly on all standard floors | |
| Tilt tension control | Under-seat rotary knob adjusts recline resistance | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Home office workspace | Suitable for long-duration seated work with lumbar support and recline relaxation | |
|---|---|---|
| Corporate open office workstations | Standard ergonomic spec fits standard 750 mm height desks for employee task seating | |
| Executive private office | High-back design and footrest support extended meetings and focused work sessions | |
| Study room and gaming setups | Recline and adjustable features support both computer work and casual leisure use | |
| Conference room seating | Swivel and height adjustment adapts to mixed table heights and meeting participants | |
| Co-working flexible spaces | Durable construction and universal adjustment fit a wide range of user body types | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 1335-1:2020 | Applies to dimensional and structural safety requirements for office work chairs | |
|---|---|---|
| EN 1335-2:2018 | Applies to mechanical stability, strength and durability performance requirements | |
| EN 1335-3:2009 | Applies to standardized test methods for verifying office chair performance |
美国及加拿大家具标准
| ANSI/BIFMA X5.1-2017 | Applies to general-purpose office chair safety and durability performance requirements | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 | Applies to load rating validation for users up to 159 kg weight capacity |
适用于中国市场项目的标准
| GB/T 3326-2016 | Applies to office chair dimensional measurement and tolerance requirements | |
|---|---|---|
| GB 28007-2011 | Applies to stability, strength and durability requirements for office chairs | |
| GB/T 10357.3-2013 | Applies to mechanical performance test methods for chair seating and backrest |
本产品须满足以下技术参数要求： 1. GB/T 3326-2016：Applies to office chair dimensional measurement and tolerance requirements； 2. GB 28007-2011：Applies to stability, strength and durability requirements for office chairs； 3. GB/T 10357.3-2013：Applies to mechanical performance test methods for chair seating and backrest； 最终交付参数、检测报告和验收标准以双方采购合同为准。
