Mid-back Ergonomic Mesh Office Task Chair with Fixed Loop Armrests Specifications

MTSH-MB-590GY

代码:AU1MZAV1
获取供应商报价
2026-08-10 19:13人气: 59
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MTSH-MB-590GY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

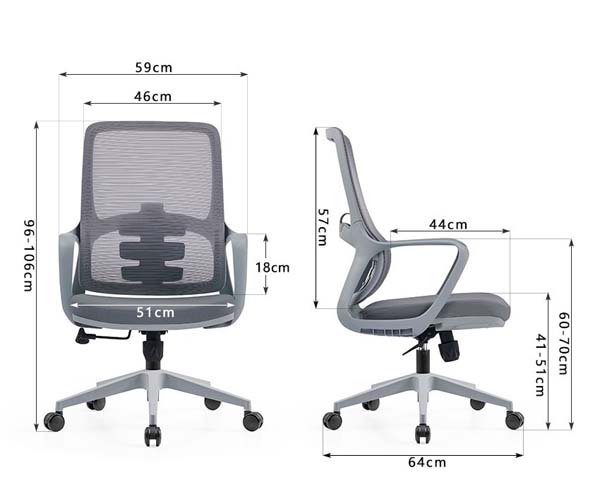

Overall dimensions590 x 640 x 1060 mm
Backrest inner width460 mm
Backrest height570 mm
Seat width510 mm
Seat depth440 mm
Maximum adjustable seat height510 mm
Minimum adjustable seat height410 mm
Armrest height above seat180 mm
Five-star base span diameter640 mm
Maximum total armrest height from floor700 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per unit19 kg
Recommended static user load capacity136 kg
Seat cushion foam density40 kg/m³
Caster rolling durability cycle count40000 cycles
Gas lift static load rating150 kg
Base static load test threshold1136 kg
Backrest mesh abrasion resistance50000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest constructionTensioned polyester mesh over PP lumbar support frame
Seat cushion padding50mm thick high-resilience cold-cure molded foam
Seat upholsteryWear-resistant polyester fabric seat cover
Armrest constructionIntegrated fixed loop PP armrests connected to back frame
Frame and chassis2mm thick steel tilt mechanism under seat with PP outer back shell
Gas lift cylinder100mm stroke Class 3 black painted steel pneumatic cylinder
Five-star baseGlass-fiber reinforced nylon five-prong caster base
Caster construction60mm diameter dual-wheel PU soft tread casters
Seat support plate12mm thick MDF inner seat support board
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100mm vertical travel via pneumatic gas lift, lever-operated under seat
Swivel function360-degree smooth full rotation around central gas lift axis
Tilt function12-degree backward synchro tilt with user weight tension adjustment
Mobility functionDual-wheel PU casters for smooth rolling on hard and carpeted floors
Lumbar supportFixed ergonomic shaped lumbar support zone integrated into mesh back
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office workstationsSuitable for 8 hour daily individual desk work with ergonomic lumbar support
Home office spacesCompact footprint fits standard home desk sizes for remote working use
Meeting room auxiliary seatingSuitable for short to medium duration seating in small conference spaces
Shared hot-desking environmentsDurable construction supports multi-user rotating use in flexible offices
Administrative staff workstationsFixed armrests and easy mobility suit administrative task work requirements
College library study spacesQuiet rolling casters and breathable back suit long-duration study use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable to office task chair dimensional, safety and strength performance requirements
EN 1335-2:2018Applicable to office chair mechanical safety test methods for procurement verification
EN 1335-3:2009Applicable to office chair structural stability and durability test criteria
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable to general-purpose office chairs safety and performance test standards
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 35607-2017Applicable to office chair stability, strength and durability testing for procurement acceptance
GB/T 3324-2017Applicable to general furniture dimensional tolerance and finish quality requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 35607-2017:Applicable to office chair stability, strength and durability testing for procurement acceptance;
2. GB/T 3324-2017:Applicable to general furniture dimensional tolerance and finish quality requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MTSH-MB-590GY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MTSH-MB-590GY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MTSH-MB-590GY打开导出工具

页面快速操作

发布采购询价

产品描述

The Mid-back Ergonomic Mesh Office Task Chair with Fixed Loop Armrests, model MTSH-MB-590GY, is a versatile unbranded seating solution designed for consistent daily use across commercial and residential settings. Its streamlined visual profile pairs a contoured mesh back with a neatly upholstered seat, supported by a sleek five-star base that balances a compact footprint with stable structural presence. Fixed loop armrests connect directly to the back frame, creating a cohesive, uncluttered silhouette that fits seamlessly into a range of interior schemes without excess decorative detailing. Constructed for enduring performance, the chair features a tensioned polyester mesh backrest set over a PP lumbar support frame, paired with a 50mm thick high-resilience cold-cure molded foam seat wrapped in wear-resistant polyester fabric. Its structural core includes a 2mm thick steel tilt mechanism housed beneath a PP outer back shell, supported by a glass-fiber reinforced nylon five-prong base fitted with 60mm diameter dual-wheel PU soft tread casters. A Class 3 black painted steel pneumatic cylinder facilitates height adjustment, while a 12mm thick MDF board forms the internal seat support structure. Functional design elements prioritize user comfort across extended use. The chair offers lever-operated seat height adjustment with 100mm of vertical travel, 360-degree smooth swivel rotation, and a 12-degree backward synchro tilt with user weight tension adjustment, plus three lock positions for a 125-degree recline. An integrated fixed ergonomic lumbar support zone aligns with the natural curve of the lower back, and the soft dual-wheel casters roll smoothly across both hard flooring and carpeted surfaces. The breathable mesh backrest supports airflow to reduce heat buildup during prolonged sitting. This chair is well-suited for open plan office workstations supporting eight hours of daily individual desk work, compact home office spaces paired with standard desk sizes, and short to medium duration use in small meeting rooms. It also holds up to rotating multi-user use in shared hot-desking environments, suits the mobility needs of administrative staff workstations, and fits quiet, extended study use in college library spaces. Procurement teams should note that each unit ships across two cartons, with an assembly time of 40 minutes per set. The chair supports a recommended static user load capacity aligned with its component ratings, and its durable material construction is engineered to withstand frequent, repeated use in high-traffic shared spaces. Order volume planning can reference standard 20GP container loading figures for efficient bulk shipping coordination.
