Mid-Back Black Mesh Ergonomic Office Chair with Fixed Armrests Specifications

MB-MESH-OFF-CH-001

代码:B1B5ZHV1
获取供应商报价
2026-08-11 15:18人气: 48
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MB-MESH-OFF-CH-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

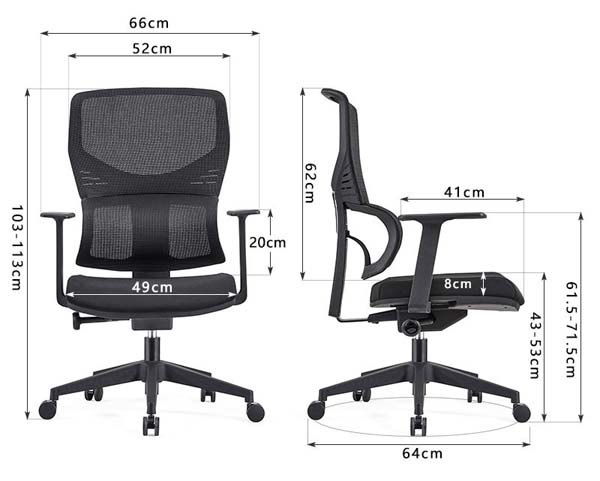

Overall dimensions660 x 640 x 1130 mm
Backrest width520 mm
Seat width490 mm
Backrest height620 mm
Seat depth410 mm
Seat height adjustment range530 mm
Seat cushion thickness80 mm
Armrest height above seat200 mm
Total armrest height from floor715 mm
Five-star base total diameter640 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight13 kg
Maximum recommended user weight136 kg
Five-star base static load rating1000 kg
Recommended user height range1800 mm
Tilt mechanism cycle rating60000 cycles
Seat cushion foam density45 kg/m³
Seat foam rebound rate55%
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable high-density polyester mesh
Back support frameNylon with fiberglass reinforcement
Seat cushion coreHigh-resilience cold-cured polyurethane foam
Seat upholsteryWoven abrasion-resistant fabric
ArmrestsFixed-height black PP plastic with smooth surface
Gas lift cylinderClass 3 chrome-plated steel
Tilt mechanism2.5 mm thick steel butterfly plate with lock and tension adjust
Five-star baseBlack molded nylon
Casters50 mm diameter PU-coated nylon swivel casters
Seat inner support12 mm thick molded plywood
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100 mm vertical stroke via central gas lift
Swivel function360-degree full rotation around central gas lift axis
Tilt function12-degree rearward recline with upright position lock
Tilt tension controlUser-adjustable knob modulates recline resistance for different weights
Mobility functionFive dual-surface casters for smooth rolling on hard floors and carpet
Lumbar supportContoured fixed mesh lumbar zone built into lower backrest
Armrest supportFixed-height loop armrests provide static forearm support during desk work
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Single carton dimensions650 x 610 x 480 mm
Gross weight per packaged unit15 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Home office useSuitable for private workstations with 760 mm standard desk height
Corporate open office useIdeal for employee task seating in general workspace layouts
Small meeting room useAppropriate for short-duration meeting and collaborative seating areas
Student study space useSuitable for secondary school or university dormitory/study desk setups
Coworking space useDurable mid-tier seating for hot-desk and shared work zones
Reception area useAppropriate for staff-side reception workstations in office lobbies
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable for office work chair dimensional safety requirements
EN 1335-2:2018Applicable for office chair structural strength and stability requirements
EN 1335-3:2009Applicable for office chair mechanical safety test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable for general-purpose office chair performance and durability requirements
ANSI/BIFMA X5.11-2015Applicable for office chair vertical load capacity testing for heavy users
Caster rolling durability100000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applicable for office furniture seating dimensional accuracy requirements
GB/T 3324-2017Applicable for general wooden and metal office furniture quality requirements
GB 18584-2001Applicable for indoor decoration material limited harmful substance emissions
GB/T 10357.3-2013Applicable for chair seating mechanical performance test methods
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applicable for office furniture seating dimensional accuracy requirements;
2. GB/T 3324-2017:Applicable for general wooden and metal office furniture quality requirements;
3. GB 18584-2001:Applicable for indoor decoration material limited harmful substance emissions;
4. GB/T 10357.3-2013:Applicable for chair seating mechanical performance test methods;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MB-MESH-OFF-CH-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MB-MESH-OFF-CH-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MB-MESH-OFF-CH-001打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG MB-MESH-OFF-CH-001 mid-back black mesh ergonomic office chair balances streamlined professional aesthetics, durable construction, and user-centric functionality for a wide range of work and study settings. Its visual form features a sleek, uniform black finish with clean, unobtrusive lines, centered on a contoured mid-rise backrest framed for structural rigidity, paired with neatly integrated fixed loop armrests and a classic five-star caster base that creates a compact, orderly footprint suited to organized space layouts. The chair’s overall dimensions measure 660 x 640 x 1130 mm, with a 520 mm wide backrest, 490 mm wide seat, 620 mm backrest height, 410 mm seat depth, 80 mm thick seat cushion, and armrests positioned 200 mm above the seat surface for consistent forearm placement. For construction, the backrest uses breathable high-density polyester mesh stretched over a nylon frame reinforced with fiberglass, while the seat cushion core is formed from high-resilience cold-cured polyurethane foam with a 45 kg/m³ density and 55% rebound rate, upholstered in woven abrasion-resistant fabric. Fixed armrests are crafted from smooth black PP plastic, supported by a Class 3 chrome-plated steel gas lift, 2.5 mm thick steel butterfly plate tilt mechanism with lock and tension adjustment, black molded nylon five-star base, and 50 mm diameter PU-coated nylon swivel casters. The chair supports 100 mm of vertical seat height adjustment reaching a maximum 530 mm seat height, 360-degree full swivel rotation, 12-degree rearward recline with upright position lock, user-adjustable tilt tension to modulate recline resistance, smooth rolling across hard floors and carpet via five dual-surface casters, and a contoured fixed mesh lumbar zone integrated into the lower backrest. It holds a 13 kg net weight, supports a maximum recommended user weight of 136 kg, accommodates users up to 1800 mm tall, and meets durability benchmarks including a 1000 kg five-star base static load rating and 60000-cycle tilt mechanism rating. This model is well suited for home office workstations paired with 760 mm standard height desks, corporate open office employee task seating, small meeting room collaborative spaces, secondary school and university study or dormitory desks, coworking hot-desk zones, and staff-side reception workstations in office lobbies. For procurement, note each unit ships across two cartons, with a total packaged gross weight of 23 kg, and requires 40 minutes of assembly time per set. Order quantities should align with planned seating layouts, and the chair is positioned as a durable mid-tier option for high-utilization shared or dedicated work areas.
