High-Back Ergonomic Mesh Office Chair with Adjustable Headrest Specifications

KL-05A/B

代码:BC7YG1V1
获取供应商报价
2026-08-10 13:58人气: 52
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

KL-05A/B

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

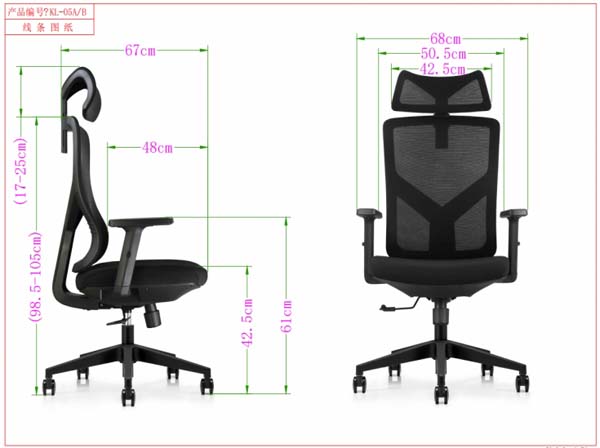

Overall dimensions680 x 670 x 1050 mm
Seat height425 mm
Seat depth480 mm
Backrest width505 mm
Headrest width425 mm
Headrest vertical adjustment travel250 mm
Armrest height from floor610 mm
5-star base diameter660 mm
Caster diameter60 mm
Seat cushion thickness80 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity150 kg
Net chair weight20 kg
Seat foam density45 kg/m³
Foam rebound rate60%
Back mesh abrasion resistance50000 cycles
5-star base static load rating1600 kg
Caster rolling durability100000 cycles
Recommended daily usage duration8 hours
Recommended maximum daily usage duration8 hours
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable polyester mesh
Seat cushion paddingHigh-density molded polyurethane foam
Seat base support12 mm bent plywood inner panel
Back frameReinforced PP+fiberglass Y-frame
Armrest structureSteel support post with PU padded top
Gas lift cylinderClass 4 steel pneumatic cylinder
5-star baseReinforced nylon construction
CastersPA+PU dual-wheel swivel casters
Headrest paddingBreathable mesh with curved PP support
Seat inner support panel12 mm thick bent plywood core
Back support frameReinforced PP+fiberglass Y-shaped frame
Armrest assembly1.5 mm steel support post with PU padded top
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Headrest adjustment250 mm vertical height adjustment for neck support
Seat height adjustment100 mm pneumatic lift via under-seat lever
Swivel function360-degree full rotation around central axis
Backrest tilt function135-degree recline with multi-position lock
Tilt tension adjustmentKnob-controlled tension for user weight calibration
Armrest adjustment80 mm vertical height adjustment for arm support
Mobility functionDual-wheel casters for smooth rolling on hard and carpet floors
Lumbar supportContoured Y-frame static lumbar support integrated into backrest
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workspaceSuitable for executive desks requiring 8-hour daily ergonomic support
Open plan office cubiclesStandard footprint fits 700 mm deep workstations without overhang
Home office studyAdjustable features accommodate multiple users in residential workspaces
Conference room seatingSwivel and tilt function supports collaborative meeting use
24-hour call center environmentsBreathable mesh and durable construction supports shift work use
Co-working shared spacesNeutral black finish matches diverse office decor schemes
Private executive officeSuitable for executive desks requiring 8-hour daily ergonomic postural support
Conference meeting rooms360-degree swivel and tilt support natural movement during collaborative discussions
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office work chair dimensional safety and performance requirements
EN 1335-2:2018Applies to office chair strength, durability and stability testing
EN 1022:2018Applies to domestic and contract seating stability test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and performance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office furniture size measurement and dimensional tolerances
GB/T 35607-2017Applies to green product evaluation for office furniture VOC limits
GB 28007-2011Applies to structural safety requirements for office chairs
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office furniture size measurement and dimensional tolerances;
2. GB/T 35607-2017:Applies to green product evaluation for office furniture VOC limits;
3. GB 28007-2011:Applies to structural safety requirements for office chairs;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · KL-05A/B

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · KL-05A/B

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · KL-05A/B打开导出工具

页面快速操作

发布采购询价

产品描述

The High-Back Ergonomic Mesh Office Chair with Adjustable Headrest (model KL-05A/B, unbranded) presents a streamlined, professional silhouette tailored for extended seated use, with a contoured high-back structure, curved integrated headrest, and evenly proportioned layout that balances support with a compact footprint suitable for standard desk configurations. Its construction pairs a breathable polyester mesh backrest supported by a reinforced PP+fiberglass Y-frame with a padded fabric seat built over a 12 mm bent plywood inner panel, cushioned with high-density molded polyurethane foam. The frame combines plastic and metal structural elements, anchored by a reinforced nylon 5-star caster base fitted with PA+PU dual-wheel swivel casters. Armrests feature steel support posts topped with soft PU padding, while height and tilt adjustments operate via a Class 4 steel pneumatic cylinder. The headrest uses breathable mesh over a curved PP support for consistent neck contact. This chair delivers comprehensive adjustability for personalized comfort, including 250 mm vertical headrest travel, 100 mm pneumatic seat height adjustment controlled by an under-seat lever, 80 mm vertical armrest height adjustment, and 360-degree swivel rotation. The backrest supports 135-degree recline with multi-position locking, paired with a knob-controlled tilt tension feature to calibrate resistance to individual user preference. Dual-wheel casters enable smooth rolling across both hard flooring and carpeted surfaces. It is well suited for a wide range of commercial and residential spaces, including private executive offices for daily extended use, open plan office cubicles where its standard footprint fits standard workstations without overhang, residential home offices shared by multiple users, conference rooms supporting collaborative meetings, 24-hour call centers for shift-based work, and co-working shared spaces, where its neutral black finish aligns with varied decor schemes. For procurement, note that each unit ships across two cartons, with an assembly time per set. The 20GP container loading capacity supports bulk order planning for large fit-out projects, and the chair’s weight rating accommodates a broad range of users across shared or dedicated workstations.
