High Back Ergonomic Mesh Office Chair with Adjustable Headrest Specifications

EMOC-WF-067

代码:CKF2X0V1
获取供应商报价
2026-08-11 16:27人气: 46
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EMOC-WF-067

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

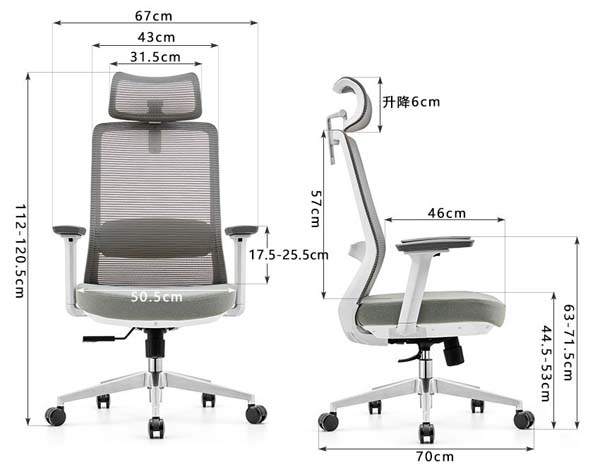

Overall dimensions670 x 700 x 1205 mm
Seat width505 mm
Seat depth460 mm
Backrest width430 mm
Backrest height above seat570 mm
Headrest width315 mm
Seat height adjustment range530 mm
Armrest height above seat255 mm
Headrest vertical travel60 mm
Five-star base diameter700 mm
Arm-to-arm overall width670 mm
Overall depth including headrest protrusion715 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity136 kg
Net product weight17 kg
Seat foam density60 kg/m³
Gas lift static load rating1136 kg
Backrest recline angle range135 degrees
Color option count3
Warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable grey woven polyester mesh
Headrest upholsteryMatching grey breathable mesh
Seat cushion core80mm thick high-density molded polyurethane foam
Seat surface fabricWear-resistant breathable polyester fabric
Back/headrest support frameWhite glass-fiber reinforced polypropylene
Armrest support structureWhite painted die-cast aluminum alloy
Armrest pads20mm thick soft polyurethane padding
Five-star basePolished die-cast aluminum alloy
Caster wheels65mm diameter black polyurethane on nylon hub
Height adjustment gas liftChrome-plated steel Class 4 gas cylinder
Tilt mechanism chassis3mm thick cold-rolled steel plate
Seam stitch pitch8 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic gas lift adjusts seat 85mm via right-side under-seat lever
Headrest adjustment60mm vertical height adjustment to match neck position
Armrest adjustment80mm vertical height adjustment to match desk/elbow height
Backrest recline3-position lockable tilt with tension adjustment up to 135 degrees
Swivel function360-degree full rotation around central gas lift axis
Mobility featureDual-wheel PU casters roll smoothly on hard/soft floors without scratching
Lumbar supportContoured S-curve backrest provides built-in mid-back support
Rocking functionFree-tilt mode with adjustable tension knob for user weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workspaceSuitable for individual executive workstations requiring long-sitting comfort
Open plan task areaLow-noise casters and breathable mesh suit shared office desk layouts
Home office studyCompact footprint and modern white frame match residential study aesthetics
Co-working shared spaceDurable commercial construction supports frequent multi-user adjustment
User height rangeFits users 185 cm tall based on seat height and backrest dimensions
Recommended desk pairingPairs with standard 760 mm height office desks or sit-stand workstations
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety requirementEN 1335:2018
Office chair dimension standardEN 1335:2020
Caster durability standardEN 12528:2010
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair general test standardANSI/BIFMA X2017
Caster performance standardANSI/BIFMA X5.1 Clause 17
Caster rolling durability100000 cycles
Seat static load capacity102 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair safety standardGB/T 10357.2
Upholstery fabric durabilityGB/T 21196.2
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair safety standard:GB/T 10357.2;
2. Upholstery fabric durability:GB/T 21196.2;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EMOC-WF-067

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EMOC-WF-067

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EMOC-WF-067打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG EMOC-WF-067 High Back Ergonomic Mesh Office Chair balances structured support, clean visual appeal, and functional durability for diverse work settings. Its contemporary form features a tall, contoured S-curve backrest paired with a coordinating adjustable headrest, supported by a white glass-fiber reinforced polypropylene frame that contrasts softly with its consistent grey mesh upholstery. The polished die-cast aluminum five-star base and white painted die-cast aluminum armrest supports lend a sleek, professional finish, while dual-wheel black polyurethane casters maintain a streamlined profile that complements both commercial and residential interiors. The compact 670 x 700 x 1205 mm footprint keeps sightlines open in shared layouts without compromising supportive surface dimensions. Durable, performance-focused materials form the chair’s core construction. The backrest and headrest are upholstered in breathable woven grey polyester mesh, while the 80mm thick seat cushion uses high-density 60 kg/m³ molded polyurethane foam wrapped in wear-resistant breathable polyester fabric. Armrests feature 20mm thick soft polyurethane padding, paired with 65mm diameter polyurethane casters mounted on nylon hubs that roll smoothly across hard and soft floors without scratching surfaces. The heavy-duty pneumatic gas lift carries a 1136 kg static load rating, supporting a maximum recommended user weight of 136 kg, with a 17 kg net weight that balances sturdiness and easy repositioning. Targeted adjustments support all-day seated comfort. A right-side under-seat lever controls 85mm of pneumatic seat height adjustment, the headrest offers 60mm of vertical travel to align with neck position, and armrests adjust 80mm vertically to match desk or elbow height. The backrest tilts to a 135-degree recline with three lockable positions and adjustable tilt tension, built-in mid-back lumbar support follows the natural spine curve, and 360-degree swivel enables easy access to surrounding work surfaces. Three color options are available to align with existing decor schemes. The chair is suited for private executive workstations, open-plan task areas, home office studies, and co-working spaces, fitting users up to 185 cm tall and pairing seamlessly with standard 760mm height office desks or sit-stand workstations. Procurement teams should note delivery includes two cartons per set, with 40 minutes of assembly time per unit, a 3-year product warranty, and 135-set loading capacity for a 20-foot general purpose container at 85% space utilization to support bulk commercial ordering.
