Mid-Back Ergonomic Mesh Swivel Office Chair with Fixed Armrests Specifications

MB-MESH-01

代码:EB9AYWV1
获取供应商报价
2026-08-11 15:22人气: 41
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MB-MESH-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

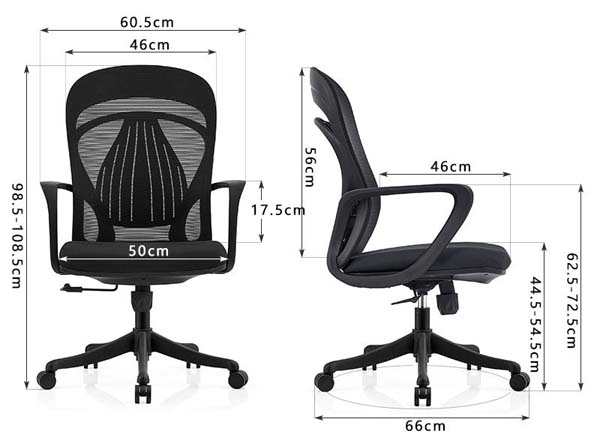

Overall dimensions605 x 660 x 1085 mm
Seat width500 mm
Seat height adjustment range545 mm
Backrest width460 mm
Backrest height560 mm
Armrest height above seat175 mm
Five-star base diameter660 mm
Seat depth460 mm
Total seat to backrest top height range725 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Maximum static load capacity136 kg
Net weight12 kg
Seat cushion foam density45 kg/m³
Seat cushion foam thickness50 mm
Backrest mesh abrasion resistance30000 double rubs
Caster rolling durability100 km
Recommended user weight limit120 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable black polyester mesh
Backrest frameGlass-fiber reinforced nylon (PA)
Seat cushion core12 mm thick plywood support board
Seat cushion paddingHigh-density molded polyurethane foam
Seat upholsteryBlack woven fabric
ArmrestsFixed loop-style polypropylene (PP)
Gas lift cylinderClass 3 carbon steel gas spring
Mechanism plate2.0 mm thick cold-rolled steel
Five-star baseInjection-molded black nylon
Casters55 mm diameter dual-wheel PU casters
Internal fastenersZinc-plated steel hardware
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100 mm pneumatic travel via under-seat lever
Swivel function360-degree full rotation around central axis
Backrest tilt function15-degree rocking recline with tension adjustment
Mobility featureSmooth rolling on 5 dual-wheel casters
Lumbar supportIntegrated curved structural lumbar brace
Armrest functionFixed curved arm support for forearm rest
Tilt tension controlUser-adjustable resistance knob under seat
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate workstation useOpen office cubicles and individual workstations
Home office setupResidential study and remote work spaces
Conference room seatingMeeting and boardroom temporary seating
Student desk useHomework and study desk seating
Reception area seatingFront desk and visitor waiting areas
Training room deploymentFlexible training and seminar room seating
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety requirementEN 1335:2020
Office chair strength/durability requirementEN 1335:2018
Office seating stability requirementEN 1022:2018
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair safety performanceANSI/BIFMA X2017
Caster durability requirementANSI/BIFMA X2017Clause 17
Gas lift performance requirementANSI/BIFMA X2017Clause 8
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair stability requirementGB/T 10357.2
Chair strength and durability requirementGB/T 10357.3
Upholstery fabric safety requirementGB 18401Category B
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair stability requirement:GB/T 10357.2;
2. Chair strength and durability requirement:GB/T 10357.3;
3. Upholstery fabric safety requirement:GB 18401Category B;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MB-MESH-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MB-MESH-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MB-MESH-01打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG MB-MESH-01 mid-back ergonomic mesh swivel office chair presents a streamlined, professional profile finished in a cohesive matte black palette, with balanced component proportions suited to unobtrusive placement across varied work environments. Its structure centers on a contoured mid-rise backrest paired with a generously sized seat, fixed curved loop armrests positioned to support natural forearm alignment, and a wide five-star base fitted with dual-wheel casters for stable, agile movement. Constructed for consistent long-term use, the chair’s backrest uses breathable black polyester mesh stretched over a glass-fiber reinforced nylon frame, anchored by an integrated curved structural lumbar brace to support the lower back during extended seated periods. The seat is built on a 12mm thick plywood support board, padded with 50mm thick high-density molded polyurethane foam and upholstered in durable black woven fabric. Fixed armrests are formed from robust polypropylene, while core functional components include a Class 3 carbon steel gas lift cylinder, 2.0mm thick cold-rolled steel mechanism plate, and injection-molded black nylon five-star base. The backrest mesh delivers reliable abrasion resistance, casters are engineered for extended rolling durability, and the seat cushion uses high-resilience 45 kg/m³ density foam for balanced comfort. Functional features are tailored to flexible seated work needs: a 100mm pneumatic seat height adjustment is operated via an intuitive under-seat lever, the chair supports full 360-degree swivel, and a 15-degree rocking recline is paired with a user-adjustable under-seat tension knob to customize recline resistance to individual preference. Five dual-wheel casters enable smooth, quiet movement across common floor surfaces, while fixed armrests provide consistent upper body support during typing or writing tasks. This chair is well suited for a wide range of commercial and residential spaces, including open office cubicles, individual corporate workstations, residential home studies and remote work setups, conference and boardroom areas, student study desks, front reception and visitor waiting zones, and flexible training or seminar rooms. Procurement teams should note that each unit ships across two cartons, with a 40-minute per-unit assembly time, and plan for appropriate receiving and assembly staffing when ordering for large-scale deployments. Buyers should also align selection with the recommended user weight limit to ensure optimal product service life, and account for packaged weight and volume when coordinating freight and on-site storage.
