商品供应商High-Back Ergonomic Mesh Office Chair with Adjustable Headrest and Lumbar Support，Breathable grey woven polyester mesh
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06

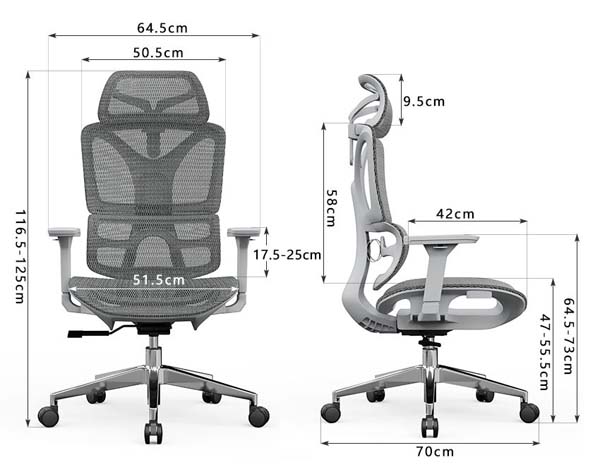

基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 645 × 700 × 1250 mm | |
|---|---|---|
| seat width | 515 mm | |
| seat depth | 505 mm | |
| seat height range | 555 mm | |
| backrest height | 580 mm | |
| armrest height above seat | 250 mm | |
| headrest projection from back | 95 mm | |
| five-star base diameter | 700 mm | |
| seat to top of headrest total height | 730 mm | |
| armrest pad length | 420 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| net weight | 18 kg | |
|---|---|---|
| recommended user weight capacity | 136 kg | |
| seat cushion foam density | 45 kg/m³ | |
| seat foam rebound rate | 45% | |
| mesh abrasion resistance | 50000 cycles | |
| static load rating for five-star base | 1130 kg | |
| caster rolling durability | 100000 cycles | |
| recommended daily use duration | 8 hours | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| backrest upholstery | Breathable grey woven polyester mesh | |
|---|---|---|
| seat cushion padding | 70 mm thick high-density molded foam | |
| backrest frame | Glass-fiber reinforced PA plastic | |
| central gas lift | Chrome-plated steel Class 4 pneumatic cylinder | |
| five-star base | Polished die-cast aluminium alloy | |
| armrest pads | Soft PU surface over rigid PP support | |
| casters | 60 mm dual-wheel PU casters | |
| headrest padding | Breathable mesh over curved frame | |
| internal seat frame | 3 mm thick stamped steel plate | |
| seam stitch pitch | 8 stitches per inch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| 360-degree swivel rotation | Full rotation enabled by central swivel mechanism | |
|---|---|---|
| pneumatic seat height adjustment | 85 mm stroke controlled by under-seat lever | |
| backrest recline function | Up to 125 degree recline with multi-position lock | |
| height-adjustable armrests | 75 mm vertical adjustment range for arm pad height | |
| articulating headrest adjustment | Height and angle adjustment for neck support | |
| adaptive lumbar support | Contoured segmented mesh zones for lower back support | |
| synchro-tilt mechanism | Synchronized seat and back tilt with tension adjustment | |
| smooth rolling mobility | Dual-wheel casters suitable for hard floors and low-pile carpet | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| export carton dimensions | 920 x 450 x 680 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| private office workstation | Suitable for executive and staff desks requiring 8-hour daily seating | |
|---|---|---|
| home office setup | Fits standard desk heights for remote work and long computer sessions | |
| open-plan office areas | Neutral grey finish matches modern office interior design schemes | |
| co-working spaces | Adjustable features accommodate users of varying heights and seating preferences | |
| meeting and conference rooms | Professional appearance and swivel function suit collaborative meeting environments | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1335-1:2020 | Office work chairs - safety requirements, applicable to structural and stability verification | |
|---|---|---|
| EN 1335-2:2018 | Office work chairs - test methods, applicable to functional durability validation | |
| EN 1022:2018 | Furniture - seating - determination of stability, applicable to overturn risk testing |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.1-2017 | Office chairs standard, applicable to static, dynamic and durability performance testing |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3325-2017 | General technical requirements for metal furniture, applicable to structural strength testing | |
|---|---|---|
| GB 28007-2011 | Safety requirements for office chairs, applicable to stability and edge safety checks |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3325-2017：General technical requirements for metal furniture, applicable to structural strength testing； 2. GB 28007-2011：Safety requirements for office chairs, applicable to stability and edge safety checks； 最终交付参数、检测报告和验收标准以双方采购合同为准。
