High-Back Breathable Mesh Ergonomic Office Chair with Adjustable Headrest and Silver 5-Star Caster Base Specifications

ERG-MESH-700-HB

代码:G9RK72V1
获取供应商报价
2026-08-11 16:14人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-MESH-700-HB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

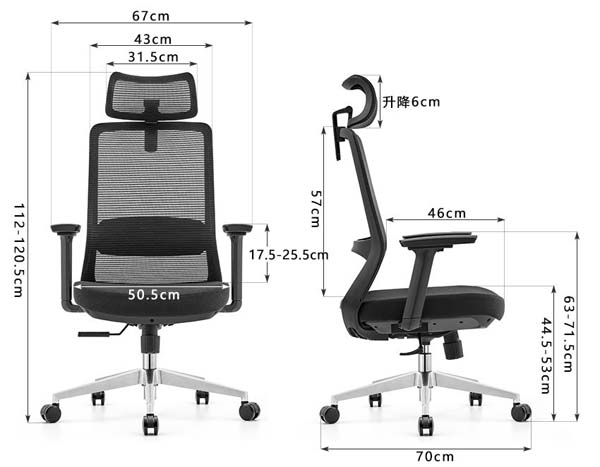

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions670 x 700 x 1205 mm
Five-star base diameter700 mm
Seat width505 mm
Seat depth460 mm
Seat height range (from floor)530 mm
Backrest width430 mm
Headrest width315 mm
Headrest height adjustment travel60 mm
Backrest height (from seat)570 mm
Armrest height range (from seat)255 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight20 kg
Maximum recommended static load200 kg
Gas lift service cycle rating120000 cycles
Caster rolling durability120000 cycles
Mesh upholstery abrasion resistance50000 Martindale cycles
Recommended user height range1850 mm
Seat foam density55 kg/m³
Seat foam thickness80 mm
Warranty period36 months
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable black polyester tension mesh
Backrest frameReinforced black polypropylene structural frame
Seat cushion coreHigh-density cold-cured molded foam
Seat outer shellBlack molded polypropylene seat pan
Armrest padsSoft-touch padded polyurethane contact surface
Armrest supportsReinforced polypropylene height-adjustable uprights
Five-star baseSilver-finish metallic alloy (chrome steel or aluminum)
Gas lift cylinderChrome-plated steel nitrogen-filled cylinder
CastersBlack polyurethane tread dual-wheel casters
HeadrestBreathable black mesh on curved PP frame
Upholstery seam stitch pitch8 mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic height adjustment via Class 3 gas lift, 85 mm travel
Headrest adjustmentVertical height adjustment with 60 mm upward travel
Armrest adjustmentVertical height adjustment with 80 mm travel to align with desk surfaces
Swivel function360-degree full rotation around central gas lift axis
Recline functionSynchro-tilt backrest recline with 135-degree maximum lock angle
Tilt tension controlKnob-adjustable recline tension to match user weight
Mobility functionSmooth-rolling dual-wheel casters for use on hard or carpeted floors
Lumbar supportContoured integrated lumbar support zone in mid-back mesh
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open office workstationsSuitable for 8-hour daily work with full adjustability for varied user heights
Home office study spacesCompact footprint fits standard desk setups with breathable comfort for extended use
Conference and meeting roomsProfessional neutral appearance, swivel and mobility support collaborative discussion
IT and creative studio workspacesErgonomic support reduces fatigue during long focused work sessions
Shared hot-desking environmentsQuick, tool-free adjustability adapts to different users across shifts
Manager and executive private officesProfessional styling with premium adjustability for senior workspace use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office work chair dimensional, safety and strength requirements for EU market procurement
EN 1335-2:2018Applies to mechanical safety requirements including stability and durability for office chairs
EN 1335-3:2009Applies to test methods for verifying structural and functional performance of office chairs
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair performance, durability and safety requirements for North American procurement
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional, material and structural strength requirements for domestic procurement
GB/T 10357.2-2013Applies to static load and durability testing of chair seats, backs and armrests
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional, material and structural strength requirements for domestic procurement;
2. GB/T 10357.2-2013:Applies to static load and durability testing of chair seats, backs and armrests;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-MESH-700-HB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-MESH-700-HB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-MESH-700-HB打开导出工具

页面快速操作

发布采购询价

产品描述

The ERG-MESH-700-HB high-back ergonomic office chair features a professional, streamlined visual profile anchored by a contrasting silver five-star caster base and matte black structural elements. Its contoured mesh backrest flows into an integrated padded seat, with a matching adjustable headrest positioned above the upper back edge, and height-adjustable armrests flanking the seat to form a cohesive, functional layout suited to a wide range of workspace aesthetics. Constructed for long-term regular use, the chair pairs a breathable black polyester tension mesh backrest set within a reinforced polypropylene frame with a seat built around a high-density cold-cured molded foam core, supported by a molded polypropylene seat pan. The silver-finish metallic alloy five-star base holds chrome-plated steel nitrogen-filled gas lift cylinders and black polyurethane dual-wheel casters, while armrests feature soft padded polyurethane contact surfaces mounted on reinforced height-adjustable polypropylene uprights. Core functional features support user comfort across extended seated sessions: pneumatic seat height adjustment allows tailored positioning, while the headrest offers vertical travel to support the neck, and armrests adjust vertically to align with standard desk surfaces. The chair delivers full 360-degree swivel, a synchro-tilt recline with a locked maximum angle, knob-adjustable tilt tension calibrated to individual user weight, and smooth-rolling casters suitable for both hard flooring and carpeted surfaces. A dedicated lumbar support zone built into the backrest further reduces strain during long periods of focus. This model works equally well across commercial and residential spaces. It supports 8 hours of daily use for corporate open office workstations, fits compact home office study setups, offers a neutral professional look for conference and meeting rooms, reduces fatigue during long creative or technical work sessions in IT and studio spaces, adapts quickly between users in shared hot-desking environments, and carries a polished enough aesthetic for manager and executive private offices. Procurement teams should note the chair ships across two cartons per set, with a reference assembly time per unit that allows for straightforward deployment across large floorplans. The product has a clearly stated maximum recommended static load to guide user suitability, and is designed to accommodate users up to the upper end of the recommended height range. The unbranded model offers flexible integration with existing workspace furnishing schemes without requiring alignment with proprietary brand design lines.
