High-Back Ergonomic Mesh Office Chair with Adjustable Headrest and Fixed Loop Armrests Specifications

EMOC-HB625-FA

代码:LMB660V1
获取供应商报价
2026-08-11 17:55人气: 52
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EMOC-HB625-FA

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

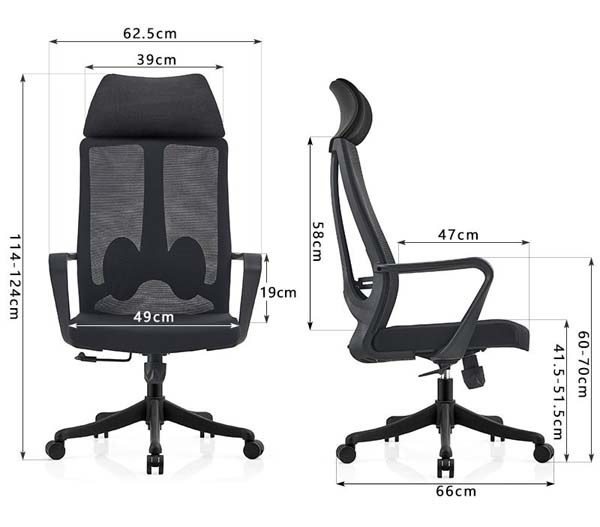

Overall dimensions625 x 660 x 1240 mm
Seat width490 mm
Seat depth470 mm
Maximum seat height (floor to seat top)515 mm
Minimum seat height (floor to seat top)415 mm
Backrest height (seat to back top)580 mm
Upper backrest width390 mm
Armrest height above seat190 mm
Maximum headrest height above seat700 mm
Five-star base diameter350 mm
Caster diameter50 mm
Headrest pad dimensions280 x 160 x 40 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity136 kg
Five-star base static load rating1000 kg
Chair net weight16 kg
Gas lift service life100000 height adjustment cycles
Seat foam density45D
Seat foam thickness50 mm
Mesh back abrasion resistance50000 double rubs
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest support panelReinforced nylon-fiberglass frame with tensioned breathable mesh
Integrated lumbar supportMolded PP contoured support built into back frame
Seat cushion core45D high-density molded polyurethane foam
Seat upholsteryWoven black polyester fabric over foam pad
Headrest pad30D soft foam wrapped in black fabric, curved for neck support
ArmrestsOne-piece fixed closed-loop black PP, connected between seat and back frame
Five-star baseGlass-fiber reinforced black nylon, 5 legs with caster sockets
Gas lift cylinderBlack powder-coated steel Class 3 pneumatic cylinder
Casters50mm black PU dual-wheel swivel casters
Tilt mechanism2.5mm thick stamped steel plate with spring tension
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic 100mm vertical travel via under-seat lever, locks at desired height
360-degree swivel rotationFull rotation around gas lift axis for multi-directional access
Backrest recline functionLockable tilt up to 126 degrees from upright position, with tension adjustment
Headrest adjustment100mm vertical height adjustment to match user neck position
Mobility functionSmooth rolling on hard floors and low-pile carpet via dual-wheel PU casters
Lumbar supportFixed contoured dual-lobe support aligns with natural lower back curve
Upright position lockLocks backrest in fully upright position for focused task work
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open office workstationsSuitable for 8-hour daily task work with ergonomic lumbar and neck support
Home office spacesCompact 625mm width fits standard home desk setups with seated knee clearance
Conference and meeting roomsSwivel and recline function supports collaborative meeting and discussion use
Administrative and staff work areasFixed armrests provide consistent upper body support for regular desk tasks
Commercial co-working spacesDurable mesh and foam construction withstands high-frequency multi-user use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to dimensional safety requirements for office work chairs
EN 1335-2:2018Applies to structural safety and performance requirements for office chairs
EN 1335-3:2009Applies to test methods for verifying office chair safety and durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general purpose office chair durability, strength and stability requirements
Caster rolling durability100000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to furniture size measurement for office chairs, used to verify published dimensions
GB/T 10357.3-2013Applies to mechanical strength and stability testing of office seating
GB 18584-2001Applies to formaldehyde emission limits for interior decoration furniture materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to furniture size measurement for office chairs, used to verify published dimensions;
2. GB/T 10357.3-2013:Applies to mechanical strength and stability testing of office seating;
3. GB 18584-2001:Applies to formaldehyde emission limits for interior decoration furniture materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EMOC-HB625-FA

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EMOC-HB625-FA

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EMOC-HB625-FA打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded EMOC-HB625-FA ergonomic mesh office chair features a sleek, professional all-black finish that complements modern commercial and residential work environments. Its high-back silhouette integrates a curved, neck-supporting adjustable headrest, fixed closed-loop armrests, and a sturdy five-star base, delivering a balanced, streamlined visual presence without protruding or overly decorative elements. The chair measures 625 x 660 x 1240 mm overall, with seat dimensions of 490 mm width and 470 mm depth, armrests positioned 190 mm above the seat surface, and a 580 mm tall backrest tailored to support the full length of the spine. Durable, purpose-built materials form the core of the chair’s construction. The backrest uses a reinforced nylon-fiberglass frame strung with tensioned breathable mesh, with an integrated molded PP contoured dual-lobe lumbar support built directly into the frame to align with the natural lower back curve. The seat holds a 50 mm thick core of 45D high-density molded polyurethane foam, upholstered in woven black polyester fabric for soft, resilient seating. Fixed armrests are formed as one-piece black PP units connected between the seat and back frame for stable upper body support. The glass-fiber reinforced black nylon five-star base supports a Class 3 black powder-coated steel gas lift, fitted with 50mm black PU dual-wheel swivel casters. The headrest uses a 30D soft foam pad wrapped in black fabric, curved to cradle the neck. The mesh back holds an abrasion resistance rating of 50000 double rubs, the gas lift is rated for 100000 height adjustment cycles, the five-star base carries a 1000 kg static load rating, and the chair supports a maximum user weight of 136 kg, with a net weight of 16 kg. Core functional features support varied work styles: pneumatic seat height adjustment delivers 100 mm of vertical travel via an under-seat lever, locking at the user’s preferred position within the 415 mm to 515 mm floor-to-seat range. The chair offers full 360-degree swivel rotation for multi-directional access to desk materials, plus a lockable backrest recline that tilts up to 126 degrees from upright, with adjustable tension control and a dedicated lock for the fully upright position for focused task work. The headrest adjusts 100 mm vertically to match varying user neck heights, and the dual-wheel PU casters roll smoothly across hard floors and low-pile carpet for easy repositioning. This chair is suited for a wide range of work settings, including open office workstations, where its ergonomic support structure accommodates 8 hours of daily task work; home office spaces, where its compact 625 mm width fits standard desk setups with ample seated knee clearance; conference and meeting rooms, where swivel and recline functions support collaborative discussion; administrative and staff work areas, where fixed armrests deliver consistent support for regular desk tasks; and commercial co-working spaces, where its durable mesh and foam construction withstands high-frequency multi-user use. It pairs well with a 2.4 m executive desk for a cohesive, professional setup.
