High-Back Ergonomic Mesh Office Task Chair with Adjustable Headrest and Armrests Specifications

ERG-MESH-TASK-001

代码:MEHGWPV1
获取供应商报价
2026-08-11 15:11人气: 44
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-MESH-TASK-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

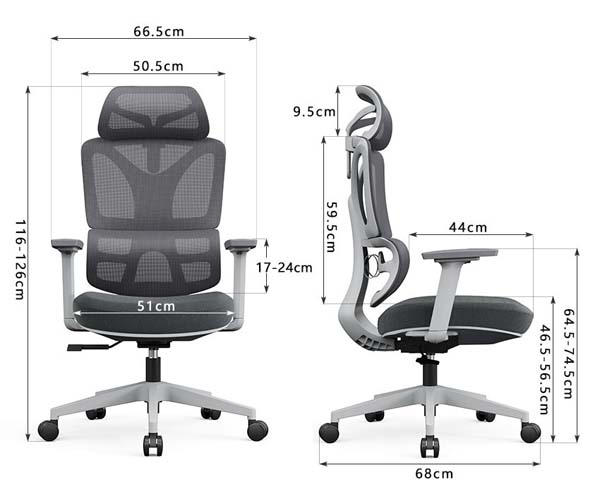

Overall dimensions665 x 680 x 1260 mm
Backrest width505 mm
Backrest height (excluding headrest)595 mm
Headrest height95 mm
Seat width510 mm
Seat depth440 mm
Maximum seat height565 mm
Minimum seat height465 mm
Maximum armrest height above seat240 mm
Five-star base diameter680 mm
Maximum total armrest height from floor745 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity159 kg
Seat foam density50 kg/m³
Seat foam thickness80 mm
Foam rebound rate55%
Back mesh abrasion resistance30000 Martindale cycles
Gas lift cycle durability100000 adjustment cycles
Tilt mechanism cycle durability300000 recline cycles
Net weight range26 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryTensioned nylon-polyester blend mesh
Seat cushionHigh-density polyurethane foam with fabric upholstery
Back frameGlass-fiber reinforced nylon composite
Armrest supportsInjection-molded nylon with height adjustment mechanism
Armrest padsSoft molded polyurethane padding
Five-star baseReinforced nylon composite
Gas lift cylinderSteel with black powder-coated finish
CastersPU-coated swivel casters, 60 mm diameter
Chassis mechanism2.5 mm thick stamped steel
Headrest paddingMolded foam with mesh upholstery
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentStepless gas lift adjustment with 100 mm vertical travel
Headrest adjustment100 mm vertical travel with 60° pivot rotation
Armrest adjustment70 mm vertical height adjustment with 35° rotational adjustment
Tilt recline function30° recline range from 90° upright to 120° reclined position
Tilt lock function1 upright lock position with tension adjustment knob
Lumbar supportContoured segmented static lumbar zone aligned to natural spine curve
Swivel function360° full rotation around central gas lift axis
Mobility functionSmooth rolling on all hard and soft floor surfaces via dual-wheel casters
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open office workstationsSuitable for daily 8-hour seated use with ergonomic support for desk-based staff
Home office and study spacesCompact footprint fits standard home desk setups for remote work and study
Conference and meeting roomsProfessional neutral grey finish and swivel function suit collaborative meeting spaces
Co-working shared workspacesDurable construction and standard adjustment range suit multi-user rotation use
Computer gaming and hobby workstationsAdjustable support works for extended seated sessions during leisure or hobby activities
Administrative and reception workstationsProfessional appearance and mobility suit front-desk and administrative roles
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture safety standardEN 1335:2020
Upholstery fabric durabilityEN 14465:2005
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair performance standardANSI/BIFMA X2017
Static load capacity for five-star base113 kg
Caster rolling durability2000 obstacle cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair safety standardGB/T 22792.1
Formaldehyde emission standardGB 18584
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair safety standard:GB/T 22792.1;
2. Formaldehyde emission standard:GB 18584;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-MESH-TASK-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-MESH-TASK-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-MESH-TASK-001打开导出工具

页面快速操作

发布采购询价

产品描述

The High-Back Ergonomic Mesh Office Task Chair with Adjustable Headrest and Armrests (model ERG-MESH-TASK-001) is an unbranded ergonomic seating solution designed to balance support, durability, and versatile functionality across public and private work environments. It features a clean, professional neutral grey finish, with a contoured high-back structure paired with a streamlined five-star base for a modern, unobtrusive silhouette that blends seamlessly with varied interior design schemes. Built for long-term use, the chair’s backrest uses tensioned nylon-polyester blend breathable mesh stretched over a glass-fiber reinforced nylon composite frame, engineered to resist abrasion across 30000 Martindale cycles. The seat is padded with 80 mm thick, 50 kg/m³ high-density polyurethane foam with a 55% rebound rate, upholstered in durable fabric, and supported by a 2.5 mm stamped steel chassis. Its reinforced nylon composite five-star base is fitted with 60 mm diameter PU-coated swivel casters, connected to a black powder-coated steel gas lift cylinder rated for 100000 adjustment cycles, with a tilt mechanism tested to 300000 recline cycles. Soft molded polyurethane armrest pads mount to height-adjustable injection-molded nylon supports, and a contoured segmented static lumbar zone aligns with the natural spine curve for consistent postural support. The chair delivers full customizable comfort: stepless gas lift adjusts seat height across 100 mm of vertical travel, with a maximum seat height of 565 mm to suit varied desk heights. The headrest offers 100 mm of vertical travel and 60° pivot rotation, while armrests adjust 70 mm vertically and rotate 35° to match individual posture needs. Users can recline 30° from a 90° upright position to a 120° reclined angle, with a single upright lock position and tension adjustment knob to customize resistance, plus full 360° swivel for easy access to surrounding work surfaces. It supports a maximum user weight of 159 kg. This chair is suited for corporate open office workstations for daily 8-hour seated use, compact home office and study spaces, professional conference and meeting rooms, high-traffic co-working shared workspaces, computer gaming and hobby workstations for extended seated sessions, and administrative or reception workstations. For procurement, teams should note each unit ships as one set across two cartons, with a packaged gross weight of 23 kg per set, 40 minute reference assembly time per unit, and a 20GP container load capacity of 135 sets at 85% space utilization. Its neutral aesthetic and durable multi-user design make it a flexible choice for bulk public furniture deployments.
