Mid-Back Black Mesh Ergonomic Office Task Chair with Fixed Armrests Specifications

MBM-FA-650 Mesh Task Chair

代码:MR0ZAAV1
获取供应商报价
2026-08-11 15:25人气: 32
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MBM-FA-650 Mesh Task Chair

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

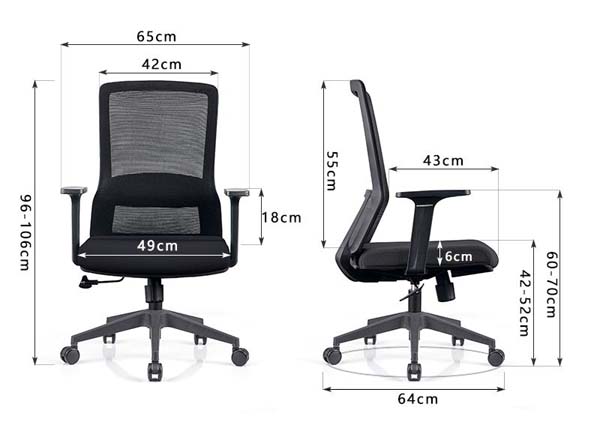

Overall dimensions650 x 640 x 1060 mm
Seat width490 mm
Seat depth430 mm
Seat height adjustment range (max value)520 mm
Seat cushion thickness60 mm
Backrest width420 mm
Backrest height550 mm
Armrest height above seat180 mm
Five-star base tip-to-tip width640 mm
Minimum overall height (fully lowered)960 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight136 kg
Chair net weight12 kg
Tilt lock maximum angle12 degrees
Caster rolling durability cycles40000 cycles
Seat foam density45 kg/m³
Seat foam rebound rate45%
Mesh upholstery abrasion resistance50000 Martindale cycles
Seam stitch pitch8 stitches per inch
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable polyester mesh
Backrest frameReinforced nylon with 15% fiberglass
Seat cushion foamHigh-density molded polyurethane foam
Seat core12 mm thick plywood
ArmrestsFixed black polypropylene with flat top pad
Five-star baseReinforced injection-molded nylon
Casters60mm twin-wheel PA (nylon) casters
Gas liftSteel hydraulic pneumatic cylinder
Seat upholsteryBreathable woven mesh fabric
Mechanism chassis2.5 mm thick steel plate
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100 mm stroke pneumatic adjustment via under-seat lever
360-degree swivelFull rotation enabled by central gas-lift swivel joint
Tilt functionLockable backward tilt with adjustable tension control
MobilitySmooth rolling on hard floors and low-pile carpet via twin casters
Lumbar supportFixed contoured built-in lumbar support in mid-back section
Tilt lockingSingle-position upright lock for focused desk work
Armrest functionFixed-height arm support for forearm resting during typing
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Office workstation useSuitable for standard desk work with 760 mm work surface height
Home office useCompact footprint fits small home study or workspace desks
Conference room seatingFixed armrest design suitable for short to medium duration meetings
Open plan office deploymentDurable construction for high-traffic shared workstation areas
Target user groupSuitable for adults 185 cm in height for ergonomic seated posture
Floor compatibilityUse on hard wood, tile, and low-pile carpeted office floors
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture safety applicabilityEN 1335:2020
Office chair mechanical strength applicabilityEN 1728:2012
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair general purpose applicabilityANSI/BIFMA X2017
Caster durability applicabilityANSI/BIFMA X2017Clause 17
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair strength and durability applicabilityGB/T 3326
Office chair mechanical safety applicabilityGB 28007
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair strength and durability applicability:GB/T 3326;
2. Office chair mechanical safety applicability:GB 28007;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MBM-FA-650 Mesh Task Chair

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MBM-FA-650 Mesh Task Chair

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MBM-FA-650 Mesh Task Chair打开导出工具

页面快速操作

发布采购询价

产品描述

The MBM-FA-650 Mesh Task Chair is an unbranded mid-back ergonomic office task chair designed to support comfortable seated posture across daily work and meeting scenarios. The chair features a streamlined, functional silhouette with a contoured mid-back structure, fixed flat-top armrests, and a five-star rolling base that balances a compact footprint with stable, unrestricted movement. Its clean black finish integrates seamlessly across varied interior design schemes without visual clutter. Constructed for long-term regular use, the chair pairs a breathable polyester mesh backrest with a high-density molded polyurethane foam seat, supported by a 12mm plywood seat core and wrapped in breathable woven mesh fabric. Its frame is built from reinforced nylon blended with 15% fiberglass, matched with fixed black polypropylene armrests and a reinforced injection-molded nylon five-star base. The seat cushion holds a thickness of 60mm with a foam density of 45 kg/m³, delivering consistent support, while 60mm twin-wheel nylon casters, a steel hydraulic pneumatic cylinder, and durable mesh upholstery rated for 50000 Martindale abrasion cycles support extended use in high-turnover settings. Core functional features address core office seating needs: a 100mm stroke pneumatic seat height adjustment controlled via an under-seat lever reaches a maximum seat height of 520mm, paired with full 360-degree swivel from the central gas-lift joint. A built-in contoured lumbar support is integrated into the mid-back section to maintain natural spinal alignment, while the lockable tilt mechanism offers up to 12 degrees of backward recline with adjustable tension control and a single upright lock position for focused desk work. The fixed armrests sit 180mm above the seat to support forearms during typing, and the casters roll smoothly on hard floors including wood and tile, as well as low-pile carpet, with tested caster durability for repeated daily use. The chair supports users up to 136kg, and is calibrated to support ergonomic posture for adults up to 185cm tall. This model fits a broad range of commercial and residential spaces: it works for standard office workstations paired with 760mm height work surfaces, fits compact home studies and small home office desks, serves as practical conference room seating for short to medium duration meetings, and stands up to the demands of high-traffic open-plan shared work areas. Procurement teams and individual buyers should note the chair ships in two cartons per set, with a reference assembly time of 40 minutes per unit, and a packaged gross weight of 23kg per set. For large-scale commercial orders, 135 sets fit in a 20GP container at 85% space utilization, supporting efficient bulk deployment.
