High-Back Ergonomic Mesh Office Chair with Adjustable Headrest and Blue Padded Seat Specifications

MESH-ERG-CHR-BLU-620

代码:N6HJF0V1
获取供应商报价
2026-08-11 20:49人气: 52
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MESH-ERG-CHR-BLU-620

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

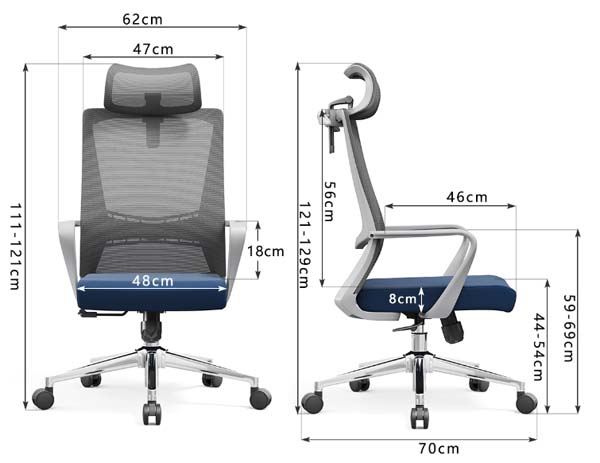

Overall dimensions620 x 700 x 1290 mm
Seat width480 mm
Seat depth460 mm
Seat height adjustment range (floor to seat)540 mm
Seat cushion thickness80 mm
Backrest width470 mm
Backrest height (seat to top of back frame)560 mm
Lumbar support height above seat180 mm
Headrest-included total height adjustment range1290 mm
Backrest-only total height range (no headrest)1210 mm
Five-star base footprint diameter700 mm
Armrest height above seat250 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight20 kg
Recommended static user weight capacity136 kg
Seat height adjustment stroke100 mm
Tilt lock angle15 degrees
Swivel rotation range360 degrees
Five-star base static load rating1000 kg
Gas lift cycle rating100000 cycles
Warranty period5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryTensioned breathable polyester mesh
Seat upholsteryWoven polyester fabric over blue padded surface
Seat core padding45D high-density molded polyurethane foam
Armrest constructionIntegrated PA plastic fixed armrests with matte finish
Seat and back inner frame1.5mm thick steel support frame
Five-star baseChrome-plated steel with polished finish
Caster construction60mm diameter dual-wheel PU casters
Gas lift coverBlack ABS plastic shroud over central lift column
Headrest padding40D polyurethane foam with mesh outer cover
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustmentLever-operated 100mm vertical travel via Class 3 gas lift
Headrest adjustment2D height and angle adjustment for neck support
Tilt and lock mechanism2.5mm steel plate butterfly mechanism with single-position tilt lock
360-degree swivelSmooth full rotation around central gas lift axis
Caster mobilityDual-wheel PU casters suitable for hard floors and low-pile carpet
Fixed armrest supportOne-piece fixed armrests for consistent forearm support
Built-in lumbar supportContoured molded lumbar zone for lower back alignment
Tilt tension adjustmentKnob-controlled tension tuning to match user body weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workstationSuitable for 8 hour daily desk use for office workers and managers
Home office setupCompatible with standard 760 mm height office desks for remote work
Coworking space seatingDurable construction for shared high-traffic work areas
Conference room guest seatingProfessional appearance suitable for meeting room attendee seating
Studio and creative workspaceBreathable mesh back for comfort during extended project work
Commercial reception areaNeutral blue/gray color scheme fits modern professional reception spaces
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable for office chair dimensional and safety requirement evaluation
EN 1335-2:2009Applicable for office chair structural strength and durability testing
EN 1335-3:2009Applicable for office chair structural stability verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable for general-purpose office chair safety and performance testing
Caster rolling durability cycles100000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applicable for office furniture dimensional accuracy and stability testing
GB/T 10357.3-2013Applicable for chair strength and durability mechanical performance testing
GB 18584-2001Applicable for indoor furniture formaldehyde emission limit testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applicable for office furniture dimensional accuracy and stability testing;
2. GB/T 10357.3-2013:Applicable for chair strength and durability mechanical performance testing;
3. GB 18584-2001:Applicable for indoor furniture formaldehyde emission limit testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MESH-ERG-CHR-BLU-620

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MESH-ERG-CHR-BLU-620

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MESH-ERG-CHR-BLU-620打开导出工具

页面快速操作

发布采购询价

产品描述

This high-back ergonomic mesh office chair balances structured support, professional aesthetics, and durable construction for both commercial and residential work environments. Its visual profile features a tall, streamlined mesh back paired with a rich blue padded seat, anchored by a polished chrome five-star base for a polished, modern look suited to professional spaces. The integrated matte PA plastic armrests sit flush with the seat and back frame, while the adjustable headrest sits atop the high back to create a cohesive, uncluttered silhouette that fits neatly under standard desk heights when not in use. The chair’s construction prioritizes long-term durability and seated comfort. The backrest uses tensioned breathable polyester mesh stretched over a 1.5mm thick steel support frame, with a contoured molded lumbar zone positioned to support natural lower back alignment. The seat features a woven polyester fabric cover over a 45D high-density molded polyurethane foam core, with a generous cushion depth for even weight distribution. Armrests are formed as one-piece fixed PA plastic units with a matte finish to provide consistent forearm support, while the base is crafted from polished chrome-plated steel, fitted with 60mm dual-wheel PU casters that move smoothly across hard floors and low-pile carpet. A black ABS plastic shroud covers the central Class 3 gas lift, which connects to a 2.5mm steel plate butterfly tilt mechanism. Core functional features support extended daily use. Pneumatic seat height adjustment operates via a side lever, delivering smooth vertical travel to align with standard desk surfaces. The headrest offers 2D height and angle adjustment to cradle the neck during upright work or reclined breaks, and the tilt mechanism locks at a single reclined position for customized positioning. Users benefit from full 360-degree swivel for easy access to surrounding work surfaces, plus the breathable mesh back that reduces heat buildup during long work sessions. This model is well-suited for a range of settings, including private office workstations for daily 8-hour use, home office setups paired with standard height office desks, high-traffic coworking spaces, conference room guest seating, creative studio workspaces, and modern commercial reception areas. Procurement teams should note the chair ships in two cartons per set, with a standard assembly time per unit, and plan for loading volumes when placing bulk facility orders. Fixed armrests offer consistent support for shared use, and the durable build stands up to regular turnover in public-facing or shared work zones.
