High Back Ergonomic Mesh Office Chair with Adjustable Headrest, White Frame, Blue Padded Seat Specifications

EMOC-WF-6268-130HB

代码:NAE7Y3V1
获取供应商报价
2026-08-11 20:44人气: 73
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EMOC-WF-6268-130HB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

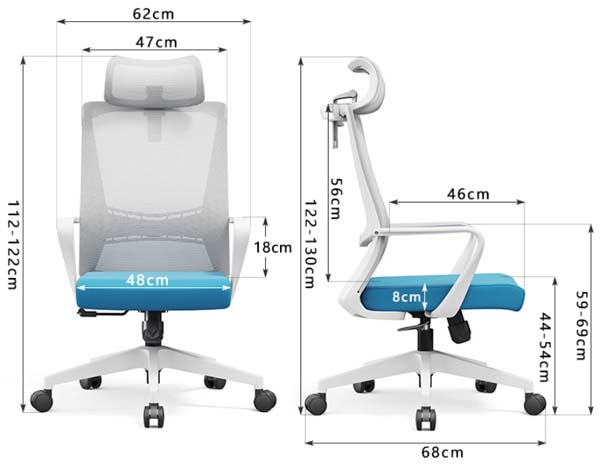

Overall assembled dimensions (max)620 x 680 x 1300 mm
Seat cushion usable width480 mm
Seat cushion usable depth460 mm
Seat cushion thickness80 mm
Seat height adjustment range (floor to seat)540 mm
Backrest height (above seat surface)560 mm
Fixed armrest height above seat180 mm
Total armrest height (floor to arm)690 mm
Headrest width470 mm
Five-star base caster spread diameter680 mm
Adjustable total chair height range (floor to headrest top)1300 mm
Front overall width (outer edge to outer edge)620 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net chair weight22 kg
Maximum recommended user static load159 kg
Seat tilt/recline range135 degrees
Gas lift height adjustment stroke100 mm
Gas lift durability rating100000 cycles
Foam seat density50 kg/m³
Foam rebound rate55%
Seam stitch pitch3 mm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable woven polyester tension mesh
Seat upholstery fabricAbrasion-resistant polyester fabric over foam
Seat core padding50kg/m³ high-density cold-cured polyurethane foam
Structural back and arm frameGlass-fiber reinforced white polypropylene copolymer
Armrest top supportIntegral molded PP with smooth matte non-slip finish
Seat inner support panel12mm thick multi-layer plywood core
Height adjustment gas lift100mm diameter steel Class 3 gas lift with black coating
Tilt mechanism chassis2.5mm thick stamped steel plate with tension adjustment
Five-star swivel base350mm radius glass-fiber reinforced white nylon
Caster wheels60mm diameter black PU tread, nylon hub twin-wheel casters
Frame finishMatte textured white powder-coat equivalent for plastic components
Lumbar support zoneContoured integrated mesh tension lumbar zone
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Swivel function360-degree unrestricted swivel around central gas lift axis
Seat height adjustmentPneumatic lever-controlled 100mm vertical travel, infinite lock
Recline/tilt functionSynchronized back tilt with tension adjustment, single-position lock
Headrest adjustmentHeight and angle adjustable curved headrest for neck support
Mobility featureDual-wheel PU casters suitable for hard and soft flooring
Armrest configurationFixed height closed-loop armrests rigidly mounted to seat/back frame
Back support featureIntegrated contoured lumbar support built into tensioned mesh back
Stability featureFive-point base geometry with 680mm caster spread for anti-tip compliance
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office workstationsSuitable for long-duration desk work with breathable mesh back and ergonomic support
Home office study spacesCompact footprint, neutral white-blue colorway fits residential home decor
Conference room task seatingFixed armrests, professional appearance suitable for meeting room seating
Call center and shared desk environmentsDurable construction, easy-to-clean surfaces support high-frequency shared use
Student dormitory and study areasAffordable ergonomic support, appropriate dimensions for compact study desks
Co-working space hot-deskingUniversal adjustment range, durable casters, and neutral aesthetic suit flexible hot-desk use
Small office executive workstationsHigh-back headrest support provides comfort for full-shift executive desk work
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office work chairs: dimensions and safety requirements
EN 1335-2:2018Office work chairs: safety strength and durability requirements
EN 1335-3:2009Office work chairs: test methods for structural performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs: safety and performance standard
Caster rolling durability rating40000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Office furniture: chair and stool dimension measurement standard
GB/T 10357.3-2013Furniture mechanical test: chair strength and durability
GB 28007-2011Office chair general technical requirements for safety
GB/T 26706-2011Furniture environmental test: volatile organic compound emissions
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Office furniture: chair and stool dimension measurement standard;
2. GB/T 10357.3-2013:Furniture mechanical test: chair strength and durability;
3. GB 28007-2011:Office chair general technical requirements for safety;
4. GB/T 26706-2011:Furniture environmental test: volatile organic compound emissions;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EMOC-WF-6268-130HB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EMOC-WF-6268-130HB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EMOC-WF-6268-130HB打开导出工具

页面快速操作

发布采购询价

产品描述

The EMOC-WF-6268HB high back ergonomic mesh office chair features a streamlined contemporary profile defined by its crisp white structural frame, breathable woven mesh back, and contrasting blue padded seat. Its tall backrest rises 560 mm above the seat surface, paired with a curved height and angle adjustable headrest positioned to cradle the neck, while rigid closed-loop fixed armrests sit 180 mm above the seat for consistent upper extremity support. The white glass-fiber reinforced polypropylene frame and matching white nylon five-star base create a cohesive visual line, with dual-wheel PU casters mounted to each base point for a polished, functional silhouette that avoids bulky, overdesigned detailing. When fully assembled, the chair reaches a maximum dimension of 620 x 680 x 1300 mm, with balanced proportions that avoid overwhelming surrounding work surfaces. Constructed for sustained use, the chair’s backrest uses tensioned breathable woven polyester mesh shaped to deliver integrated contoured lumbar support, eliminating the need for separate adjustable lumbar pads. The seat combines an abrasion-resistant polyester fabric cover with 80 mm thick 50 kg/m³ high-density cold-cured polyurethane foam core, which delivers a 55% rebound rate for resilient, even support during long seated sessions. The seat sits atop a 12 mm multi-layer plywood support panel, connected to the base via a black-coated 100 mm diameter Class 3 steel gas lift rated for 100,000 adjustment cycles, and a 2.5 mm thick stamped steel tilt chassis. The 350 mm radius glass-fiber reinforced white nylon five-star base supports the chair’s 22 kg net weight and a maximum recommended static user load of 159 kg. Functional design prioritizes flexible, intuitive use: the chair offers 360-degree unrestricted swivel, 100 mm of pneumatic lever-controlled height adjustment with infinite position lock to bring seat height to a maximum of 540 mm from the floor, and synchronized back recline with user-controlled tension adjustment, locking at a 135 degree maximum tilt. Dual-wheel PU casters roll smoothly across both hard and soft flooring surfaces, and the fixed closed-loop armrests feature integral molded matte non-slip PP tops for stable arm placement. All exterior surfaces are formulated for easy cleaning to resist buildup from regular shared use. This model is suited to a wide range of work and study settings: open plan office workstations for long-duration desk work, home office studies where its neutral white and blue palette aligns with residential decor, professional conference room task seating, high-traffic call centers and shared desk environments, compact student dormitory study areas, and co-working hot-desking zones where universal adjustment and durable construction support flexible, rotating use. For procurement teams, note that each unit ships in 2 cartons with a total packaged gross weight of 23 kg and total carton volume of 0.26 m³, requiring 40 minutes of assembly time per set. At 85% space utilization, a 20GP shipping container holds 135 sets. This unbranded model offers flexible deployment across multiple facility types without restrictive brand-specific design constraints.
