Reclining High-Back Office Chair with Pull-Out Footrest Specifications

RFOCH-001

代码:QA0XR4V1
获取供应商报价
2026-08-09 16:13人气: 54
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RFOCH-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (upright)700 x 800 x 1250 mm
Seat width700 mm
Seat depth550 mm
Backrest height760 mm
Five-star base diameter700 mm
Seat height adjustment range100 mm
Extended footrest length400 mm
Fixed armrest height from seat220 mm
Caster diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight25 kg
Maximum static load capacity272 kg
Recommended user height range1900 mm
Base static load rating1136 kg
Gas lift fatigue cycle rating60000 cycles
Recommended maximum daily use duration8 hours
Maximum suitable user height1900 mm
Caster rolling durability60000 cycles
Recline mechanism fatigue rating40000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.2mm thick faux leather, abrasion-resistant finish
Cushion fill50mm thick high-density molded foam, 45kg/m³ density
Headrest fill30mm thick soft foam with cotton blend wrap
Armrest constructionSteel inner frame with black PP padded surface, fixed to seat frame
Five-star base1.5mm thick chrome-plated steel, polished finish
Extendable footrestReinforced PP slatted platform with steel support rails
Caster material50mm diameter PU soft-tread casters, quiet rolling
Internal seat frame20mm diameter steel tube frame, powder-coated black
Seat cushion fill100mm thick 45kg/m³ high-density molded foam, 60% rebound rate
Backrest fill50mm thick 40kg/m³ medium-density foam with contoured lumbar support
Caster construction50mm diameter PU soft-tread dual-wheel casters, chrome steel stems
Chassis mechanism3mm thick steel tilt chassis with black electrophoretic finish
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentClass 4 gas lift, 100mm travel, operated by right-side lever
Backrest recline160° maximum tilt, 3-position locking mechanism
360-degree swivelFull rotation enabled by central swivel joint at gas lift
Pull-out footrest operationManual slide-out extension, locks in deployed position, retracts under seat
Tilt tension adjustmentKnob under seat adjusts backrest tilt resistance to user weight
Caster mobilityDual-wheel casters roll freely on hard tile and carpeted floors
Lumbar supportFixed contoured lumbar zone positioned 200mm above seat surface
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Packaging noteKnocked-down assembly, includes hardware kit and instruction manual
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workspaceSuitable for executive and staff desks, supports upright work and reclined rest
Home office studyAppropriate for home workspaces, multi-position comfort for extended use
Open-plan office breakout areasUsable in quiet rest zones for employees taking short breaks
Reception meeting roomsSuitable for visitor and staff seating in informal meeting spaces
Color options availableBlack, brown, gray faux leather upholstery options
Private executive officesSupports upright desk work and reclined rest breaks for long-hour staff
Open-plan office quiet zonesSuitable for short employee rest breaks in dedicated relaxation areas
Reception waiting areasDelivers professional appearance and comfort for visitor and staff seating
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office furniture - Office work chairs - Safety requirements, applicable to structural safety
EN 1335-2:2018Office work chairs - Strength and durability test methods
EN 1022:2018Domestic furniture - Seating - Determination of stability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Standard for office chairs, applicable to general-purpose office seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable to structural strength
GB/T 3325-2017Test methods for metal furniture, applicable to stability and load testing
GB 18584-2001Limit of harmful substances in wooden furniture, applicable if composite components used
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to structural strength;
2. GB/T 3325-2017:Test methods for metal furniture, applicable to stability and load testing;
3. GB 18584-2001:Limit of harmful substances in wooden furniture, applicable if composite components used;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RFOCH-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RFOCH-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RFOCH-001打开导出工具

页面快速操作

发布采购询价

产品描述

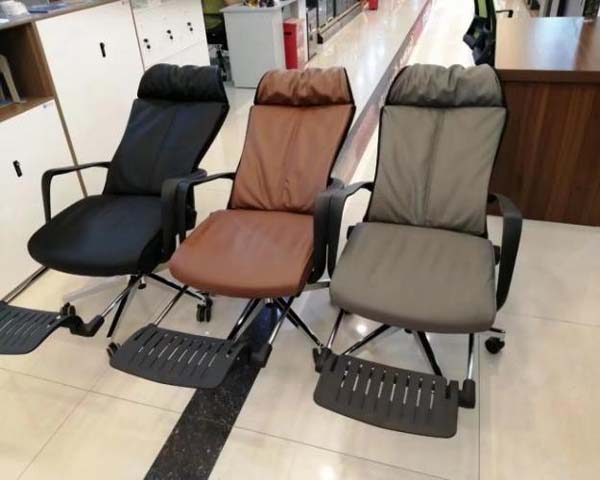

The Reclining High-Back Office Chair with Pull-Out Footrest (model RFOCH-001, unbranded) presents a streamlined, ergonomic profile designed for blended work and rest use. Its upright configuration measures 700 x 800 x 1250 mm, with a 700 mm wide seat, 550 mm deep seat, 760 mm tall high back, and a 700 mm diameter polished chrome five-star base for stable visual and structural balance. Fixed armrests sit 220 mm above the seat, aligning with standard desk heights, while the pull-out footrest tucks flush under the seat when retracted to preserve a neat, unobtrusive footprint. Three upholstery color options—black, brown, and gray—allow coordination with varied interior palettes. The chair is built for regular daily use, with a 1.2mm thick abrasion-resistant faux leather cover over layered foam cushioning: the seat uses 100mm thick 45kg/m³ high-density molded foam with 60% rebound rate, while the headrest features 30mm thick soft foam wrapped in a cotton blend for targeted softness. Armrests use a steel inner frame topped with black padded PP caps, the extendable footrest is a reinforced PP slatted platform supported by steel rails, and soft 50mm PU dual-wheel casters enable quiet rolling across hard tile and carpeted floors. The internal seat frame is constructed from 20mm diameter powder-coated black steel tube, paired with a 1.5mm thick chrome-plated steel base, Class 4 gas lift, and central swivel joint for long-term durability. Core functional features support flexible use: a right-side lever controls 100mm of seat height adjustment, the backrest reclines to 160 degrees with a 3-position locking mechanism, and an under-seat knob adjusts tilt tension to match user weight. The manual slide-out footrest locks securely when deployed for reclined rest, 360-degree swivel allows easy repositioning, and a fixed contoured lumbar zone 200mm above the seat delivers consistent lower back support. The chair supports a maximum static load of 272 kg, accommodates users up to 1900 mm tall, and is rated for up to 8 hours of daily use. This chair is well-suited for private executive and staff office workspaces, home office studies, open-plan office breakout rest zones, and informal reception meeting areas, supporting both upright focused work and reclined short breaks. Procurement teams should note the chair ships knocked down in 2 cartons per set, with included hardware and instruction manual supporting a 40-minute per set assembly time. Packaged sets have a gross weight of 23 kg and total carton volume of 0.26 cubic meters, with no custom branding or specialized finish options noted.
