Pink Mesh High-Back Ergonomic Office Chair with Adjustable Headrest Specifications

ERG-PNK-WHT-740MESH

代码:R9S8PJV1
获取供应商报价
2026-08-10 18:36人气: 47
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-PNK-WHT-740MESH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

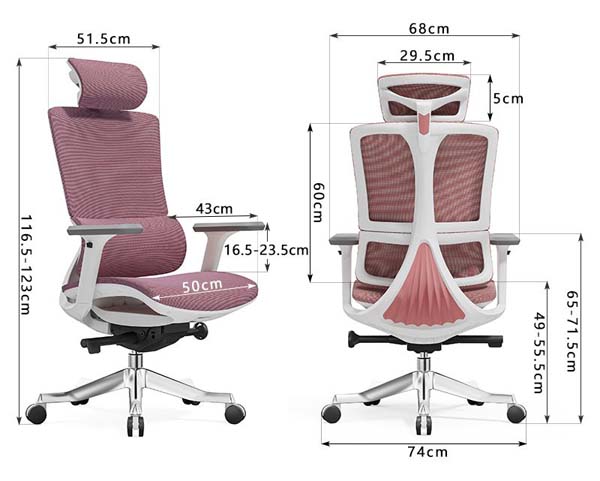

Overall assembled dimensions680 x 680 x 1230 mm
Seat depth500 mm
Backrest frame height600 mm
Maximum seat height from floor555 mm
Maximum armrest height above seat235 mm
Five-star base wheel span diameter740 mm
Headrest width295 mm
Headrest vertical travel50 mm
Armrest forward extension from seat front430 mm
Backrest width515 mm
Minimum armrest height from floor650 mm
Maximum seat height to back top715 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight18 kg
Maximum recommended user weight150 kg
Five-star base static load rating1136 kg
Caster rolling durability300000 cycles
Tilt mechanism cycle durability300000 cycles
Mesh fabric abrasion resistance50000 Martindale cycles
Gas lift safety load rating150 kg
Seat cushion foam density45 kg/m³
Foam rebound rate55%
Limited warranty period5 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest and seat upholsteryBreathable woven polyester mesh
Back support frameGlass-fiber reinforced white PP plastic
Seat cushion core50mm thick high-density molded injection foam
Armrest pads15mm thick PU padded surfaces on height-adjustable supports
Five-star base10mm thick polished die-cast aluminum alloy
Casters50mm diameter dual-wheel PU soft tread casters
Height adjustment component50mm diameter Class 3 steel gas lift with chrome finish
Tilt mechanism chassis3mm thick stamped steel synchro-tilt mechanism
Internal seat support plate12mm thick curved plywood with laminated reinforcement
Frame connection hardwareZinc-plated steel bolts and adjustment brackets
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100mm vertical travel via gas lift lever under right seat side
Headrest adjustment50mm vertical height travel plus 15° tilt adjustment
Armrest adjustment70mm vertical height adjustment to match desk surface height
Backrest recline120° maximum backward tilt with 3-position tilt lock
Lumbar supportFlexible Y-frame dynamic lumbar support with 50mm depth yield
Swivel function360° unrestricted rotation around central gas lift axis
Tilt tension controlAdjustable resistance knob to match user body weight
Mobility functionSmooth-rolling casters suitable for hard floors and low-pile carpet
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Home office workspaceSuits 760 mm standard height desks for daily remote work
Commercial open office workstationsDesigned for 8+ hours daily seated task work for office staff
Conference and meeting roomsSwivel and tilt function supports collaborative discussion settings
Student study spacesAdjustable components fit teen and adult users for long study sessions
Creative studio work areasPink/white color scheme fits modern light-toned studio decor
Executive private officesHigh-back design provides upper back and neck support for managers
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety requirementsEN 1335:2018
Office chair dimensional stabilityEN 1335:2020
Office furniture caster performanceEN 12529:2021
Furniture fire resistanceEN 1021:2014
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

General purpose office chairs standardANSI/BIFMA X2017
Office chair base load testANSI/BIFMA X5.1 Test 5
Caster durability testANSI/BIFMA X5.1 Test 12
Gas lift performance testANSI/BIFMA X5.1 Test 7
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair stability testGB/T 10357.2
Office chair strength and durabilityGB/T 10357.3
Office chair gas lift safetyGB/T 26021
Furniture hazardous material limitGB 18584
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair stability test:GB/T 10357.2;
2. Office chair strength and durability:GB/T 10357.3;
3. Office chair gas lift safety:GB/T 26021;
4. Furniture hazardous material limit:GB 18584;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-PNK-WHT-740MESH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-PNK-WHT-740MESH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-PNK-WHT-740MESH打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded ergonomic office chair, model ERG-PNK-WHT-740MESH, features a coordinated pink and white color scheme with a high-back profile and polished metallic base, delivering a modern, approachable aesthetic suited to light-toned interior schemes. Its form integrates a tall contoured backrest, adjustable headrest, padded armrests, and evenly spaced five-star base layout that balances stable support with smooth movement across floor surfaces. Construction combines durable, purpose-selected materials across every component: the backrest and seat use breathable woven polyester mesh stretched over a glass-fiber reinforced white PP plastic frame, paired with a 50mm thick high-density molded injection foam seat cushion set atop a laminated reinforced curved plywood support plate. The base is formed from thick polished die-cast aluminum alloy, fitted with dual-wheel PU soft tread casters, and connected to the seat via a chrome-finished Class 3 steel gas lift and stamped steel synchro-tilt mechanism chassis. Armrests feature padded PU surfaces mounted on height-adjustable supports. Practical adjustment functions support customized, long-duration seated comfort: users can adjust seat height via a right-side lever, reposition the headrest vertically and through a tilt range, raise or lower armrests to match desk surfaces, lock the backrest at three positions across its maximum recline range, and tune tilt tension to align with individual body weight. A flexible Y-frame dynamic lumbar support yields with user movement, while 360-degree swivel enables easy reorientation during work. The chair supports a maximum recommended user weight aligned with its gas lift safety rating. This model fits a wide range of spaces, including home office setups paired with standard height desks for remote work, commercial open office workstations designed for full-shift seated task work, conference rooms where swivel and tilt support collaborative discussion, student study areas serving teen and adult users, creative studios with light modern decor, and executive private offices where high-back support for the upper back and neck is a priority. Procurement teams should note that each unit ships across two cartons, requires assembly on receipt, and loads efficiently for bulk shipment to support large outfitting projects. The soft-tread casters are suited to hard floor surfaces common in most commercial and residential workspaces, and the chair’s abrasion-resistant mesh upholstery holds up to regular daily use.
