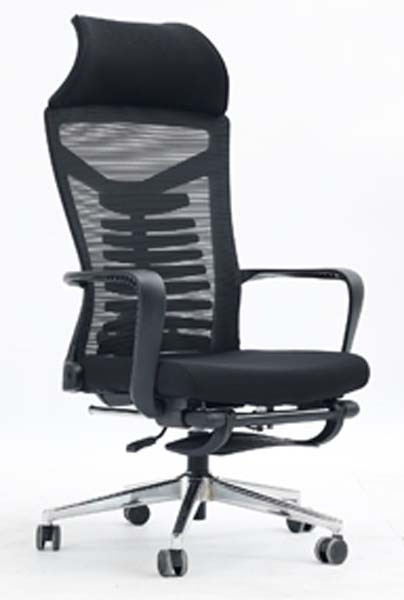

High Back Black Mesh Ergonomic Executive Office Chair with Headrest and Chrome Five-Star Base Specifications

HB-MESH-EXEC-01

代码:RW49T6V1
获取供应商报价
2026-08-09 15:55人气: 61
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

HB-MESH-EXEC-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (W x D x H)660 x 700 x 1320 mm
Adjustable seat height range540 mm
Seat cushion size (W x D)500 x 480 mm
Seat foam thickness86 mm
Backrest height (seat to headrest top)820 mm
Headrest dimensions (W x H)320 x 180 mm
Fixed armrest height (above seat)220 mm
Five-star base diameter350 mm
Caster diameter50 mm
Lumbar support zone height280 mm
Backrest mesh panel thickness3 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight136 kg
Net weight17 kg
Five-star base static load capacity1136 kg
Caster rolling durability300000 cycles
Applicable user count1 person
Backrest recline maximum angle130 degrees
Seat swivel range360 degrees
Warranty period5 years
Net chair weight17 kg
Seat cushion dynamic load durability120000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest panelTensioned black polyester mesh with PP internal support ribs
Seat cushion core35# high-density molded polyurethane foam
Seat upholsteryBlack woven polyester fabric over foam, water-resistant surface
ArmrestsFixed PA (nylon) loop armrests with padded top contact surfaces
Five-star basePolished chrome-plated 2.5mm thick steel five-spoke base
Gas lift cylinderClass 3 BIFMA/SGS certified steel pneumatic gas lift, 50mm diameter, 130mm stroke
Chair mechanism2.5mm thick steel butterfly tilt chassis with tension adjustment
CastersBlack nylon dual-wheel non-marking swivel casters
Internal seat frame12mm thick plywood support board under seat cushion
Frame trim componentsBlack injection-molded PP plastic backrest frame and edge trim
Chair tilt mechanism2.5mm thick steel butterfly tilt chassis with tension adjustment knob
Headrest padding25kg/m³ density polyurethane foam with fabric upholstery
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustmentUp/down lever control under seat, 130mm lift travel to match 760 mm desk heights
Backrest tilt and lock functionLockable recline up to 130 degrees with adjustable tilt tension knob
360-degree swivel rotationFull rotation around vertical axis enabled by central swivel joint
Integrated segmented lumbar supportFixed horizontal rib structure providing contoured lower back pressure relief
Padded fixed headrest supportContoured padded headrest providing static neck support for upright and reclined postures
Fixed padded armrest supportCurved loop armrests providing static elbow support during typing and seated tasks
Rolling mobility functionDual-wheel casters enabling smooth movement across hard floors and low-pile carpet
Tilt tension adjustmentKnob control to set recline resistance matching user body weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office workstation useSuitable for staff and executive desks with 760 mm work surface height
Private executive/manager office useHigh-back profile provides back and neck support for long duration seated work
Home office workspace useCompact footprint fits residential study and home work areas without excessive space use
Conference meeting room useProfessional appearance suitable for meeting rooms and collaborative workspaces
Recommended floor typesSuitable for use on hard wood, tile, laminate, and low-pile carpeted floors
Target user groupAdult office workers requiring lumbar and neck support for 8 hour daily seated shifts
Recommended complementary furniturePair with 760 mm height ergonomic office desks, monitor arms and keyboard trays for optimal posture
Recommended complementary setupPair with 760mm height ergonomic desks, monitor arms and keyboard trays
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office furniture - Office work chairs - Part 1: Dimensions, safety requirements
EN 1335-2:2018Office furniture - Office work chairs - Part 2: Safety performance requirements
EN 1335-3:2009Office furniture - Office work chairs - Part 3: Test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Standard for general purpose office chairs - structural, durability and stability requirements
ANSI/BIFMA X5.11-2015Standard for large occupant office chairs up to 159kg load
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Office furniture chair dimensional, stability and strength testing for general office use
GB/T 39222-2020Ergonomic performance evaluation requirements for office chairs
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Office furniture chair dimensional, stability and strength testing for general office use;
2. GB/T 39222-2020:Ergonomic performance evaluation requirements for office chairs;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · HB-MESH-EXEC-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · HB-MESH-EXEC-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · HB-MESH-EXEC-01打开导出工具

页面快速操作

发布采购询价

产品描述

This ergonomic executive office chair presents a polished, professional silhouette defined by its tall high-back form, streamlined black mesh upper structure, and reflective chrome five-star base, creating a balanced look that aligns with both formal and casual work environments. The layout integrates a contoured headrest at the upper frame, fixed loop armrests positioned at a consistent height above the seat, and dual-wheel casters mounted to each point of the five-star base for a stable, well-proportioned footprint suited to standard desk configurations. Construction pairs purpose-selected materials for durability and comfort: the backrest uses tensioned black polyester mesh supported by internal PP ribs, paired with integrated segmented lumbar structure to cradle the lower back. The seat features a core of high-density molded polyurethane foam wrapped in water-resistant black woven polyester fabric, set atop a sturdy internal plywood support board. The frame relies on a thick steel five-spoke base finished in polished chrome, connected to a steel butterfly tilt chassis and certified Class 3 gas lift for reliable height adjustment. Fixed PA armrests include padded contact surfaces for elbow comfort, while black nylon dual-wheel non-marking casters support smooth movement across approved floor surfaces. Functional features support extended seated work: pneumatic seat height adjustment operates via an under-seat lever to align with standard desk heights, and the backrest offers lockable recline with adjustable tension control for personalized positioning. The chair supports full 360-degree swivel, the contoured padded headrest delivers static neck support for both upright and reclined postures, and the casters move smoothly across hard floors and low-pile carpet. Its recommended maximum user weight supports regular daily use by adult office workers. This chair fits a broad range of settings, including open plan office workstations, private executive and manager offices, residential home office studies, and formal conference rooms. For procurement, note that each unit ships across two cartons, with a typical assembly time per set, and that bulk container loading is calculated at 85% space utilization for planning purposes. It is designed for single-user operation, and works best on hard wood, tile, laminate, or low-pile carpeted floors.
