首页 > 首页 > 办公桌椅家具 > 办公椅系列 > 人体工学办公椅 > EMC-670ADJ Mesh Task Chair

High-back Ergonomic Mesh Office Chair with Adjustable Headrest and Armrests Specifications

EMC-670ADJ Mesh Task Chair

代码:W066Y1V1
获取供应商报价
2026-08-11 16:40人气: 43
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EMC-670ADJ Mesh Task Chair

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

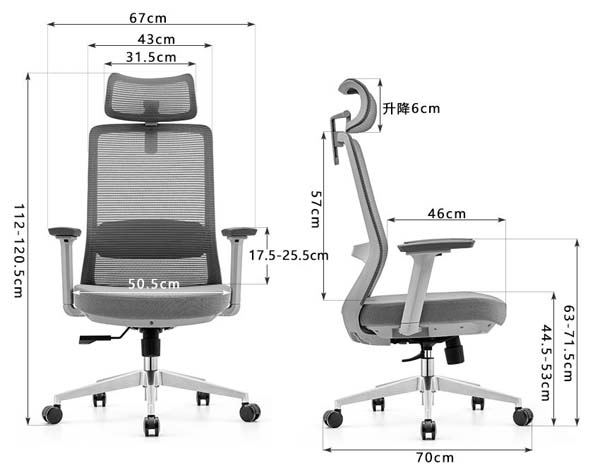

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (W x D x H)670 x 700 x 1205 mm
Seat width505 mm
Seat depth460 mm
Backrest height (above seat)570 mm
Headrest width315 mm
Backrest frame width430 mm
Seat height adjustment range (floor to seat)530 mm
Armrest height adjustment (above seat)80 mm
Headrest vertical lift travel60 mm
Five-star base radius (center to caster)350 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended static user load capacity150 kg
Seat foam density65 kg/m³
Seat foam rebound rate40 %
Mesh upholstery abrasion resistance30000 Martindale cycles
Five-star base static load rating1360 kg
Caster rolling durability120000 cycles
Recline mechanism cycle durability120000 tilt cycles
Net weight (assembled)22 kg
Gas lift class ratingClass 3
Warranty period5 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest and headrest upholsteryBreathable woven polyester-nylon blend mesh
Seat cushion coreMolded high-resilience polyurethane foam
Seat support board12 mm thick molded plywood
Back frame and armrest supportsReinforced glass-fiber nylon polymer
Armrest contact padsSoft polyurethane (PU) padded surface
Height adjustment gas liftChrome-plated precision steel tube
Five-star baseNylon-reinforced polymer with polished finish
CastersDual-wheel hard/soft floor polyurethane casters
Tilt mechanism plate3 mm thick stamped steel
Seam pitch for upholstery edges8 mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustmentPneumatic gas lift with 85 mm vertical travel
Headrest adjustment60 mm vertical height adjustment with pivot angle tilt
Armrest adjustment80 mm vertical height adjustment for arm support
Backrest recline functionSynchronous tilt with 120° maximum recline and lock
Lumbar supportIntegrated contoured curved lumbar pad built into back mesh
Swivel function360° full rotation around gas lift axis
Mobility functionSmooth rolling on dual-wheel casters for hard and carpeted floors
Waterfall seat edge designContoured front seat edge to reduce leg pressure
Recline tension adjustmentRotary knob to adjust tilt resistance for user weight
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workspaceFor full-time office staff needing 8+ hour ergonomic seating support
Open-plan workstation areaRolling swivel design supports easy movement between adjacent work points
Home office study spaceAdjustable height and support fits varied user heights for home use
Conference meeting roomBreathable mesh maintains comfort during long-duration meetings
IT and desk-based task workLumbar support and adjustable armrests reduce strain during computer work
Commercial co-working spaceDurable commercial-grade construction supports high-frequency multi-user use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applicable European standard for office chair dimensional safety requirements
EN 1335-2:2018Applicable European standard for office chair strength, durability and safety
EN 1335-3:2009Applicable European standard for office chair test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applicable North American standard for office chair general performance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applicable standard for office furniture desk/chair dimension measurement and tolerance
GB/T 10357.3-2013Applicable test standard for chair strength and durability evaluation
GB 18584-2001Applicable indoor furniture formaldehyde emission limit for interior components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applicable standard for office furniture desk/chair dimension measurement and tolerance;
2. GB/T 10357.3-2013:Applicable test standard for chair strength and durability evaluation;
3. GB 18584-2001:Applicable indoor furniture formaldehyde emission limit for interior components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EMC-670ADJ Mesh Task Chair

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EMC-670ADJ Mesh Task Chair

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EMC-670ADJ Mesh Task Chair打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG EMC-670ADJ Mesh Task Chair is a high-back ergonomic seating solution engineered to balance comfort, durability, and functional flexibility for daily use. Its streamlined profile features a 570 mm tall contoured backrest paired with a 315 mm wide adjustable headrest, supported by a polished nylon-reinforced polymer five-star base for a clean, professional aesthetic suited to modern work environments. All adjustment controls are positioned for intuitive access, with the contoured lumbar pad integrated directly into the back mesh to deliver consistent lower back support without protruding hardware that disrupts the chair’s sleek form. Built for long-term commercial and residential use, the chair’s backrest and headrest are upholstered in breathable woven polyester-nylon blend mesh, rated for 30000 Martindale abrasion cycles to resist wear from regular use. The seat cushion uses molded high-resilience polyurethane foam with a density of 65 kg/m³ and 40% rebound rate, mounted on a 12 mm thick molded plywood support board for stable weight distribution. Structural components include reinforced glass-fiber nylon polymer back frames and armrest supports, a chrome-plated precision steel tube gas lift, a 3 mm thick stamped steel tilt mechanism plate, and dual-wheel polyurethane casters designed to roll smoothly across both hard flooring and carpet. Key performance ratings include a 150 kg recommended static user load capacity, 1360 kg five-star base static load rating, 120000 cycles of caster rolling durability, and 120000 tilt cycles for the recline mechanism. Functional features are tailored to support varied working postures: pneumatic seat height adjustment delivers 85 mm of vertical travel to a maximum floor-to-seat height of 530 mm, the headrest offers 60 mm of height adjustment plus pivot tilt, and armrests adjust 80 mm vertically to match desk and user height. The synchronous tilt mechanism allows a 120° maximum recline with lock functionality, while 360° swivel and smooth-rolling casters enable easy repositioning. The chair suits private offices for full-time staff requiring 8+ hours of seating support, open-plan workstations for quick movement between adjacent work points, home offices for shared use across different household members, conference rooms for extended meeting comfort, desk-based IT and task work settings to reduce posture-related strain, and high-traffic co-working spaces where multi-user durability is critical. For procurement planning, each unit ships in 2 cartons with a total packaged gross weight of 23 kg, requires 40 minutes of assembly per set, and 135 sets fit a 20GP container at 85% space utilization, supporting efficient bulk ordering for commercial fit-outs.
