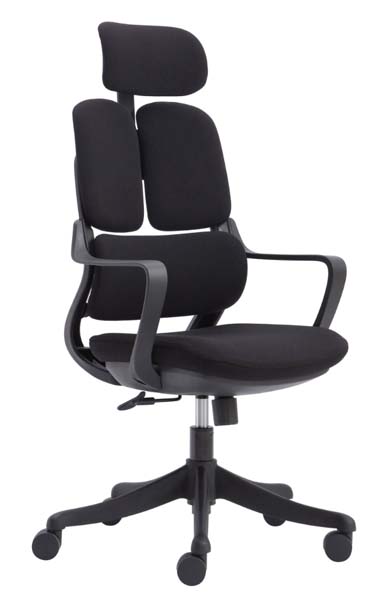

Black High-Back Ergonomic Office Chair with Dual Split Backrest and Headrest Specifications

EOCH-DB670-BLK

代码:W9KD4LV1
获取供应商报价
2026-08-09 14:52人气: 49
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EOCH-DB670-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions670 x 670 x 1360 mm
Seat height adjustment range530 mm
Seat cushion width510 mm
Seat cushion depth500 mm
Backrest total height700 mm
Headrest dimensions320 x 180 mm
Five-star base diameter350 mm
Caster diameter60 mm
Armrest height above seat220 mm
Seat under-clearance (lowest position)120 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight18 kg
Maximum recommended user weight181 kg
Seat foam density50 kg/m³
Seat foam rebound rate45%
Cushion padding thickness80 mm
Backrest padding thickness50 mm
Caster rolling durability100000 cycles
Warranty period5 years
Net product weight18 kg
Maximum recommended static user load181 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBlack woven polyester fabric, 0.8mm thickness
Seat core structure12mm thick plywood base with high-density foam padding
Back frame structureBlack glass-fiber reinforced nylon frame
Armrest constructionIntegrated fixed nylon armrests with curved support design
Height adjustment cylinderChrome-plated steel Class 4 gas lift
Five-star baseMatte black injection-molded nylon, 3mm wall thickness
Rolling castersBlack non-marking nylon dual-wheel casters
Tilt mechanism2.5mm thick steel plate swivel tilt mechanism
Seam stitchingPolyester thread with 8mm stitch pitch
Headrest support postBlack steel height-adjustment post
Dual back frame structureBlack glass-fiber reinforced nylon structural frame supporting independent split pads
Fixed armrest constructionIntegrated loop-shaped glass-fiber reinforced nylon armrests with smooth matte finish
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull 360° horizontal rotation enabled by central swivel joint
Pneumatic seat height adjustment100mm vertical adjustment via under-seat lever for desk alignment
Lockable backrest recline3-position tilt lock with adjustable tension for upright or reclined postures
Dual split back supportIndependent left/right padded back panels conform to spinal movement
Adjustable headrest supportHeight-adjustable padded headrest supports cervical spine during rest
Integrated lumbar support padFixed contoured lower back pad maintains natural lumbar curve
Fixed curved armrestsIntegrated loop armrests provide stable forearm support at desk height
Smooth rolling mobility5 dual-wheel casters enable low-effort movement on hard and carpet floors
Tilt tension adjustmentTension knob adjusts recline resistance to match user body weight
Gas lift stroke100 mm
Recline maximum angle125°
Height-adjustable headrest60mm vertical travel padded headrest adjusts to support cervical spine during reclined rest
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open office workstationsProvides 8+ hour seated support for daily desk-based administrative and knowledge work
Home office workspacesSuits remote work setups with adjustable height for standard home desks
Manager private officesHigh-back ergonomic support suitable for executive desk work and meetings
Coworking space seatingDurable construction supports high-frequency multi-user daily use
Meeting and conference roomsSwivel and recline functions support long meetings and collaborative work
Computer and study desksAdjustable height and back support suit extended study and computer use
Manager private executive officesHigh-back profile and dual lumbar support suit extended executive desk work and small in-office meetings
Shared coworking spacesCommercial-grade durability supports high-frequency multi-user daily rotation between different workers
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic design requirements
EN 1335-2:2018Applies to strength, durability and stability performance requirements
EN 1335-3:2020Applies to test methods for office chair structural performance verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and durability testing standards
BIFMA X5.1 Test 5Applies to five-star base static load verification of 1136kg minimum
Base static load rating1136 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional stability and strength testing requirements
GB/T 10357.3-2013Applies to mechanical performance test methods for seating furniture
GB 18584-2001Applies to formaldehyde emission limits for wooden furniture components
GB/T 24821-2009Applies to office chair caster and base durability requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional stability and strength testing requirements;
2. GB/T 10357.3-2013:Applies to mechanical performance test methods for seating furniture;
3. GB 18584-2001:Applies to formaldehyde emission limits for wooden furniture components;
4. GB/T 24821-2009:Applies to office chair caster and base durability requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EOCH-DB670-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EOCH-DB670-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EOCH-DB670-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded Black High-Back Ergonomic Office Chair, model EOCH-DB670-BLK, presents a streamlined, professional silhouette finished in matte black across all components, designed to balance understated office aesthetics and targeted postural support. Its structured layout pairs a 700mm tall dual split backrest with a contoured fixed lumbar pad, an adjustable padded headrest, and integrated curved loop armrests, all mounted to a central swivel joint connected to a five-star base fitted with smooth rolling casters. The seat cushion measures 510mm wide and 500mm deep, paired with an 80mm thick high-density foam core set on a 12mm plywood base, while backrest panels carry 50mm thick padding for consistent pressure distribution. All fabric surfaces use 0.8mm thick black woven polyester upholstery, stitched with durable polyester thread at an 8mm stitch pitch. Structural components include a glass-fiber reinforced nylon back frame, 3mm wall thickness matte nylon five-star base, chrome-plated Class 4 steel gas lift, 2.5mm steel plate tilt mechanism, and non-marking nylon dual-wheel casters engineered for 100,000 rolling cycles. The chair supports full 360-degree horizontal swivel, 100mm pneumatic seat height adjustment set to a maximum 530mm seat height, 3-position lockable backrest recline with adjustable tension, height-adjustable headrest for cervical support, and independent split back panels that flex to match natural spinal movement. The fixed integrated armrests deliver stable forearm support aligned to standard desk heights, and the 50 kg/m³ seat foam with 45% rebound rate delivers resilient cushioning for extended seated sessions. It is rated to support a maximum user weight of 181kg, with a net weight of 18kg. This chair is suited for a range of work and study settings, including corporate open office workstations, home office workspaces, private manager offices, coworking spaces, meeting and conference rooms, and home study or computer desks, where it delivers reliable support for 8+ hours of daily desk-based work, meetings, remote work, or study. For procurement, note that each unit ships in 2 cartons with a total packaged gross weight of 23kg and 0.26 m³ total carton volume, requires 40 minutes of assembly per set, and fits 135 units per 20GP container at 85% space utilization. The fixed armrest and fixed lumbar support design should be evaluated against user needs for adjustable arm positioning before bulk purchase, and its consistent black finish coordinates with most standard office interior palettes.
