High Back Adjustable Headrest Mesh Ergonomic Office Chair with Fixed Armrests Specifications

MESH-OFF-CHAIR-680HB-FA

代码:YKC4UMV1
获取供应商报价
2026-08-11 19:51人气: 73
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MESH-OFF-CHAIR-680HB-FA

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

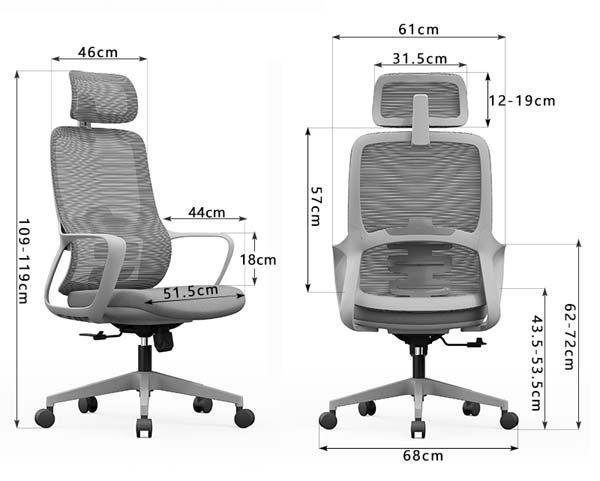

Overall dimensions680 x 610 x 1190 mm
Seat height adjustment range upper value720 mm
Seat depth515 mm
Backrest height570 mm
Headrest width315 mm
Headrest height adjustment travel upper value190 mm
Fixed armrest height above seat180 mm
Five-star base leg spread680 mm
Seat usable width upper value440 mm
Minimum knee clearance under seat535 mm
Headrest side view width460 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Maximum recommended user weight150 kg
Five-star base static load capacity1000 kg
Seat cushion foam density45 kg/m³
Seat foam thickness80 mm
Backrest mesh abrasion resistance50000 cycles
Caster rolling durability100000 cycles
Gas lift cycle durability100000 cycles
Net product weight19 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest constructionElastic polyester breathable mesh over grey PP+fiberglass frame
Seat cushion paddingHigh-density molded polyurethane foam with woven fabric upholstery
Armrest constructionFixed loop-style polypropylene armrests integrated with back frame
Headrest constructionBreathable mesh cushion on rigid PP support bracket
Lumbar supportContoured molded PP lumbar support integrated into back frame
Five-star baseInjection-molded nylon five-prong caster base
Gas lift cylinderBlack powder-coated Class 3 steel gas lift with 85mm outer diameter
Casters60mm diameter black nylon dual-wheel swivel casters
Seat mechanism2mm thick steel butterfly tilt and lock chassis
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment360° swivel height adjustment via right-side lever, 285mm total travel
Headrest adjustmentVertical height adjustment up to 190mm with fixed angle positioning
Backrest recline90° to 120° tilt range with single-position lock via chassis lever
Base swivel function360° full rotation around central gas lift axis
Mobility functionSmooth dual-wheel casters for rolling on hard and carpeted floors
Lumbar support functionFixed contour mid-back lumbar support aligned to seated spine curve
Tilt tension controlRotary tension knob under seat to adjust recline resistance
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open office workstationsSuitable for 8-hour daily seated work for staff at standard 760 mm desks
Home office workspacesFits compact home work areas with 680mm narrow base footprint for small rooms
Conference and meeting roomsSwivel and mobility design supports easy movement during collaborative discussion
General office administrative useFixed armrests and ergonomic lumbar support suit general seated administrative tasks
Height-compatible user rangeFits users 185 cm tall with adjustable seat and headrest travel
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety standardEN 1335:2020
Office chair stabilityEN 1728:2012
Upholstery abrasion resistanceEN 14465:2007
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

General office chair standardANSI/BIFMA X2017
Caster performance standardANSI/BIFMA X5.1 Caster Test
Gas lift safety standardANSI/BIFMA X5.1 Gas Lift Test
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

General office chair safetyGB/T 3326
Formaldehyde emission limitGB 18584
Upholstered furniture durabilityGB/T 26393
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. General office chair safety:GB/T 3326;
2. Formaldehyde emission limit:GB 18584;
3. Upholstered furniture durability:GB/T 26393;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MESH-OFF-CHAIR-680HB-FA

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MESH-OFF-CHAIR-680HB-FA

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MESH-OFF-CHAIR-680HB-FA打开导出工具

页面快速操作

发布采购询价

产品描述

The High Back Adjustable Headrest Mesh Ergonomic Office Chair with Fixed Armrests is a structured, functional unbranded seating solution built for consistent daily use. Its visual design balances understated professional styling with ergonomic structure: a tall grey mesh back rises to an aligned headrest, paired with a neatly tailored fabric seat, integrated loop-style fixed armrests, and a wide-spread five-star base with low-profile casters. The 680 mm base leg spread creates a stable, proportional footprint that avoids visual bulk in both open and compact spaces. Construction prioritizes durability and long-wearing comfort across all components. The backrest uses elastic polyester breathable mesh stretched over a grey polypropylene and fiberglass frame, with a contoured molded polypropylene lumbar support integrated directly into the frame structure to align with the natural seated spine curve. The seat is cushioned with high-density molded polyurethane foam wrapped in woven fabric upholstery, while armrests are fixed polypropylene loops attached seamlessly to the back frame to eliminate loose joints. The headrest features a matching breathable mesh pad on a rigid polypropylene support bracket. The base is injection-molded nylon, fitted with 60 mm black nylon dual-wheel swivel casters, and connected to the seat via a black powder-coated Class 3 steel gas lift and 2 mm thick steel butterfly tilt and lock chassis. Key performance ratings support heavy regular use, including a maximum recommended user weight of 150 kg, 50,000 cycles of backrest mesh abrasion resistance, and 100,000 cycles of durability for both casters and gas lift. The chair delivers a full suite of adjustable ergonomic functions to support varied seated needs: a right-side lever controls 360-degree swivel seat height adjustment, with total travel supporting seat heights up to 720 mm. The headrest offers vertical height adjustment up to 190 mm with fixed angle positioning to cradle the neck for users up to 185 cm tall. The backrest reclines from 90 to 120 degrees with a single-position lock, paired with an under-seat rotary tension knob to customize recline resistance for individual preference. The full 360-degree base rotation and smooth dual-wheel casters enable easy movement across both hard flooring and carpeted surfaces, while fixed armrests positioned 180 mm above the seat provide steady upper body support during typing or discussion. This chair is suited for a wide range of work environments. It is designed for 8-hour daily seated work at corporate open office workstations paired with standard 760 mm desks, fits compact home office workspaces thanks to its narrow 680 mm footprint, supports easy movement and repositioning in conference and meeting rooms during collaborative sessions, and offers the stable support needed for general office administrative tasks. It is also compatible with 2.4 m executive desk setups for private office use. For procurement teams, key logistical details simplify planning: each chair ships in two cartons, with a packaged gross weight of 23 kg per set and total carton volume of 0.26 m³ per set.
