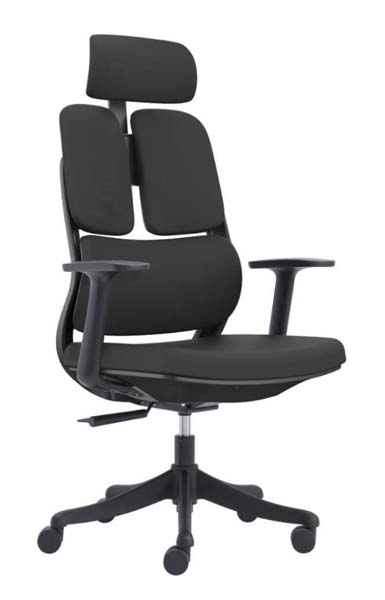

Black Split-Back High-Back Ergonomic Office Chair with Headrest and Fixed Padded Armrests Specifications

ERG-SB705-BLK

代码:YUPAFSV1
获取供应商报价
2026-08-10 10:59人气: 61
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-SB705-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions705 x 670 x 1275 mm
Seat width520 mm
Seat depth510 mm
Adjustable seat height range580 mm
Backrest height (excluding headrest)790 mm
Headrest dimensions280 x 160 mm
Five-star base diameter700 mm
Fixed armrest pad dimensions250 x 100 mm
Lumbar support pad width440 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity136 kg
Net weight (chair only)23 kg
Five-star base static load rating500 kg
Back mesh durability cycle rating120000 cycles
Seat foam density45 kg/m³
Seat foam rebound rate60%
Caster rolling durability100000 cycles
Standard warranty period3 years
Back upholstery durability cycle rating120000 cycles
Gas lift cycle rating100000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable high-tensile polyester mesh
Seat cushion coreMolded high-density polyurethane foam
Internal structural frame30% glass-fiber reinforced polypropylene
Fixed armrest structureReinforced nylon frame with padded PU top surface
Gas lift cylinderChrome-plated steel Class 4 gas lift
Five-star baseGlass-fiber reinforced injection-molded nylon
Caster wheelsSoft polyurethane tread over nylon hub
Headrest paddingMolded polyurethane foam with mesh outer wrap
Internal back support frame30% glass-fiber reinforced polypropylene
Fixed armrest assemblyReinforced nylon frame with padded polyurethane top surface
Recline mechanism chassis3 mm thick cold-rolled steel plate
Seat support plate1.5 mm thick perforated steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment130 mm vertical travel via gas lift lever
Backrest recline function45-degree recline range with multi-position lock
Headrest adjustment80 mm vertical travel plus 45-degree rotation
Dynamic lumbar supportIndependent floating split lumbar pad
Split dual upper back supportTwo separate independent thoracic support pads
Smooth rolling mobilityDual-wheel casters for multi-directional movement
Tilt tension adjustmentUser-adjustable recline resistance knob
Multi-directional rolling mobilityDual-wheel casters with 360-degree swivel stems
Tilt lock functionSingle-lever lock for any angle between upright and fully reclined
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office workstationsSuitable for 8+ hour daily seated work for administrative and professional staff
Home office dedicated workspacesFits standard home desks and supports extended remote work comfort
Conference and meeting roomsProvides ergonomic support for long meetings and collaborative work sessions
Computer lab and call center environmentsDurable design suited for high-utilization shift-based work
Executive private officesProfessional black finish complements premium office furniture layouts
Student study and dormitory spacesAdjustable height fits teenage and adult users for study and computer use
Call center and computer lab environmentsDurable construction suited for high-utilization shift-based daily operation
Mid-tier executive private officesProfessional matte black finish complements premium office furniture layouts
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to dimensional safety and performance requirements for office work chairs
EN 1335-2:2018Applies to structural strength, stability and durability test requirements
EN 1022:2018Specifies stability test methods for all types of domestic and contract seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and performance test standards
ANSI/BIFMA X5.11-2015Specifies additional performance requirements for heavy-duty office seating applications
Maximum recommended user weight capacity136 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional and tolerance requirements for furniture procurement
GB 28007-2011Applies to stability, strength and durability safety requirements for office task chairs
GB/T 35607-2017Sets limits for harmful substance emissions from furniture upholstery and foam components
GB/T 10357.3-2013Outlines test methods for strength and durability of chair backrests and seats
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional and tolerance requirements for furniture procurement;
2. GB 28007-2011:Applies to stability, strength and durability safety requirements for office task chairs;
3. GB/T 35607-2017:Sets limits for harmful substance emissions from furniture upholstery and foam components;
4. GB/T 10357.3-2013:Outlines test methods for strength and durability of chair backrests and seats;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-SB705-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-SB705-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-SB705-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

The Black Split-Back High-Back Ergonomic Office Chair with Headrest and Fixed Padded Armrests, model ERG-SB705-BLK, is an unbranded ergonomic office chair built for sustained seated comfort across professional and personal settings. Its streamlined, professional black finish presents a polished, understated silhouette, with a structured high-back profile and integrated headrest that aligns cleanly with both modern and traditional workspace layouts, without overly bulky or distracting design elements. The chair is built with durable, performance-focused materials: the backrest uses breathable high-tensile polyester mesh to support air circulation during long periods of use, paired with a molded high-density polyurethane foam seat for consistent, resilient support. Its internal structural frame and internal back support frame are constructed from 30% glass-fiber reinforced polypropylene, supported by a glass-fiber reinforced injection-molded nylon five-star base, chrome-plated steel Class 4 gas lift, soft polyurethane casters with nylon hubs, and fixed armrests built with a reinforced nylon frame and padded PU top surface. The headrest is padded with molded polyurethane foam and wrapped in matching mesh for coordinated comfort. Functionally, the chair delivers targeted ergonomic support through its independent floating split lumbar pad and separate dual upper back thoracic support pads that contour to the natural curve of the spine. It offers smooth, customizable positioning with 130 mm of vertical seat height adjustment via a gas lift lever, a 45-degree backrest recline with multi-position lock and user-adjustable tilt tension, and a headrest with 80 mm of vertical travel and 45-degree rotation for personalized neck support. Dual-wheel casters enable easy multi-directional movement across floor surfaces. The chair accommodates users up to 136 kg, with a net weight of 23 kg, five-star base static load rating of 500 kg, 120000-cycle back mesh durability, 45 kg/m³ seat foam density with 60% rebound rate, and 100000-cycle caster rolling durability, supporting consistent long-term use. It is well suited for open-plan office workstations for 8+ hours of daily seated work for administrative and professional staff, home office dedicated workspaces where it fits standard desks for remote work, conference and meeting rooms for extended collaborative sessions, high-utilization computer labs and call centers for shift-based work, executive private offices where its black finish complements premium furniture layouts, and student study or dormitory spaces serving teenage and adult users. For procurement, each unit ships as one set across two cartons, with a reference assembly time of 40 minutes per set, packaged gross weight of 23 kg per set, carton dimensions of 850×420×720 mm, and carton volume of 0.26 m³ per set, supporting a load of 135 sets in a 20GP container at 85% space utilization.
