| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 650 x 820 mm | |
|---|---|---|
| Per-seat width | 530 mm | |
| Seat height from floor | 440 mm | |
| Seat depth per position | 480 mm | |
| Backrest height above seat | 380 mm | |
| Armrest height above seat | 200 mm | |
| Floor clearance under seat | 280 mm | |
| Leg spread (front to back) | 620 mm | |
| Divider width between seats | 40 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Total static load capacity | 360 kg | |
|---|---|---|
| Net weight per unit | 24 kg | |
| Seat padding thickness | 40 mm | |
| Foam density | 35 kg/m³ | |
| Recommended daily use frequency | 100 use cycles | |
| Applicable user count | 3 adults | |
| Per-seat impact load resistance | 150 kg | |
| Foam compression set resistance | 10% | |
| Seam tensile strength | 180 N | |
| Frame coating adhesion rating | Grade 1 |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main support frame | 1.8mm thick cold-rolled steel tube with polished chrome plating | |
|---|---|---|
| Seat base panel | 1.2mm thick cold-rolled steel plate under upholstery | |
| Seat and back upholstery | 1.0mm thick black polyurethane (PU) leather | |
| Seat and back cushion foam | High resilience polyurethane foam with 40% rebound rate | |
| Armrests | Curved 25mm diameter chrome-plated steel tube | |
| Seat dividers | Polished 2mm thick chrome-plated steel strips | |
| Support legs | Angled 30x30mm chrome-plated steel profile with fixed anti-slip rubber glides | |
| Frame welding points | Full-arc welding with polished ground finish | |
| Floor glides | 15mm diameter non-marking rubber pads | |
| Main support beam | 2.0mm thick cold-rolled steel rectangular tube with polished chrome plating | |
| Upholstery stitching | Polyester core spun thread with 6mm stitch pitch | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Fixed position seating | No recline or swivel function, rigid welded frame construction for permanent high-traffic installation | |
|---|---|---|
| Individual seat separation | Integrated chrome steel dividers between each seat to delineate personal space and prevent cross-seat slouching | |
| Dual side armrest support | Curved end armrests provide upper limb support for users at both ends of the row, with smooth rounded edges to avoid impact injury | |
| Fixed floor contact glides | Non-adjustable rubber foot glides create stable contact with hard flooring, no rolling casters for fixed placement in public areas | |
| Under-seat clearance access | Open space below seat beam allows easy floor cleaning and unobstructed foot placement for seated users | |
| Surface stain resistance | PU upholstery surface can be wiped clean with standard disinfectant solutions for public hygiene maintenance | |
| Linear gang seating configuration | 3-seat connected unit can be aligned in rows for large waiting area layouts | |
| Surface disinfection compatibility | PU upholstery surface resists damage from 75% alcohol, quaternary ammonium and chlorine-based disinfectant solutions for public hygiene maintenance | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Package quantity | 1 unit per carton | |
|---|---|---|
| Packaged carton dimensions | 1850 x 700 x 420 mm | |
| Gross packaged weight | 28 kg | |
| Packaged volume (CBM) | 0.544 CBM | |
| Assembly time on site | 15 minutes | |
| 40ft HQ container loading quantity | 120 units | |
| 20ft GP container loading quantity | 48 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
推荐空间 / 目标用户 / 使用方式
| Hospital and clinic waiting areas | Durable, easy-to-clean surface and high load capacity suitable for repeated daily use in healthcare waiting zones | |
|---|---|---|
| Airport, railway and bus transit terminals | Fixed stable structure and defined individual seats suitable for high-traffic passenger waiting areas with continuous occupancy | |
| Bank and government service hall waiting areas | Neutral professional appearance and 3-seat capacity ideal for linear queue waiting layouts in public service spaces | |
| Office reception and visitor waiting zones | Compact footprint and clean aesthetic fits corporate reception areas for short-term visitor seating | |
| School and training institution public areas | Rigid construction resists rough use in high-activity campus common areas for student and visitor seating | |
| Recommended complementary configuration | Align multiple units in continuous rows with 100mm clearance between units for larger waiting areas, or place as standalone 3-seat units for smaller zones | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 Furniture - Seating - Strength, durability and safety requirements for non-domestic seating | Applicable European standard for non-domestic public seating strength and safety, recommended for export product acceptance | |
|---|---|---|
| EN 13722:2004 Furniture - Assessment of surface resistance to cold liquids | Applicable standard for upholstery surface resistance to cleaning agents and common liquid spills in public environments |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 General technical requirements for metal furniture | Applicable standard for dimensional tolerance, coating adhesion and structural strength of steel frame public seating, recommended for incoming inspection | |
|---|---|---|
| GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels | Applicable if any wood-based panel components are used in internal seat construction, recommended for VOC and formaldehyde acceptance testing | |
| GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools | Applicable standard for static load, impact and durability testing of seating surfaces, recommended for product performance verification | |
| GB/T 19995.1-2005 Upholstered furniture - Part 1: Upholstery fabric performance requirements | Applicable standard for PU leather abrasion resistance, color fastness and seam strength testing, recommended for upholstery acceptance |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 General technical requirements for metal furniture：Applicable standard for dimensional tolerance, coating adhesion and structural strength of steel frame public seating, recommended for incoming inspection； 2. GB 18580-2017 Indoor decorating and refurbishing materials - Limit of formaldehyde emission from wood-based panels：Applicable if any wood-based panel components are used in internal seat construction, recommended for VOC and formaldehyde acceptance testing； 3. GB/T 10357.3-2013 Test of mechanical properties of furniture - Strength and durability of chairs and stools：Applicable standard for static load, impact and durability testing of seating surfaces, recommended for product performance verification； 4. GB/T 19995.1-2005 Upholstered furniture - Part 1: Upholstery fabric performance requirements：Applicable standard for PU leather abrasion resistance, color fastness and seam strength testing, recommended for upholstery acceptance； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

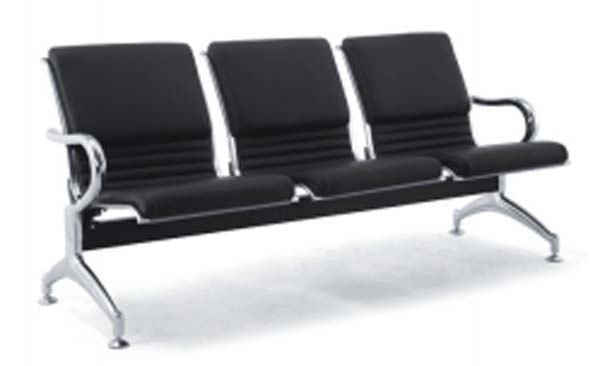

打开导出工具The WEINENG model PUB-WT-3S-CHR-001 is a 3-seat upholstered metal frame public wting chr designed for consistent performance in high-traffic environments. Its streamlined linear gang seating form features polished chrome-finished metal components pred with smooth black polyurethane upholstery, with narrow vertical chrome dividers clearly delineating three individual seating positions. Curved polished chrome armrests sit at both ends of the unit, while angled support legs with non-marking rubber glides create a stable, fixed footprint. Open clearance beneath the seat structure mntns a clean, uncluttered visual profile. The chr’s core structure relies on cold-rolled steel components for the mn support beam, frame, seat base panel, armrests, dividers, and legs, with a polished chrome plating finish and smoothly ground full-arc weld points for a seamless, durable surface. Seats and backrests are padded with high-resilience polyurethane foam formulated to resist permanent compression sag under repeated use, upholstered in smooth black PU leather stitched with reinforced polyester core thread for tear resistance. Seat pans and backrests are contoured to deliver mid-back lumbar support, with dimensions aligned to standard ergonomic requirements for general adult users, including a seat height suited to comfortable entry and exit, and a seat depth sized to support thighs without uncomfortable pressure points. Non-marking rubber glides on all leg ends protect hard flooring and prevent unintended sliding, while the open under-seat gap allows easy access for routine floor cleaning. The smooth, non-porous PU upholstery can be safely wiped down with standard public disinfectant solutions, including 75% alcohol, quaternary ammonium, and chlorine-based products, to support consistent public hygiene. Each seat is rated for a maximum 120kg static load, with built-in resistance to impact loads from routine heavy use. This seating unit is well suited for a wide range of commercial and public spaces, including hospital and clinic wting areas, rport, rlway and bus transit terminals, bank and government service halls, office reception and visitor wting zones, and common areas in schools and trning institutions. For larger wting area layouts, multiple units can be aligned in continuous linear rows; for smaller spaces, standalone 3-seat units work effectively without additional configuration. Procurement teams should note that several dimensional and material specifications are reference values aligned with mnstream commercial gang seating standards, and require formal confirmation of final material composition from the supplier’s official bill of materials prior to final order placement. Logistics planning should account for packaged units sized to fit standard shipping contners, with minimal on-site assembly required to attach foot glides if units are shipped partially knocked down. The fixed, welded frame contns no recline, swivel, height adjustment, or caster mobility features, making it purpose-built for permanent, fixed placement rather than flexible or reconfigurable workspace use.
