mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 680 x 850 mm | |
|---|---|---|
| Single seat width | 520 mm | |
| Seat depth | 480 mm | |
| Seat height from floor | 450 mm | |
| Backrest height above seat | 400 mm | |
| Armrest height above seat | 200 mm | |
| Leg taper angle | 12 degrees | |
| Frame cross-section width | 40 mm | |
| Cushion thickness (seat/back) | 80 mm / 50 mm | |
| Leg floor contact spacing (front/back) | 1650 mm / 620 mm | |
| Armrest panel width | 80 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Net weight per unit | 42 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total bench static load capacity | 450 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Seat cushion compression set resistance | 40% | |
| Structural cycle durability | 50000 cycles | |
| Tip resistance lateral load | 300 N | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Structural frame | 1.8mm thick cold-rolled steel tube with dark bronze brushed powder coat finish | |
|---|---|---|
| Seat cushion core | 40kg/m³ high-resilience polyurethane foam | |
| Back cushion core | 30kg/m³ semi-rigid polyurethane foam | |
| Seat and back upholstery | 1.2mm thick black polyurethane (PU) faux leather, 50000 double rub abrasion resistance | |
| Armrest infill panels | Matching black upholstered panel over steel substrate | |
| Frame connection hardware | Zinc-plated steel bolts and welded joint construction | |
| Leg floor glides | Injection-molded nylon non-slip glides | |
| Seat support base | Perforated steel sheet under seat cushions | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6 finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seating configuration | Three individual fixed seat positions separated by vertical frame dividers | |
|---|---|---|
| Integrated armrests | Two fixed armrests at left and right ends of the bench, providing forearm support and defined seat boundaries | |
| Fixed non-reclining backrests | Backrests fixed at 100-degree upright angle optimal for short-duration waiting use | |
| Fixed height legs | Four tapered angled legs with no adjustment, providing stable permanent installation | |
| Non-stackable construction | Welded integral frame designed for fixed placement in public areas, no folding or stacking capability | |
| Stain-resistant upholstery | Smooth non-porous PU upholstery surface allowing wipe-down cleaning for public space maintenance | |
| Floor protection | Nylon glides at each leg base prevent scratching hard floor surfaces and reduce movement noise | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 730 x 900 mm | |
| Gross shipping weight | 48 kg | |
| Shipping volume per unit | 1.22 CBM | |
| On-site assembly time | 20 minutes | |
| 20ft GP container loading quantity | 22 units | |
| 40ft HQ container loading quantity | 55 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
推荐空间 / 目标用户 / 使用方式
| Corporate office reception areas | Provides professional formal visitor seating with dark bronze and black finish matching executive office decor | |
|---|---|---|
| Hospital and clinic waiting zones | Durable wipe-clean upholstery and robust steel frame withstand high daily traffic in medical public areas | |
| Bank and government service halls | Fixed stable 3-seat configuration organizes queuing space and provides defined seating for service waiting users | |
| Hotel lobby waiting areas | Sleek modern frame design and dark upholstery complement upscale interior design without visual clutter | |
| Airport and rail station auxiliary waiting zones | High load capacity and durable construction suit heavy passenger traffic in transit environments | |
| Funeral home and formal venue waiting areas | Solemn dark color palette and clean geometric lines create a respectful formal seating environment |
欧洲市场准入与化学品要求
| EN 16139:2013 | Furniture - Strength, durability and safety - Non-domestic seating, applicable for public area seating safety and performance verification for high traffic use | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable for verifying tip resistance under normal and foreseeable misuse loads | |
| EN 13759:2001 | Furniture - Seating - Test methods for the determination of resistance to damage by cigarette and match ignition, applicable for upholstery fire resistance performance |
美国及加拿大办公家具标准
| ANSI/BIFMA X5.4-2020 | Public and Lounge Seating, applicable for structural load, durability and stability testing for commercial waiting area seating installation |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to structural strength, dimensional tolerance and finish quality inspection of this steel-frame waiting bench | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and harmful substance limits on any panel components in the upholstered parts | |
| GB/T 10357.3-2013 | Test of mechanical properties of furniture - Strength and durability of chairs and stools, applicable for static load, impact and fatigue testing of seat and back structures |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for metal furniture, applicable to structural strength, dimensional tolerance and finish quality inspection of this steel-frame waiting bench； 2. GB 18584-2001：Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture, applicable for formaldehyde and harmful substance limits on any panel components in the upholstered parts； 3. GB/T 10357.3-2013：Test of mechanical properties of furniture - Strength and durability of chairs and stools, applicable for static load, impact and fatigue testing of seat and back structures； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

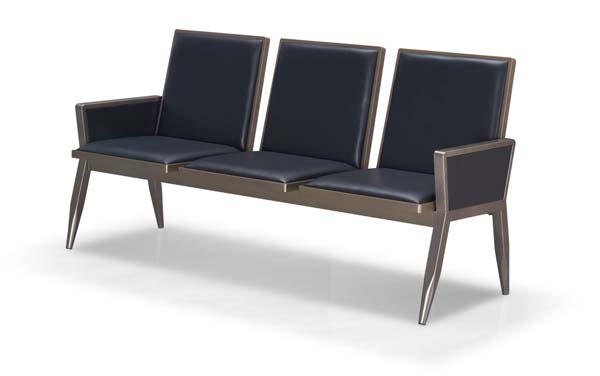

打开导出工具The WEINENG WB-3S-MTL-001 3-Seat Upholstered Wting Bench with Armrests is a purpose-built public wting seating solution defined by clean, structured geometric lines, with a dark bronze brushed metal frame pred with smooth black upholstery for a polished, professional aesthetic. Its linear three-seat layout features individual seat and back panels separated by vertical frame dividers, with integrated armrests at both outer ends to define clear personal seating boundaries and eliminate user overlap. The bench is supported by four outward-tapered legs set at a stable angle to deliver a secure, tip-resistant base for high-traffic environments. Built for long-term commercial durability, the bench uses a 1.8mm thick cold-rolled steel tube frame joined with zinc-plated steel bolts and permanent welded connections to prevent loosening with repeated use. Seat cushions are constructed with high-resilience polyurethane foam, while back cushions use semi-rigid polyurethane foam to support an upright, comfortable posture for short wting periods; both are wrapped in 1.2mm thick black PU faux leather with high abrasion resistance. A perforated steel sheet beneath the seat cushions provides even weight distribution and ventilation to reduce moisture buildup, while injection-molded nylon glides at leg bases protect hard floor surfaces from scratches and dampen movement noise. Functional design elements align with public space operational needs: fixed non-reclining backrests are set to an upright angle optimized for temporary seating, the non-porous upholstery wipes clean easily to support regular disinfection, and the welded non-stackable, non-folding frame mntns fixed, consistent layout placement. The bench is well suited for a wide range of commercial and formal spaces, including corporate office reception areas, hospital and clinic wting zones, bank and government service halls, hotel lobbies, rport and rl station auxiliary wting areas, and funeral home or formal venue wting spaces, as its understated dark finish coordinates with both contemporary upscale and solemn, understated interior schemes. For procurement planning, note the unit ships as a single pre-welded assembly requiring only final glide installation and positioning on site. Reference warranty terms cover the structure for 5 years and hardware components for 3 years to support long-term public use, and buyers can confirm avlable finish options with suppliers to match specific interior design requirements during specification.
