mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 400 x 430 mm | |
|---|---|---|
| Individual seat width | 550 mm | |
| Seat surface thickness | 1.5 mm | |
| Support leg spread width | 500 mm | |
| Leveling foot diameter | 50 mm | |
| Seat edge beam diameter | 80 mm | |
| Gap between adjacent seats | 30 mm | |
| Floor clearance under seat | 350 mm | |
| Support leg material thickness | 8 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Total bench net weight | 22 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Seat surface abrasion resistance | 50000 cycles | |
| Leveling foot adjustment range | 15 mm | |
| Structure service life reference | 10 years | |
| Seamless seat joint gap load resistance | 1000 N | |
| Seat joint gap load resistance | 1000 N | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat panels | 1.5mm thick aluminum alloy sheet with matte silver anodized finish | |
|---|---|---|
| Main support beam | Rectangular extruded aluminum alloy profile with rounded edges | |
| Support legs | Die-cast aluminum alloy, Y-shaped outrigger design, matte silver powder coated finish | |
| Seat joint connectors | Reinforced die-cast aluminum alloy brackets with recessed mounting | |
| Leveling feet | Zinc-plated steel stem with non-slip nylon base pad | |
| End caps | Injection-molded impact-resistant ABS plastic | |
| Surface coating | Polyester powder coating, 60 micron thickness | |
| Fastening hardware | Stainless steel hex bolts and lock nuts, M8 size | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seating configuration | 3 individual connected seats without backrest or armrests | |
|---|---|---|
| Floor leveling adjustment | Rotating adjustable feet at each leg end, total 4 adjustment points, 15mm total travel | |
| Floor protection | Nylon base pads on all feet prevent scratching hard floor surfaces, reduce noise when shifting position | |
| Cleaning access | 350mm clear floor clearance allows standard cleaning tools (brooms, mop heads, robotic vacuums) to pass fully under the seat | |
| Modular connection compatibility | Beam end connection points allow extension with additional seat units to form longer rows | |
| Edge safety design | All exposed seat and beam edges are rounded to 10mm radius | |
| Weather resistance for covered outdoor use | Anodized aluminum and powder coated components resist light moisture and humidity | |
| Anti-tip design | Splayed outrigger legs create 500mm wide support base, passes 200N horizontal force anti-tip test per public furniture standards | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of packages | 1 | |
|---|---|---|
| Packaging carton dimensions | 1850 x 450 x 150 mm | |
| Gross shipping weight | 25 kg | |
| Packaging volume (CBM) | 0.125 | |
| Required assembly time | 10 minutes | |
| 20ft container loading quantity | 210 units | |
| 40ft HQ container loading quantity | 520 units | |
| Packaging protection | 50mm thick EPS foam edge guards, 5-layer corrugated carton, plastic stretch wrap | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Hospital outpatient waiting areas | Smooth non-porous metal surface allows easy disinfection between users, durable construction withstands 24/7 high-volume use | |
|---|---|---|
| Transit station waiting zones (train/bus/airport) | Backless design allows flexible seating direction, wide support base resists impact from luggage and passenger crowds | |
| Public service hall waiting areas (bank, government office) | Minimalist metallic finish blends with modern public interior design, easy to clean and maintain for daily operation | |
| Covered outdoor waiting shelters | Corrosion-resistant metal construction withstands light rain and humidity without rust or degradation | |
| School and campus public waiting areas | Heavy-duty construction resists rough use, anti-tip design reduces safety risks for student populations | |
| Temporary event seating | Lightweight single-unit construction allows quick repositioning for temporary queuing or event arrangements, no assembly required | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 | Furniture - Strength, durability and safety - Requirements for non-domestic seating, applicable for heavy-duty public use strength verification | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability, applicable for anti-tip stability testing of this backless bench | |
| EN 13722:2004 | Furniture - Test methods for the assessment of surface resistance to cold liquids, applicable for metal surface stain resistance testing |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable for dimensional tolerance, surface finish and structural strength verification of this bench | |
|---|---|---|
| GB/T 35607-2017 | Public furniture - Seating for waiting areas, applicable for seating ergonomics, safety and durability testing of this public waiting bench |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for metal furniture, applicable for dimensional tolerance, surface finish and structural strength verification of this bench； 2. GB/T 35607-2017：Public furniture - Seating for waiting areas, applicable for seating ergonomics, safety and durability testing of this public waiting bench； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

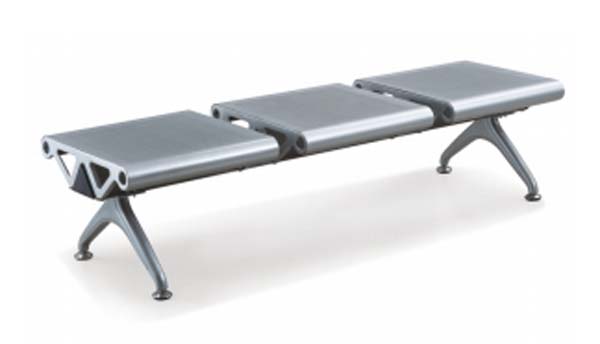

打开导出工具The WEINENG 3-Seat Backless All-Metal Public Wting Bench, model WT-BN-3S-MTL-BKLS-001, is a streamlined beam seating solution designed for consistent performance in high-traffic settings. Its open, backless form connects three individual seat sections along a continuous rounded structural side beam, with no armrests to allow flexible seating access from either side of the unit. A uniform matte silver finish across aluminum components, pred with dark grey recessed connection brackets and triangular impact-resistant ABS end caps, creates a clean, minimalist silhouette that blends unobtrusively with functional public space design. Splayed Y-shaped die-cast aluminum outrigger legs form a stable support base, with no middle support leg required to block floor access beneath the seat. Construction centers on a durable steel frame pred with aluminum alloy components: 1.5mm thick anodized aluminum seat panels mount to a rounded rectangular extruded aluminum mn beam via reinforced die-cast aluminum brackets, secured with stnless steel M8 hex bolts and lock nuts. Each leg terminates in an adjustable leveling foot with a zinc-plated steel stem and non-slip nylon base pad, while all metal surfaces receive a 60 micron polyester powder coating for corrosion resistance. All exposed edges are rounded to eliminate sharp contact hazards, and structural joints are rated to resist deformation under concentrated load. Practical design features support low-effort, long-term operation: four total leveling adjustment points compensate for uneven flooring to eliminate wobble, while nylon foot pads prevent hard floor scratching and reduce noise from movement. Generous clear floor clearance beneath the seat allows full passage of standard cleaning tools including brooms, mops and robotic vacuums for simplified mntenance. The beam ends include integrated connection points to extend runs with additional matching seat units as needed. The all-metal non-porous surface supports easy disinfection, and the splayed leg base provides anti-tip stability to withstand leaning or crowd impact. The corrosion-resistant build also holds up to light moisture exposure for covered semi-outdoor placement. This bench is well suited for a wide range of commercial and public spaces, including hospital outpatient wting areas, trn, bus and rport transit wting zones, bank and government public service halls, covered outdoor wting shelters, school campus common areas, and temporary event queuing setups. It ships as a single fully assembled unit requiring only foot adjustment on site, with protective foam and corrugated packaging to prevent transit damage. Procurement teams should note that units are stackable for efficient bulk shipping, and plan layout spacing to accommodate the modular connection capacity for extended row configurations where needed. Per-seat safe working load limits align with standard public use requirements, and the robust metal build supports expected long-term service under normal indoor public operating conditions.
