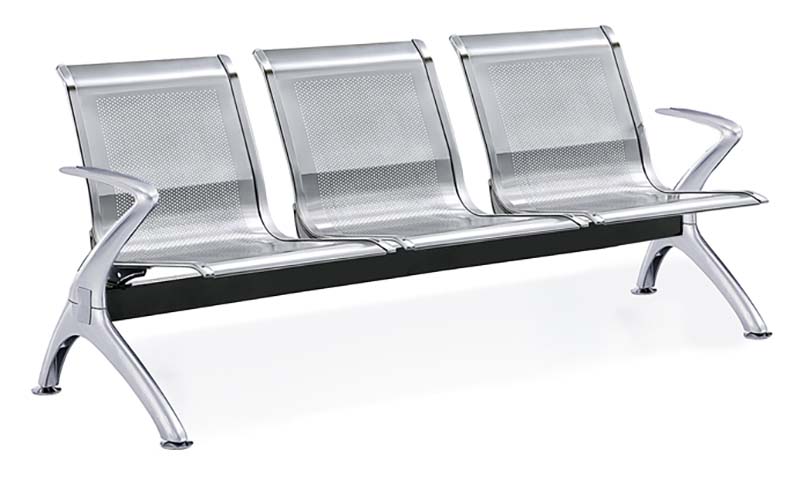

商品供应商3-Seater Stainless Steel Public Waiting Chair,aluminum alloy
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1750 x 650 x 780 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Product net weight | 24 kg | |
|---|---|---|
| Static load capacity per seat | 150 kg | |
| Seating capacity | 3 adults | |
| Frame fatigue cycle rating | 50000 cycles | |
| Surface static friction coefficient | 0.6 | |
| Perforated panel impact resistance | 10 J | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat panels | 1.2mm perforated 201 stainless steel | |
|---|---|---|
| Backrest panels | 1.2mm perforated 201 stainless steel | |
| Armrests | Die-cast polished stainless steel 3mm thick | |
| Support legs | Die-cast stainless steel 4mm thick | |
| Central load beam | Powder-coated cold-rolled steel 2mm thick | |
| Connection fasteners | Stainless steel hex bolts M8 size | |
| Floor glides | Non-marking TPE rubber pads | |
| Frame finish | Brushed stainless steel polish #4 | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seat configuration | 3 connected fixed seats in a single row | |
|---|---|---|
| Floor mounting compatibility | Pre-drilled leg holes for permanent floor anchoring | |
| Drainage and ventilation | Perforated seat/back panels allow air flow and liquid drainage | |
| Structural support system | Single central steel beam connects all seats to end legs | |
| End armrest support | Curved armrests at both outer ends for user support | |
| Surface maintenance | Smooth brushed steel surfaces allow wipe-down cleaning | |
| Stacking capability | Non-stackable fixed welded gang design | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Hospital waiting areas | Durable, easy-to-clean metal surface for high-turnover patient and visitor seating | |
|---|---|---|
| Airport/railway transit terminals | High-traffic rated structure for continuous public use without upholstery wear | |
| Government service hall waiting zones | Neat, durable formal seating for public service queuing areas | |
| Outdoor public covered waiting areas | Rust-resistant stainless steel construction for semi-outdoor installation | |
| Commercial bank branch waiting areas | Fixed gang seating configuration for organized queue management | |
| Clinic and outpatient waiting zones | Easy-to-disinfect surface meets hygiene requirements for medical environments | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 | Applicable for strength, durability and safety of non-domestic seating | |
|---|---|---|
| EN 1022:2018 | Applicable for stability determination of seating furniture |
美国及加拿大家具标准
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | Applicable for general technical requirements of metal furniture | |
|---|---|---|
| GB/T 17657-2013 | Applicable for surface physical property test methods for metal furniture panels | |
| GB 18584-2001 | Applicable for limit of harmful substances in furniture |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:Applicable for general technical requirements of metal furniture; 2. GB/T 17657-2013:Applicable for surface physical property test methods for metal furniture panels; 3. GB 18584-2001:Applicable for limit of harmful substances in furniture; 最终交付参数、检测报告和验收标准以双方采购合同为准。
