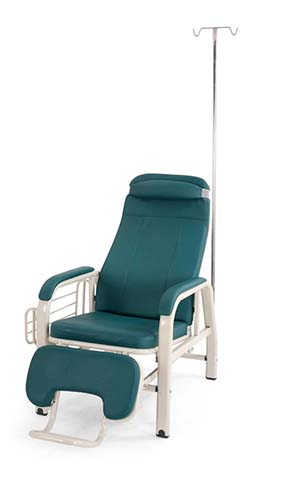

Teal Medical Infusion Recliner Chair with Integrated IV Pole and Pull-Out Leg Rest Specifications

MIR-T01-TL

代码:B1NWDDV1
获取供应商报价
2026-08-24 13:09人气: 33
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MIR-T01-TL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall upright dimensions730 x 1130 x 1200 mm
Seat height from floor450 mm
Seat usable depth600 mm
Clear inter-arm width550 mm
Backrest height above seat800 mm
Pull-out leg rest extended length500 mm
Maximum adjusted IV pole height above floor1800 mm
Armrest height above seat220 mm
Headrest cushion dimensions350 x 120 x 60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per unit45 kg
Maximum recommended patient weight150 kg
Seat foam thickness60 mm
Backrest foam thickness60 mm
Leg rest foam thickness60 mm
Upholstery abrasion resistance50000 double rubs
Recommended static load on IV pole hooks5 kg per hook
Frame corrosion resistance1000 hours neutral salt spray
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main frame construction1.2mm thick cold-rolled steel tube, electrostatic powder-coated finish
Upholstery covering0.8mm thick medical-grade PVC synthetic leather, chlorine-disinfectant resistant
Seat support inner board10mm thick multi-layer plywood, mounted to steel seat frame
Padding material40kg/m³ density high-resilience polyurethane foam, 45% rebound rate
IV pole construction18mm diameter x 1.2mm thick 304 stainless steel tube, polished finish
Armrest constructionPVC-padded top over powder-coated steel guard frame, 12mm thick padding
Foot glides30mm diameter non-marking black rubber, fixed to frame leg bases
Recline mechanism gas spring28mm diameter nitrogen gas spring, locked steel end fittings
Stitching specification8 stitches per 30mm seam length, bonded polyester thread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Backrest recline adjustment3-position locking, 150° maximum recline angle from upright
Pull-out leg rest operationManual sliding articulation, locks in extended elevated position
IV pole height adjustmentTelescopic friction lock, 1200mm to 1800mm adjustable height range
Side guard armrest designFixed rigid steel side rails with padded tops, prevents patient lateral falls
Recline tension control10-level user-adjustable tension, accommodates 150 kg patient weights
Surface cleanabilitySeamless heat-sealed upholstery seams, tolerates 1000ppm chlorine disinfectant wiping
Position memory lockAutomatic lock at upright, semi-reclined, full-reclined positions
Fully reclined total depth1630 mm
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Hospital outpatient infusion roomsDesigned for extended multi-hour IV therapy sessions with recline support
Community clinic treatment areasDisinfectant-resistant surfaces meet primary care infection control requirements
Emergency department observation baysReclining positioning supports patients needing monitoring during infusion
Dialysis center patient stationsStable fixed frame and leg rest support 4 hour treatment sessions
Geriatric care facility treatment roomsFixed armrests and stable frame support assisted patient transfer
Vaccination and blood donation centersComfortable upright and reclined positions suit short to medium procedures
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1022:2018Applicable for seating furniture stability determination for domestic and clinical use
EN 12520:2015Applicable for furniture strength, durability and safety requirements for seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015Applicable for large-person office and public seating performance requirements
ANSI/BIFMA X5.1-2017Applicable for general office seating structural durability reference for clinical use
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable for general furniture mechanical and physical performance requirements
GB 18584-2001Applicable for indoor decoration material furniture formaldehyde emission limits
GB/T 16432-2016Applicable for medical furniture general safety and performance requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable for general furniture mechanical and physical performance requirements;
2. GB 18584-2001:Applicable for indoor decoration material furniture formaldehyde emission limits;
3. GB/T 16432-2016:Applicable for medical furniture general safety and performance requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MIR-T01-TL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MIR-T01-TL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MIR-T01-TL打开导出工具

页面快速操作

发布采购询价

产品描述

The Teal Medical Infusion Recliner Chair (model MIR-T01-TL, unbranded) presents a streamlined, clinical-grade seating solution purpose-built for patient care settings, finished in a cohesive teal antimicrobial upholstery that aligns with standard care environment visual standards. Its fixed, stable base incorporates rubber foot glides that sit flush with floor surfaces, with integrated fixed side guard armrests that frame the seating area to create a secure, defined patient space without protruding components that impede care access or patient movement. The integrated stainless steel IV pole mounts seamlessly to the frame, eliminating loose accessory clutter, while the pull-out leg rest sits flush within the seat base when retracted for a neat, unobtrusive profile. The chair is constructed around a 1.2mm thick cold-rolled steel tube frame with an electrostatic powder-coated finish for durable, long-lasting structural support, paired with a 10mm thick multi-layer plywood seat support board secured to the steel frame. All patient contact surfaces use 0.8mm thick medical-grade PVC synthetic leather upholstery with seamless heat-sealed seams, resistant to chlorine-based disinfectants, upholstered over 40kg/m³ density high-resilience polyurethane foam with a 45% rebound rate. The 304 stainless steel IV pole features a polished finish, armrests include 12mm thick PVC padding over rigid steel guard frames, and a 28mm diameter nitrogen gas spring with locked steel end fittings powers the recline mechanism. All seams use bonded polyester thread stitched at 8 stitches per 30mm length for reinforced durability. Functional design prioritizes patient comfort and care team usability: the backrest offers 3-position locking with a 150° maximum recline angle, including automatic position locks for upright, semi-reclined, and full-reclined settings, paired with 10-level user-adjustable recline tension to accommodate a maximum recommended patient weight of 150kg. The manually operated pull-out leg rest slides outward and locks in an extended elevated position, while the telescopic IV pole uses a friction lock for height adjustment up to 1800mm above the floor, with each hook rated for 5kg of static load. Upholstery tolerates wiping with 1000ppm chlorine disinfectant to support infection control protocols, and fixed rigid side armrests prevent lateral patient falls while supporting assisted transfers. When upright, the chair measures 730 x 1130 x 1200mm, with a 450mm seat height, 550mm clear inter-arm width, and 60mm thick foam across the seat, backrest, and leg rest, with upholstery rated for 50000 double rubs of abrasion resistance. This recliner is suited for hospital outpatient infusion rooms designed for extended multi-hour IV therapy, community clinic treatment areas requiring disinfectant-compatible surfaces, emergency department observation bays, dialysis center patient stations supporting 4-hour treatment sessions, geriatric care facility treatment rooms, and vaccination and blood donation centers hosting short to medium procedures. For procurement, note that each unit ships as one set across two cartons, with a 40-minute per set assembly time, 0.26m³ total carton volume per set, and 135 set loading capacity for a 20GP container at 85% space utilization, with a net weight of 45kg per fully assembled unit.
