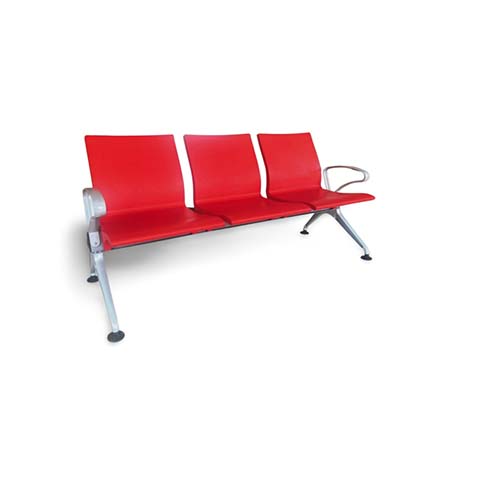

3-Seat Rigid Red Panel Beam Public Waiting Gang Chair Specifications

BC-3S-RD-001

代码:CVXWEXV1
获取供应商报价
2026-08-24 11:36人气: 36
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

BC-3S-RD-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 700 x 930 mm
Individual seat width510 mm
Individual seat depth530 mm
Seat height from floor390 mm
Backrest height above seat450 mm
Armrest height above seat190 mm
Support beam cross-section40 x 80 mm triangular steel tube
Floor glide diameter50 mm
Leg splay width (per end)650 mm
Seat panel thickness1.5 mm cold-rolled steel
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat static load capacity150 kg
Net weight35 kg
Recommended occupancy3 adults
Surface abrasion resistance (powder coat)Class 2, 1000 cycles
Frame corrosion resistance48 hours salt spray (neutral)
Seam/connection fastener torque rating12 Nm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat panels1.5mm cold-rolled steel with red powder coat finish
Backrest panels1.5mm cold-rolled steel with red powder coat finish
Main support beam2.0mm thick triangular steel tube, rust-proof pickling treatment
End armrests1.5mm cold-rolled steel with polished chrome plating
Leg assemblies1.5mm chrome-plated steel, splayed fixed configuration
Floor glidesBlack non-marking injection-molded polymer with steel insert
FastenersZinc-plated steel hex bolts and lock washers
Surface treatmentElectrostatic red powder coating for seat/back, chrome plating for frame
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating configurationFixed linear 3-position connected seating on shared steel beam
Posture supportSlightly angled fixed backrest for upright temporary waiting
Floor stabilityFixed splayed legs with non-marking glides, no casters
Assembly methodBolt-together knock-down construction with supplied hardware
Cleaning suitabilitySmooth non-porous rigid panel surface for wipe-down sanitation
Modular compatibilityCompatible with add-on side tables and extended seat beams per line standards
Adjustment featuresNo moving adjustment parts: no swivel, no height adjustment, no folding seats
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Airport and rail station waiting areasHigh turnover, easy to clean, durable for continuous public use
Hospital and clinic waiting zonesNon-porous surface supports regular sanitation, fixed stable seating
Bank and government service hallsUniform professional appearance, fixed configuration prevents unauthorized repositioning
School and campus public lobbiesHigh load capacity, low maintenance for heavy student traffic
Shopping mall and transit hub rest pointsVisible red color is easy to locate, rigid panels resist damage from heavy use
Temporary event seatingKnock-down design allows transport and rapid setup for short-term public events
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013Furniture - Strength, durability and safety for non-domestic seating, applicable to public waiting areas
EN 1022:2018Furniture - Seating - Determination of stability, applicable to anti-tip performance
EN 13722:2004Furniture - Test methods for surface finishes, applicable to powder coat abrasion resistance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs, applicable to public seating static load and durability benchmarks
ANSI/BIFMA e3-2019Furniture sustainability standard, applicable to material emissions and end-of-life requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable to structural stability and finish quality
GB 18584-2001Indoor decoration material limit of harmful substances for furniture, applicable to coating emissions
GB/T 10357.3-2013Furniture mechanical test for chair and stool strength and durability, applicable to seating load testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to structural stability and finish quality;
2. GB 18584-2001:Indoor decoration material limit of harmful substances for furniture, applicable to coating emissions;
3. GB/T 10357.3-2013:Furniture mechanical test for chair and stool strength and durability, applicable to seating load testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · BC-3S-RD-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · BC-3S-RD-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · BC-3S-RD-001打开导出工具

页面快速操作

发布采购询价

产品描述

The BC-3S-RD-001 3-seat rigid red panel beam public waiting gang chair from Yaqi Furniture is purpose-built for high-traffic public and commercial seating environments. It features a fixed linear three-position layout aligned along a shared support structure, with bold red rigid seat and back panels contrasted by polished chrome finished end armrests and leg assemblies for a clean, professional, easily identifiable visual presence. Slightly angled fixed backrests support upright, comfortable posture for temporary waiting, while the coordinated dimensions of individual seats and structural components create a uniform, organized seating arrangement that integrates seamlessly with shared public space layouts. Built for heavy, continuous use, the chair combines durable, purpose-selected materials across its structure. The main support beam is constructed from thick triangular steel tubing treated with rust-proof pickling, connected to splayed fixed legs fitted with non-marking black polymer floor glides with steel inserts to protect flooring and maintain stable positioning. Seats and backrests use cold-rolled steel panels finished with electrostatic red powder coating, supported internally by bent plywood or equivalent support boards, with cold-rolled steel end armrests finished in polished chrome. All connections use zinc-plated steel hex bolts and lock washers to maintain structural integrity over extended use, with an aluminum alloy core structural composition suited to demanding public settings. The smooth, non-porous rigid panel surfaces support quick wipe-down sanitation, and the chair contains no moving adjustment parts—there is no swivel function, height adjustment, or folding seat mechanism to reduce maintenance requirements. The knock-down bolt-together assembly uses all supplied hardware, and the unit is compatible with matching add-on side tables and extended seat beams per product line standards for flexible layout customization. This gang chair is well suited for a wide range of commercial and public spaces, including airport and rail station waiting areas, hospital and clinic waiting zones, bank and government service halls, school campus lobbies, shopping mall and transit hub rest points, as well as temporary event seating that requires rapid setup and durable performance. When procuring this model, stakeholders should note the fixed connected configuration that prevents unauthorized repositioning, the high-visibility red finish that supports easy wayfinding in busy spaces, and the knock-down packaging design that supports efficient transport and on-site assembly. The product’s durable surface and frame treatments reduce long-term upkeep needs for facilities managing consistent high visitor turnover.
