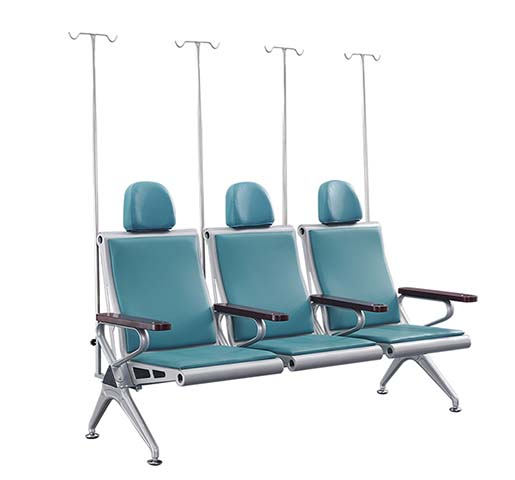

3-Seat Medical Infusion Waiting Chair with IV Poles and Headrests Specifications

MED-INF-3SEAT-PU-01

代码:GU29YSV1
获取供应商报价
2026-08-24 12:44人气: 30
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MED-INF-3SEAT-PU-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 750 x 1850 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per unit48 kg
Static load per seat150 kg
Total unit static load capacity450 kg
Seating capacity3 users
Foot adjustment range15 mm
Recommended daily use duration per seat12 hours
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Structural frame1.5mm thick powder-coated cold-rolled steel tube
Seat and back upholstery1.2mm thick matte polyurethane (PU) leather
Seat cushion core40mm high-density polyurethane foam, 45kg/m³ density
Backrest cushion core30mm high-density polyurethane foam, 40kg/m³ density
Headrests25mm molded PU foam wrapped in matching PU leather
Armrests30mm thick solid hardwood with dark walnut finish
Armrest supports1.2mm thick chrome-plated bent steel
IV poles20mm diameter chrome-plated solid steel rods with dual hooks
Leveling feetInjection-molded nylon with non-slip rubber pads
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fixed upright seating position105-degree fixed backrest angle for upright posture during IV infusion
Integrated IV support1 dual-hook IV pole per seating position, fixed to chair frame between seats
Leveling adjustmentThreaded adjustable feet on all 4 base legs for stability on uneven floors
Interconnected ganged seatingRigid steel beam connecting all 3 seats to prevent shifting and tipping
Stain-resistant seating surfaceNon-porous PU upholstery allows disinfection with standard medical cleaners
Armrest supportDual side armrests for each seat (outer positions have one side armrest) to support arms during IV line placement
Fixed head supportRaised contoured headrest per seat to reduce neck fatigue during long infusion sessions
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Hospital outpatient infusion roomsDedicated IV pole per seat supports extended seated infusion sessions for patients
Community health clinic waiting areasDurable easy-clean surfaces suit high-traffic public healthcare environments with frequent disinfection
Vaccination and blood collection centersFixed armrests provide stable arm support for needle insertion and post-procedure rest
Emergency department observation zonesGanged fixed configuration prevents rearrangement and supports stable patient monitoring
Enterprise medical station waiting areasNeutral teal and metallic finish blends with professional clinical interior design
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 16139:2013Strength, durability and safety requirements applicable for non-domestic public seating
EN 1022:2018Stability test method applicable for fixed upright seating furniture
EN 12520:2015Mechanical safety requirements applicable for furniture used in public healthcare environments
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.4
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements applicable for metal furniture structural safety and stability
GB 18584-2001Limit of harmful substances applicable for interior decoration wooden furniture components
GB/T 16799-2008Performance requirements applicable for polyurethane leather used in furniture upholstery
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements applicable for metal furniture structural safety and stability;
2. GB 18584-2001:Limit of harmful substances applicable for interior decoration wooden furniture components;
3. GB/T 16799-2008:Performance requirements applicable for polyurethane leather used in furniture upholstery;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MED-INF-3SEAT-PU-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MED-INF-3SEAT-PU-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MED-INF-3SEAT-PU-01打开导出工具

页面快速操作

发布采购询价

产品描述

This 3-seat medical infusion waiting chair is purpose-built for high-traffic clinical public seating applications, presenting a streamlined, ganged linear layout configured to support three users in adjacent fixed positions. Each seat integrates a raised contoured headrest, dual side armrests (with outer positions featuring a single side armrest), and dedicated chrome-plated IV poles positioned between seats to create an organized, patient-focused seating array. The design balances clinical functionality with a polished professional aesthetic, featuring a neutral teal and metallic finish that aligns with standard healthcare interior palettes. Constructed for long-term high-frequency use, the chair uses a rigid 1.5mm thick powder-coated cold-rolled steel tube frame connected by a solid steel beam across all three seats to eliminate shifting and tipping risk. Seating surfaces are upholstered in 1.2mm matte non-porous polyurethane leather, with seat cushions built from 40mm high-density foam, backrests from 30mm supportive foam, and headrests from 25mm molded PU foam wrapped in matching upholstery. Armrests are crafted from 30mm thick dark walnut finished solid hardwood, mounted on 1.2mm chrome-plated bent steel supports. Chrome-plated solid steel IV poles fitted with dual hooks attach directly to the frame between seats, while threaded injection-molded nylon leveling feet with non-slip rubber pads on all four base legs accommodate uneven flooring. Functional design elements are tailored to clinical care needs: the 105-degree fixed backrest angle supports upright posture appropriate for infusion sessions, individual contoured headrests reduce neck fatigue during extended seated stays, and stable armrests provide secure support for IV line placement, vaccination, or blood collection procedures. The non-porous PU upholstery resists staining and tolerates cleaning with standard medical disinfectants, supporting strict hygiene protocols. Each seat supports a static load of 150kg, with a total unit static load capacity of 450kg, and is rated for 12 hours of daily use per position. This seating solution is well suited for hospital outpatient infusion rooms, community health clinic waiting areas, vaccination and blood collection centers, emergency department observation zones, and on-site enterprise medical station waiting areas. When planning procurement, note that each unit ships in two cartons, requires 40 minutes of on-site assembly per set, and includes 15mm of foot adjustment range for floor leveling. The ganged fixed configuration removes the need for ongoing seating rearrangement in high-traffic public spaces, supporting consistent layout management for clinical teams.
