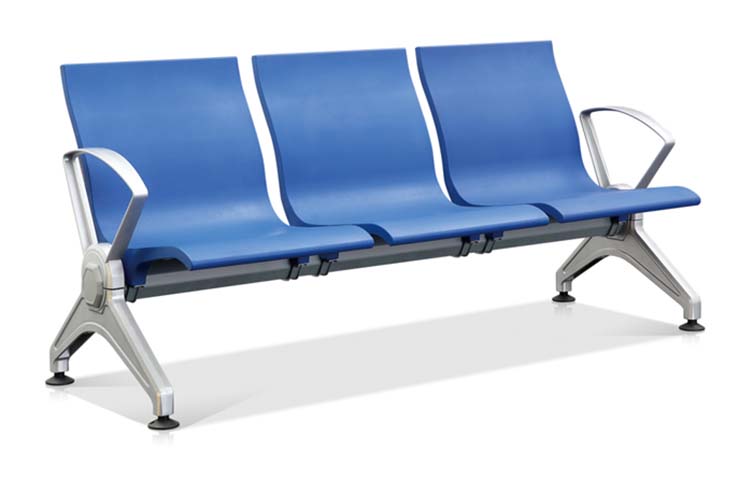

3-Seat Public Waiting Bench with Aluminum Frame and Blue Rigid Seats Specifications

PWB-3S-AL-BL

代码:H6PGWXV1
获取供应商报价
2026-08-24 11:07人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

PWB-3S-AL-BL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 700 x 900 mm
Individual seat width530 mm
Seat depth460 mm
Seat height above floor450 mm
Backrest height above seat510 mm
Armrest height above floor620 mm
Support beam cross-section80 x 80 mm
Leg footprint depth630 mm
Rubber floor glide diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Static load per seat150 kg
Unit net weight45 kg
Recommended user capacity3 adults
Surface abrasion resistance50000 cycles
PU material aging resistance10 years
Floor glide static friction coefficient0.6
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and backrest panels30 mm thick integrally molded self-skin PU
Internal seat support frame1.2 mm thick welded steel tube with rust-proof treatment
Main support beam3.0 mm thick extruded hexagonal aluminum alloy
Leg assembliesSingle-piece die-cast aluminum alloy, powder-coated finish
End armrestsIntegrated die-cast aluminum with smooth polished edge finish
Seat mounting brackets5.0 mm thick aluminum alloy brackets with snap-fit connections
Floor glidesNon-slip TPR rubber with adjustable leveling base
FastenersZinc-plated steel self-locking nuts with spring washers, concealed installation
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating configurationFixed linear 3-seat beam-mounted layout, no intermediate armrests
Posture supportErgonomically contoured seat and back pans for upright waiting posture
Floor levelingAdjustable rubber glides at each leg foot for uneven hard floor surfaces
Surface cleaningSmooth non-porous PU surface compatible with standard disinfectant cleaners
Anti-vandalism designConcealed fasteners and closed-profile armrests to prevent snagging or tampering
Corrosion protectionPowder-coated aluminum components resist rust and cleaning chemical damage
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Airport/railway terminal waiting areasHeavy-duty construction supports continuous high-traffic daily public use
Hospital/clinic waiting roomsNon-porous surface allows regular disinfection and easy spill cleaning
Bank/service hall reception areasStable fixed configuration provides organized queuing seating for visitors
Government/public service office lobbiesTamper-resistant fasteners and durable finish reduce maintenance requirements
Station/bus terminal passenger waiting zonesCorrosion-resistant aluminum frame performs well in variable temperature/humidity
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Public furniture safety strengthEN 16139:2013
Furniture surface fire resistanceEN 1021:2014
Metal coating corrosion resistanceEN 12720:2009+A1:2013
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Multi-seat seating durabilityANSI/BIFMA X2022
Seating stability performanceANSI/BIFMA X2017(Clause 5)
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Public seating mechanical safetyGB/T 35652
Furniture surface environmental limitGB 18584
Metal furniture coating durabilityGB/T 3325
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Public seating mechanical safety:GB/T 35652;
2. Furniture surface environmental limit:GB 18584;
3. Metal furniture coating durability:GB/T 3325;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · PWB-3S-AL-BL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · PWB-3S-AL-BL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · PWB-3S-AL-BL打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded 3-seat public waiting bench, model PWB-3S-AL-BL, is a purpose-built beam-mounted seating solution designed for sustained high-traffic use across commercial and public-facing spaces. Presented in a clean linear cantilever layout, the bench features three fixed non-reclining seats without intermediate armrests, finished with integrated end armrests that have smooth polished edges to reduce snag risks. Its form prioritizes open, unobstructed access while maintaining a structured, organized visual profile suitable for formal and functional public environments. The bench’s construction balances durable metal framing with resilient, easy-to-maintain contact surfaces. The main support structure uses a thick extruded hexagonal aluminum alloy beam, supported by single-piece die-cast aluminum leg assemblies with a powder-coated finish to resist rust and damage from cleaning chemicals. Seat and backrest panels are formed from thick integrally molded self-skin PU, shaped with ergonomic contours to support upright waiting posture, backed by an internal welded steel tube frame with rust-proof treatment and a rigid bent wood support board. Snap-fit aluminum mounting brackets secure seats to the beam, while zinc-plated steel self-locking fasteners are installed in concealed positions to deter tampering. Each leg terminates in an adjustable non-slip TPR rubber glide, which can be leveled to accommodate uneven hard floor surfaces. The non-porous PU surfaces are compatible with standard disinfectant cleaners, simplifying routine spill removal and sanitization. This bench is well suited for a range of high-use spaces, including airport and railway terminal waiting zones, hospital and clinic waiting rooms, bank and service hall reception areas, government office lobbies, and bus or rail station passenger waiting areas. Its heavy-duty build supports continuous daily public use, while tamper-resistant fasteners and corrosion-resistant materials reduce long-term maintenance demands. Procurement teams should note the unit ships in two cartons per set, with straightforward assembly that takes roughly 40 minutes per unit. Shipping configurations allow high-volume loading for large-scale furnishing projects, and the fixed, stable design supports consistent, organized seating layouts for queuing and extended public waiting use.
