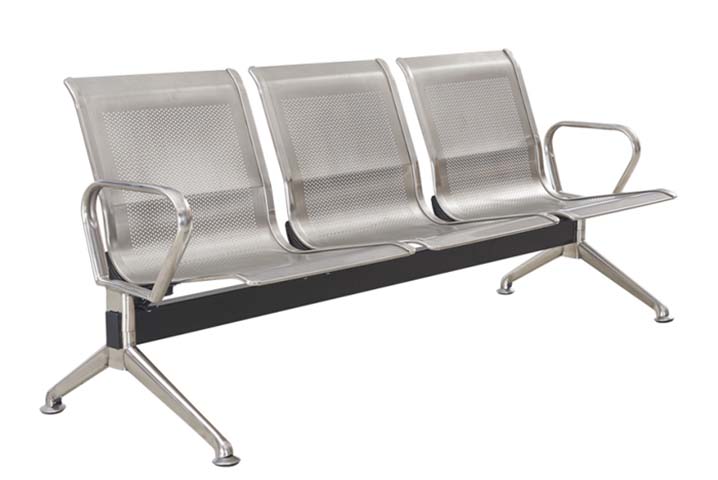

3-Seater Perforated Stainless Steel Beam-Mounted Airport Waiting Chair Specifications

WCH-3SS-PERF-001

代码:JC3KS0V1
获取供应商报价
2026-08-24 11:50人气: 30
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WCH-3SS-PERF-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 680 x 800 mm
Individual seat width520 mm
Seat depth490 mm
Seat height from floor420 mm
Backrest height above seat380 mm
Armrest height above seat200 mm
Support beam section80 x 40 mm
Leg splay spread (per leg unit)600 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net product weight35 kg
Static load per individual seat200 kg
Total unit static load capacity500 kg
Armrest vertical static load120 kg
Seat edge impact durability10000 cycles
Recommended maximum user weight per seat120 kg
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and backrest pans1.5mm perforated 201 stainless steel, polished brushed finish
End armrests40x20x1.5mm oval stainless steel tube, polished finish
Central support beam1.8mm cold-rolled steel, black electrostatic powder coating
Splayed leg assemblies1.2mm stamped polished stainless steel, four-prong design
Inter-seat spacersBlack injection-molded rubber bumpers
Floor glidesAdjustable zinc-plated steel with rubber contact pads
Mounting brackets2.0mm cold-rolled steel, welded and bolted connections
Surface finish (stainless components)Brushed polished finish, deburred smooth edges
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating configurationThree fixed connected seats on single shared beam
Posture supportFixed upright non-reclining contoured seat/back angle
Armrest placementIntegrated curved armrests only at outermost seats
Floor levelingAdjustable rotating glides on each leg foot for uneven floors
VentilationUniform perforated seat/back panels for continuous air flow
Modular expandabilityCompatible with 5seat configurations and add-on side tables
Floor protectionSoft rubber glide pads prevent scratching hard floor surfaces
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Airport terminal waiting areasHigh-traffic durable metal seating for continuous heavy public use
Hospital and clinic waiting zonesSmooth perforated surface allows sanitization and airflow for clinical settings
Railway and bus station concoursesRobust beam-mounted design withstands high passenger turnover
Public service hall queuing areasFixed stable seating provides orderly waiting for government/bank halls
Outdoor covered public waiting zonesStainless steel and powder-coated steel resist mild weather exposure
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Public furniture seating safetyEN 16139:2013
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.4
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Metal furniture structural safetyGB/T 3324
Metal coating corrosion resistanceGB/T 6461
Public seating mechanical safetyGB/T 38600
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Metal furniture structural safety:GB/T 3324;
2. Metal coating corrosion resistance:GB/T 6461;
3. Public seating mechanical safety:GB/T 38600;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WCH-3SS-PERF-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WCH-3SS-PERF-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WCH-3SS-PERF-001打开导出工具

页面快速操作

发布采购询价

产品描述

The WCH-3SS-PERF-001 3-seater perforated stainless steel beam-mounted waiting chair from Yaqi Furniture is a purpose-built tandem public seating solution engineered for high-traffic environments. Presenting a streamlined, linear profile, the unit unites three fixed connected seats on a single shared support beam, with integrated curved armrests positioned only at the outermost seats to balance open access and user comfort. All exposed stainless steel components carry a consistent brushed polished finish with deburred smooth edges, while inter-seat black rubber bumpers create subtle visual separation between positions and prevent metal-on-metal contact. The fixed upright, non-reclining contoured seat and back angle delivers consistent posture support, and uniform perforations across seat and back panels enable continuous air flow for user comfort during extended waiting periods. Durable, layered construction underpins the chair’s long-term performance. Seat and backrest pans are formed from 1.5mm perforated 201 stainless steel, supported internally by 14mm bent plywood or equivalent support board. End armrests are constructed from 40x20x1.5mm oval polished stainless steel tube, anchored to a central 1.8mm cold-rolled steel support beam finished with black electrostatic powder coating. Four-prong splayed leg assemblies use 1.2mm stamped polished stainless steel, fitted with adjustable rotating zinc-plated steel floor glides that have soft rubber contact pads to level the unit on uneven floors and protect hard flooring surfaces from scratches. All mounting brackets use 2.0mm cold-rolled steel with welded and bolted connections for rigid structural integrity. This seating solution is suited for a wide range of commercial and public spaces, including airport terminal waiting areas, hospital and clinic waiting zones, railway and bus station concourses, government and bank public service hall queuing areas, and covered outdoor public waiting zones. Its smooth perforated surfaces support straightforward sanitization for clinical settings, while its robust beam-mounted structure stands up to consistent high passenger turnover, and its metal construction resists mild weather exposure for covered outdoor use. The system is modular, compatible with 5-seat configurations and add-on side tables for flexible layout planning. Procurement teams should note the unit ships as one set across two cartons, with an assembly time of 40 minutes per set, allowing for efficient installation across large seating zones. Load ratings align with heavy public use, with a recommended maximum user weight per seat of 120kg, and the polished all-metal finish reduces long-term maintenance demands compared to upholstered alternatives for high-throughput sites.
