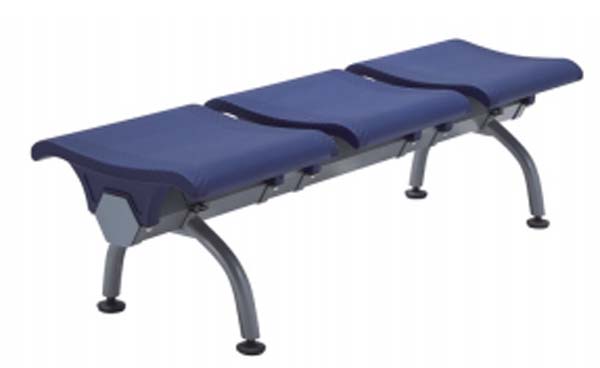

商品供应商3-Seat Upholstered Waiting Bench with Arched Metal Legs，1.5mm thick powder-coated steel rectangular tube
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1800 × 600 × 450 mm | |
|---|---|---|
| Single seat width | 580 mm | |
| Seat surface height from floor | 450 mm | |
| Seat cushion thickness | 60 mm | |
| Leg outrigger span (width direction) | 520 mm | |
| End cap diameter (head/foot section) | 120 mm | |
| Glide foot diameter | 60 mm | |
| Seat edge overhang past frame | 30 mm | |
| Frame tube wall thickness | 1.5 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Product net weight | 28 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Floor glide vertical adjustment range | 15 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Support frame | 1.5mm thick powder-coated steel rectangular tube | |
|---|---|---|
| Seat cushion padding | 40kg/m³ density high-resilience polyurethane foam | |
| Seat upholstery | Navy blue waterproof medical-grade PVC fabric | |
| Leg structure | 25mm diameter powder-coated curved steel tube | |
| End caps | Injection-molded gray ABS plastic | |
| Floor glides | Black nylon with rubber anti-slip base | |
| Seat attachment hardware | Zinc-plated steel bolts | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Fixed position seating | Contoured individual seat pads separated by ergonomic hip guides to maintain seated position | |
|---|---|---|
| Floor levelling adjustment | Threaded glides on each of 4 legs rotate to adjust height and eliminate wobble on uneven floors | |
| No-tip stability design | Arched outrigger legs place floor contact points outside the main seat frame to prevent tipping under uneven load | |
| Easy cleaning | Smooth non-porous upholstery surface allows full wipe-down disinfection between users | |
| Fixed non-folding structure | Welded steel frame provides permanent rigid configuration without folding or reclining mechanisms | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 650 x 180 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume per unit | 0.216 CBM | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading quantity | 124 units | |
| 40ft HQ container loading quantity | 308 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Hospital clinic waiting areas | Wipe-clean upholstery and high load rating suits high-traffic patient waiting zones where regular disinfection is required | |
|---|---|---|
| Transportation hub waiting zones | Durable steel frame construction supports continuous high-volume use in bus, train or airport public waiting spaces | |
| Office reception areas | Neutral navy finish and compact footprint fits small corporate reception waiting spaces for visitor seating | |
| School health rooms | Padded contoured seats provide comfortable rest seating for students in campus medical or first aid rooms | |
| Gym and sports facility changing areas | Moisture-resistant upholstery withstands damp environment use for seating near changing rooms | |
| Emergency department triage areas | Stable fixed design supports temporary patient seating in high-throughput medical triage zones |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, recommended performance standard for commercial public waiting bench testing | |
|---|---|---|
| EN 1022:2019 | Furniture - Seating - Determination of stability, recommended verification standard for bench tipping resistance |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| 北美市场选型与验收参考 | ANSI/BIFMA X5.4 公共及休闲座椅 |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB 28007-2011 | General technical requirements for children's furniture, applicable if specified for pediatric waiting areas | |
|---|---|---|
| GB/T 18204.3-2013 | Public place hygiene test methods, applicable for upholstery cleanability requirements in clinical waiting spaces |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB 28007-2011：General technical requirements for children's furniture, applicable if specified for pediatric waiting areas； 2. GB/T 18204.3-2013：Public place hygiene test methods, applicable for upholstery cleanability requirements in clinical waiting spaces； 最终交付参数、检测报告和验收标准以双方采购合同为准。
