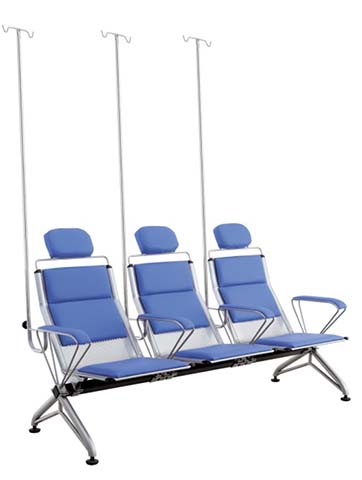

商品供应商3-Seat Reclining Medical Infusion Waiting Chair with IV Poles,aluminum alloy
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall assembled dimensions (L x D x H) | 3010 x 768 x 2060 mm | |
|---|---|---|
| Single seat width per position | 680 mm | |
| Seat height from floor | 450 mm | |
| Upright seatback height above seat | 800 mm | |
| Integrated footrest depth per seat | 400 mm | |
| Armrest width per unit | 100 mm | |
| IV pole height above seat mounting point | 1130 mm | |
| Support leg splay base width | 720 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Per-seat static load capacity | 158 kg | |
|---|---|---|
| Product net weight | 75 kg | |
| Recommended maximum user weight per seat | 150 kg | |
| Frame rust resistance service life | 5 years | |
| Upholstery disinfectant compatibility | Withstands repeated 75% alcohol and chlorine wipe cleaning | |
| Seam pitch for upholstery | 8 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main support beam frame | 1.8 mm thick cold-rolled steel tube, phosphated and electrostatic powder-coated | |
|---|---|---|
| Seat/back internal support panel | 10 mm thick multi-layer plywood base | |
| Seat, back, headrest and footrest cushion filling | 60 mm thick high-resilience virgin foam | |
| Upholstery cover for cushioned surfaces | 0.8 mm thick waterproof scratch-resistant PU western leather | |
| Armrest construction | Curved steel frame wrapped in matching PU padding, 100 mm wide | |
| IV pole construction | Stainless steel round tube, height-adjustable with dual top hooks | |
| Floor glide feet | Reinforced nylon non-slip adjustable glides | |
| Recline mechanism rails | 2 mm thick stamped steel rail assembly for controlled recline locking | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seatback recline adjustment | Manual rail-controlled mechanism with 4 lock positions, maximum 135-degree recline angle | |
|---|---|---|
| IV pole height adjustment | Telescoping stainless steel pole with twist lock, 400 mm vertical adjustment travel | |
| Integrated continuous footrest | Fixed extended flat surface synchronized with seat recline to support full leg extension | |
| Armrest positioning | Fixed curved padded armrests positioned between adjacent seats and outer ends for patient support | |
| Floor leveling adjustment | Adjustable nylon glide feet at each leg base to compensate for uneven clinic flooring | |
| Integrated headrest support | Fixed padded headrest at top of each seatback to support neck during extended transfusion sessions | |
| Cleaning access design | Smooth exposed metal frame surfaces with no concealed crevices to enable full disinfection between patients | |
| Reclined single position total length | 1600 mm | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
推荐空间 / 目标用户 / 使用方式
| Hospital outpatient transfusion rooms | High-capacity 3-seat tandem layout for multiple patients receiving IV therapy, durable medical-grade surfaces | |
|---|---|---|
| Community clinic waiting and treatment areas | Easy-to-clean disinfectant-resistant surfaces suitable for high-traffic primary care settings | |
| Blood donation centers | Reclining positioning and integrated leg rest support comfortable extended sessions for blood donors | |
| Emergency department observation areas | Fixed beam-mounted construction provides stable, high-turnover seating for short-stay patient monitoring | |
| Recommended configuration for clinical use | Pair with removable under-seat waste bins and side table attachments for patient convenience | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 16139:2013 | Non-domestic seating strength, durability and safety for public area medical waiting furniture | |
|---|---|---|
| EN 1022:2018 | Seating stability test methods for tandem multi-seat medical seating installations |
美国及加拿大家具标准
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.4 |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame strength and finish durability | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances for wooden furniture components, applicable to internal plywood base panels | |
| GB 20286-2006 | Flame retardant requirements for public furniture in medical public spaces |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to frame strength and finish durability; 2. GB 18584-2001:Limit of harmful substances for wooden furniture components, applicable to internal plywood base panels; 3. GB 20286-2006:Flame retardant requirements for public furniture in medical public spaces; 最终交付参数、检测报告和验收标准以双方采购合同为准。
