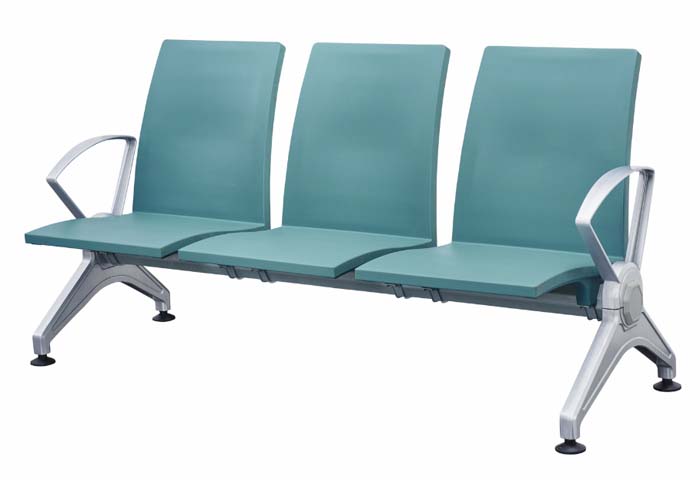

商品供应商Teal 3-Seat High-Traffic Public Tandem Waiting Bench,aluminum alloy
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 780 x 890 mm | |
|---|---|---|
| Individual seat width | 580 mm | |
| Seat depth | 480 mm | |
| Seat height above floor | 420 mm | |
| Backrest vertical height | 480 mm | |
| End armrest height above seat | 320 mm | |
| Support beam cross-section | 80 x 90 mm | |
| Leg floor contact spread | 660 mm | |
| Polyurethane panel thickness | 30 mm | |
| Floor glide diameter | 40 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Static load capacity per seat | 150 kg | |
|---|---|---|
| Total unit net weight | 45 kg | |
| Seat impact durability rating | 10000 cycles | |
| Coating adhesion grade | Grade 1 | |
| Floor contact flatness tolerance | 1.0 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat and back panels | 30mm thick rigid self-skinning molded polyurethane | |
|---|---|---|
| Internal seat core frame | 1.2mm thick steel flat tube with 1.0mm steel plate reinforcement | |
| End armrest assemblies | Die-cast aluminum with matte silver polyester powder coating | |
| Tripod support legs | Die-cast aluminum with electrostatic powder coated finish | |
| Horizontal support beam | 80x90mm octagonal steel tube with 2.0mm wall thickness | |
| Seat mounting brackets | 5mm thick stamped steel brackets with anti-corrosion coating | |
| Floor contact glides | 40mm diameter non-marking black rubber with adjustable threaded stem | |
| Metal surface finish | Matte textured powder coating with acid pickled anti-rust pretreatment | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seating configuration | 3 individual contoured seats on a shared fixed beam | |
|---|---|---|
| Installation type | Fixed floor-stable placement with adjustable leveling glides | |
| Surface maintenance | Seamless non-porous PU surface supports wipe-down disinfection | |
| Structural design | No moving parts, recline, swivel or folding mechanisms | |
| Armrest support | Curved end armrests provide support for outermost seated users | |
| Noise reduction | Rubber floor glides eliminate metal-to-floor contact noise | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Packaged carton dimensions | 1850 x 720 x 280 mm | |
|---|---|---|
| Packaged gross weight | 50 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Hospital outpatient waiting areas | Easy-clean disinfectable surface withstands high daily patient turnover | |
|---|---|---|
| Airport and railway station waiting zones | Durable rigid construction supports continuous heavy public use | |
| Bank and government service lobbies | Neutral teal finish complements formal public service interiors | |
| Clinic and vaccination center waiting spaces | Stable fixed design prevents unwanted movement in high-traffic areas | |
| Indoor public transport terminal seating | Corrosion-resistant materials hold up to routine cleaning and heavy use |
欧洲市场准入与化学品要求
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating, applies to public area seating performance validation |
|---|
美国及加拿大家具标准
| 北美市场选型与验收 | ANSI/BIFMA X5.4 公共及休闲座椅 |
|---|
适用于中国市场项目的标准
| GB/T 3325-2017 | Metal furniture general technical conditions, applies to structural strength and finish requirements for this metal-frame public bench | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials limit of harmful substances, applies to PU and coating emission requirements | |
| Backrest static load capacity | 76 kg |
本产品须满足以下技术参数要求: 1. GB/T 3325-2017:Metal furniture general technical conditions, applies to structural strength and finish requirements for this metal-frame public bench; 2. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances, applies to PU and coating emission requirements; 3. Backrest static load capacity:76 kg; 最终交付参数、检测报告和验收标准以双方采购合同为准。
