| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 680 x 820 mm | |
|---|---|---|
| Per-seat usable width | 520 mm | |
| Seat height from floor | 440 mm | |
| Seat depth | 430 mm | |
| Backrest height above seat | 380 mm | |
| Armrest height above seat | 200 mm | |
| Horizontal support beam cross-section | 60 x 30 mm | |
| Leg spread width at floor | 1650 mm | |
| Backrest ventilation cutout size | 150 x 40 mm | |
| Floor glide diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Unit net weight | 28 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Seating capacity | 3 adults | |
| Frame static overload test reference | 750 kg total load without permanent deformation | |
| Surface stain resistance rating | Class B for non-porous PU surfaces | |
| Recommended warranty for commercial use | 3 years | |
| Maximum recommended user weight per seat | 120 kg | |
| Total seating capacity | 3 adults | |
| PU surface stain resistance rating | Class B for non-porous integral PU |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Seat panels | Rigid integral-skin polyurethane, 8mm thick, smooth matte gray finish | |
|---|---|---|
| Backrest panels | Rigid integral-skin polyurethane, 8mm thick, gray finish with rectangular ventilation cutout | |
| Armrests | Chrome-plated steel tube, 25mm diameter, 1.5mm wall thickness, polished silver finish | |
| Main support beam | Powder-coated steel rectangular tube, 2mm wall thickness, silver gray finish | |
| Leg assemblies | Powder-coated cast steel, curved tripod-style design with fixed floor glides | |
| Seat mounting brackets | Galvanized steel, 3mm thick, secured with corrosion-resistant hex bolts | |
| Floor glides | Nylon base with rubber contact pad, adjustable height for floor leveling | |
| Divider bars between seats | Chrome-plated steel, 25mm diameter, integrated with armrest structure to define individual seating positions | |
| Armrest assemblies | Chrome-plated steel tube, 25mm diameter, 1.5mm wall thickness, polished silver finish, bent to rectangular open loop shape | |
| Main horizontal support beam | Powder-coated steel rectangular tube, 2mm wall thickness, silver gray matte finish, with pre-punched mounting holes | |
| Seat/back mounting brackets | Galvanized steel, 3mm thick, secured with M8 corrosion-resistant hex bolts and lock washers | |
| Between-seat divider bars | Chrome-plated steel, 25mm diameter, integrated with armrest structure to define individual seating positions |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Fixed non-reclining structure | Permanently upright seat and back angle set at 100 degrees from seat surface for short-term waiting comfort | |
|---|---|---|
| Between-seat armrest division | Two intermediate armrests plus two end armrests create 3 clearly defined separate seating positions to prevent seat crowding | |
| Backrest ventilation cutout | Rectangular opening in lower backrest reduces heat buildup during extended waiting periods and allows easy cleaning access behind seated users | |
| Leveling floor glides | Threaded adjustable feet at each leg end compensate for uneven floor surfaces, eliminating rocking and reducing floor scratches | |
| Fixed floor mounting compatibility | Pre-drilled holes in leg bases allow permanent anchoring to concrete or tile floors for anti-tip security in high-traffic public areas | |
| Easy-clean surface design | Non-porous seamless PU panels allow wipe-down disinfection with standard commercial cleaning agents, no fabric seams to trap dirt | |
| Wall-mounted configuration option | Support beam is compatible with optional wall brackets for installation without floor anchoring in narrow corridor spaces | |
| Linkable unit design | Ends of the main support beam allow connection of additional 3-seat or single-seat units to create longer continuous seating rows | |
| Fixed non-reclining seating structure | Permanently upright seat and back angle set at 100 degrees from seat surface for short-term waiting comfort, with no recline or tilt mechanisms | |
| Integrated between-seat armrest division | 2 intermediate armrests plus 2 end armrests create 3 clearly defined separate seating positions to prevent seat crowding and maintain personal space | |
| Backrest ventilation cutouts | Rectangular opening in the lower section of each backrest reduces heat buildup during extended waiting periods and allows easy cleaning access behind seated users | |
| Adjustable leveling floor glides | Threaded adjustable feet at each of the 4 leg ends provide 10mm of vertical adjustment to compensate for uneven floor surfaces, eliminating rocking and reducing hard floor scratches |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping packages | 1 | |
|---|---|---|
| Shipping carton dimensions | 1850 x 730 x 220 mm | |
| Gross shipping weight | 33 kg | |
| Shipping volume per unit | 0.30 CBM | |
| Assembly time per unit | 40 minutes | |
| 20ft container loading capacity | 88 units | |
| 40ft HQ container loading capacity | 220 units | |
| Packaging materials | 5-layer corrugated carton, 20mm EPE foam edge protection, polybag for hardware kit | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Hospital outpatient waiting areas | Non-porous surfaces allow frequent disinfection, individual seat dividers support patient privacy and infection control recommendations | |
|---|---|---|
| Airport and railway station waiting halls | High static load rating and durable construction supports continuous high-turnover use by large passenger volumes | |
| Government service center queuing areas | Fixed stable structure and neutral gray finish aligns with public facility aesthetic requirements, resistant to heavy daily use | |
| Bank and office building reception lobbies | Sleek metallic frame and clean lines match modern commercial interior design, provides short-term seating for visiting clients | |
| School clinic and administrative building waiting zones | Stain-resistant surfaces require minimal maintenance, robust frame resists damage from student use | |
| Outdoor covered waiting areas | Powder-coated steel frame and non-porous PU panels resist moisture and mild weather exposure under covered outdoor installation | |
| Clinic and vaccination center waiting rooms | Smooth seam-free surfaces allow rapid disinfection between patients, supporting hygiene requirements for healthcare environments | |
| Covered outdoor bus and transit stop waiting areas | Powder-coated corrosion-resistant frame and non-porous PU panels resist moisture and mild weather exposure under overhead covered installation |
欧洲市场准入与化学品要求
| EN 16139:2013 Furniture - Seating - Strength, durability and safety for non-domestic seating | Applicable for strength, durability and safety testing for commercial public waiting seating used in high-traffic environments | |
|---|---|---|
| EN 13722:2004 Furniture - Seating - Test methods for the determination of stability | Applicable for anti-tip stability testing for fixed and free-standing multi-seat gang seating | |
| EN 1022:2018 Furniture - Seating - Determination of stability | Applicable for seating stability validation for users of all body weights up to rated capacity |
美国及加拿大办公家具标准
| ANSI/BIFMA X5.1-2017 Office Chairs - General Purpose | Applicable reference for static load, backrest strength and durability testing for heavy-use seating, adapted for fixed public seating applications |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 General technical requirements for furniture: metal furniture | Applicable for structural strength, dimensional stability and finish durability requirements for commercial metal-frame seating | |
|---|---|---|
| GB/T 24821-2009 Public seating for waiting areas | Applicable for static load, stability and safety requirements for high-traffic public waiting seating | |
| GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture | Applicable for formaldehyde and heavy metal emission limits for any non-metal components used in seating construction |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017 General technical requirements for furniture: metal furniture：Applicable for structural strength, dimensional stability and finish durability requirements for commercial metal-frame seating； 2. GB/T 24821-2009 Public seating for waiting areas：Applicable for static load, stability and safety requirements for high-traffic public waiting seating； 3. GB 18584-2001 Indoor decorating and refurbishing materials - Limit of harmful substances of wood based furniture：Applicable for formaldehyde and heavy metal emission limits for any non-metal components used in seating construction； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

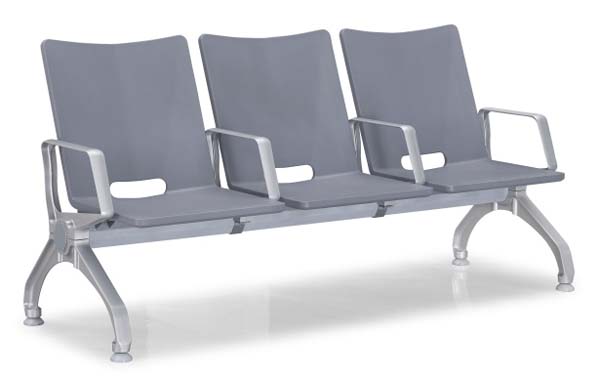

打开导出工具The WEINENG 3-Seater Polyurethane Wting Chr with Metal Frame, model WT-3SEAT-PU-MTL-001, presents a streamlined, purpose-built gang seating solution for high-turnover public environments. Its visual design features three distinct, evenly spaced seating positions separated by polished chrome-plated steel armrests and integrated dividers, finished in a coordinated neutral gray palette with matte polyurethane seat and backrest panels pred with silver-toned powder-coated steel structural elements. Each backrest includes a uniform rectangular lower cutout, contributing to a clean, functional aesthetic that aligns with modern commercial interior standards. The chr’s construction centers on a robust steel frame, with a powder-coated rectangular steel mn support beam, curved tripod-style cast steel legs, and galvanized steel mounting brackets secured with corrosion-resistant fasteners. Seat and back panels are formed from rigid 8mm thick integral-skin polyurethane in a smooth matte gray finish, while armrests and between-seat dividers use chrome-plated steel tubing with a polished silver finish. Adjustable nylon floor glides with rubber contact pads sit at each leg end to protect flooring surfaces. Functionally, the fixed non-reclining structure mntns an upright 100-degree seat-to-back angle optimized for short-term wting comfort, with mid-back support and appropriately positioned armrests to d unassisted sitting and standing. Backrest cutouts reduce heat buildup during use and simplify cleaning access, while non-porous seamless PU surfaces support quick wipe-down disinfection with standard commercial cleaning agents, carrying a Class B stn resistance rating for high-traffic use. The unit offers flexible installation: pre-drilled leg bases allow permanent floor anchoring for anti-tip security, while optional wall brackets support wall-mounted configuration for narrow spaces. The linkable beam design enables connection to additional units to form extended continuous seating rows, and each seat supports a recommended maximum user weight aligned with long-term public use requirements. This seating is well suited for a range of commercial and public spaces, including hospital outpatient and clinic wting areas, rport and rlway station wting halls, government service center queuing zones, bank and office reception lobbies, school administrative and clinic wting areas, and covered outdoor wting zones such as transit stops, where its durable, moisture-resistant construction stands up to mild weather exposure under overhead protection. For procurement, note the unit ships knocked down in protective corrugated packaging with EPE foam edge protection, requiring two-person assembly with included tools; standard commercial warranty covers frame and hardware for three years of public use. Bulk orders can be optimized for contner shipping to reduce freight costs, and purchasers should confirm final material specifications with the supplier prior to final order placement.
