Name: 3-Seat Metal Frame Public Waiting Chair with Padded Upholstery
Brand: WEINENG
SKU: PYL9R4

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1780 × 680 × 820 mm
Single seat width	520 mm
Seat height from floor	440 mm
Seat depth	480 mm
Backrest height above seat	380 mm
Armrest height from floor	680 mm
Leg spread width (per end support)	620 mm
Floor clearance under seat	280 mm
Seat divider width	60 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight per unit	35 kg
Static load capacity per seat	150 kg
Recommended maximum occupancy	3 users
Surface abrasion resistance (padded surfaces)	50000 cycles
Durability cycle rating for static seating	100000 use cycles
Static horizontal stability load	400 N
Glide floor contact pressure	0.8 MPa
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Main support beam	1.5mm thick cold-rolled steel tube, polished chrome plated, with black powder coated under-seat trim panel
Armrests	1.2mm thick polished chrome-plated bent steel tube, curved continuous loop form connecting to seat beam and leg support
End leg assemblies	2.0mm thick cast aluminum alloy with polished chrome finish, flared 4-point support with adjustable anti-slip floor glides
Seat pads	40mm thick high-density polyurethane foam (40kg/m³ density) wrapped in black 0.8mm thick polyurethane upholstery, fixed to metal seat pan with concealed fasteners
Backrest panels	Perforated cold-rolled steel mesh with polished chrome edge trim, upper section finished with black upholstered padding matching seat pads
Seat dividers	Polished chrome-plated steel trim strips separating adjacent seating positions, rounded edge finish for impact safety
Floor glides	Nickel-plated steel adjustable leveling glides with 40mm diameter non-marring rubber contact pad, 10mm adjustment range for uneven floors
Seat pans and back inner frames	1.2mm thick cold-rolled steel with anti-corrosion phosphate pre-treatment, fixed directly to main support beam
Seam construction	6mm stitch pitch reinforced nylon thread stitching on upholstered edges, with hidden stitch lines on contact surfaces to prevent snagging
Perforated back mesh	1.0mm thick cold-rolled steel sheet with 8mm diameter round perforations at 12mm center spacing, polished chrome finish
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Seating configuration	Fixed 3-position gang seating with raised chrome dividers between seats to discourage overcrowding and define individual seating space
Surface configuration	Ventilated perforated metal lower back panel to reduce heat buildup during extended waiting periods, padded upper back and seat for contact comfort
Floor installation compatibility	Fixed-position freestanding design with pre-drilled glide holes for optional permanent floor anchoring to prevent movement or tipping in high-traffic areas
Surface maintenance design	Smooth chrome frame surfaces and non-porous polyurethane upholstery that can be wiped clean with standard disinfectant solutions without surface damage
Structural stability	Flared four-point leg support with wide footprint to eliminate lateral wobble when fully occupied, no moving joints to reduce maintenance requirements
Armrest functionality	Full-height curved armrests on both outer ends to support seated users when standing up, with smooth rounded edges to prevent clothing snags
Ventilation design	Perforated 1.0mm steel lower back panel with 8mm perforations to allow air circulation and reduce heat buildup during extended waiting periods, paired with padded upper back and seat for contact comfort
Edge safety design	All exposed steel edges have 3mm radius rounded finish to eliminate sharp contact points for users and cleaning staff
Recline Angle / Lock Reference	125° with 3 suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Number of shipping cartons	1 carton
Shipping carton dimensions	1820 x 720 x 320 mm
Gross shipping weight	42 kg
Shipping volume per unit	0.42 CBM
Assembly time per unit	40 minutes
20ft GP container loading quantity	66 units
40ft HQ container loading quantity	165 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Hospital and clinic waiting areas	Suitable for continuous high-traffic medical facility use, with easy-to-clean surfaces and durable construction to support daily patient and visitor use
Airport, rail and bus terminal waiting zones	Designed for extended public occupancy, with defined individual seats and robust metal frame to withstand heavy 24/7 use in transit environments
Government and public service office lobbies	Neutral professional appearance and durable construction suitable for public-facing service areas with steady visitor flow
Bank and financial institution customer waiting areas	Formal aesthetic and low-maintenance surfaces appropriate for customer-facing commercial lobbies
Outpatient clinic and service center queue areas	Fixed gang configuration prevents unapproved rearrangement while providing clear, separated seating for waiting patrons
School and educational institution public common areas	Robust construction resistant to impact and heavy use, suitable for campus lobby and student service waiting spaces
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002 Public seating - Requirements and test methods	Applicable European standard for structural performance, safety, and durability of public area gang seating
EN 1022:2018 Domestic furniture - Seating - Determination of stability	Applicable reference standard for static stability testing of fixed non-tilting seating units

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.11-2015 Standard for Public Seating	Applicable North American standard for load capacity, durability, and safety requirements for multi-seat public waiting seating

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017 General technical requirements for furniture: Metal furniture	Applicable acceptance standard for structural stability, material finish, and dimensional tolerance of this metal public seating unit
GB/T 10357.3-2013 Test of mechanical properties of furniture: Strength and durability of chairs and stools	Applicable standard for static load, impact, and fatigue testing requirements for public use seating
GB 28007-2011 General technical requirements for children's furniture	Reference standard for edge radius and safety requirements if the product is specified for use in pediatric or educational settings

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017 General technical requirements for furniture: Metal furniture：Applicable acceptance standard for structural stability, material finish, and dimensional tolerance of this metal public seating unit；
2. GB/T 10357.3-2013 Test of mechanical properties of furniture: Strength and durability of chairs and stools：Applicable standard for static load, impact, and fatigue testing requirements for public use seating；
3. GB 28007-2011 General technical requirements for children's furniture：Reference standard for edge radius and safety requirements if the product is specified for use in pediatric or educational settings；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · WAIT-3SEAT-POLYCHROME-001

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · WAIT-3SEAT-POLYCHROME-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WAIT-3SEAT-POLYCHROME-001打开导出工具

页面快速操作

发布采购询价

产品描述

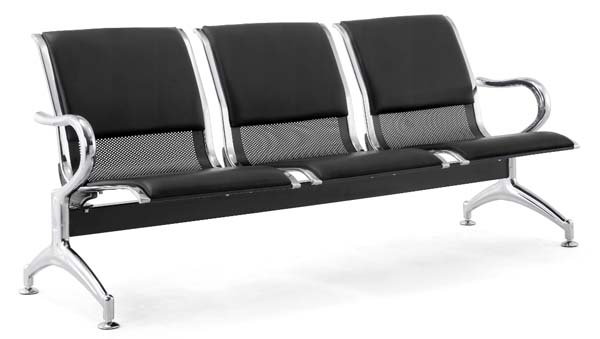

The WEINENG WT-3SEAT-POLYCHROME-001 is a three-seat public gang waiting chair designed for balanced comfort, durability and low maintenance in high-traffic environments. Its visual design pairs a polished chrome metal framework with black padded upholstery, creating a neutral, professional aesthetic defined by three clearly separated individual seating positions. Rsed polished chrome dividers sit between each seat to define personal space and discourage overcrowding, while curved continuous-loop chrome armrests cap both outer ends of the unit. Flared four-point end leg assemblies create a wide, stable footprint, and the two-tone backrest design combines perforated chrome mesh lower sections with padded black upper panels that match the seat upholstery.
The chair is built around a cold-rolled steel main support beam, with cast aluminum alloy end legs finished in polished chrome and fitted with adjustable, non-marring nickel-plated steel floor glides that accommodate uneven floor surfaces. Seat and backrest inner frames are constructed from treated cold-rolled steel with anti-corrosion pre-treatment, paired with internal bent plywood support boards. Seat pads and upper backrest sections use high-density polyurethane foam wrapped in non-porous black polyurethane upholstery, with reinforced nylon stitching that avoids exposed snag points on user contact surfaces. All exposed metal edges feature a rounded finish for user safety, and the perforated steel lower back panel enables consistent r circulation to reduce heat buildup during extended seated wts. The freestanding unit includes pre-drilled glide holes for optional permanent floor anchoring, and all smooth, non-porous surfaces can be wiped clean with standard disinfectants without damage.
This model is well suited for a wide range of commercial and public-facing spaces, including hospital and clinic waiting areas, rport, rl and bus terminal waiting zones, government and public service office lobbies, bank customer waiting areas, service center queue spaces, and school public common areas. Its fixed gang configuration prevents unapproved reconfiguration of seating layouts, while its robust build supports continuous dly visitor flow.
For procurement planning, teams should note the unit ships knocked down for efficient transport, with assembly completed by one person using standard hand tools. Loading quantities for standard shipping contners are calculated to support large-scale furnishing projects, and purchasers should confirm final material specifications directly with suppliers during order finalization, as noted reference values represent standard commercial grade benchmarks for this seating category. The chair’s design prioritizes long-term use with no moving joints to reduce ongoing maintenance requirements.

3-Seat Metal Frame Public Waiting Chair with Padded Upholstery Specifications
