mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1800 x 680 x 800 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Single seat width | 580 mm | |
| Seat depth | 480 mm | |
| Backrest height | 400 mm | |
| Backrest inclination | 105 degrees | |
| Armrest height from seat | 200 mm | |
| Floor clearance under seat | 320 mm | |
| Leg spread width (single leg assembly) | 750 mm | |
| Seat cushion thickness | 50 mm | |
| Perforated panel hole diameter | 8 mm | |
| Backrest pad thickness | 40 mm | |
| Armrest tube diameter | 32 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Net product weight | 28 kg | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total bench static load capacity | 450 kg | |
| Recommended maximum continuous occupancy | 3 adults | |
| Static load per armrest | 80 kg | |
| Frame anti-tip stability load | 120 kg | |
| Adjustable foot leveling range | 15 mm | |
| Pad abrasion resistance | 50000 cycles | |
| Surface corrosion resistance | 48 hours | |
| Suggested warranty period for commercial use | 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Support frame and legs | 1.5mm thick cold-rolled steel tube, polished chrome plated | |
|---|---|---|
| Seat and back inner panels | 1.2mm thick perforated cold-rolled steel plate, chrome plated | |
| Armrests | 2.0mm thick bent chrome-plated steel, welded to frame structure | |
| Seat and back upholstered pads | 20kg/m³ density high-resilience polyurethane foam, covered with 1.0mm thick blue PU leather | |
| Seat gap dividers | Black ABS plastic trim pieces between adjacent seats | |
| Floor glides | Nylon base with adjustable threaded steel insert, chrome finished top cap | |
| Frame welding joints | Full argon arc welded joints, ground smooth before chrome plating | |
| Perforated surface | Round punched holes, 10mm hole spacing across exposed back panels | |
| Seam stitching on upholstery | Reinforced polyester thread, 8 stitches per inch seam pitch | |
| Seat upholstered pads | 20kg/m³ density high-resilience polyurethane foam, covered with 1.0mm thick blue PU leather | |
| Backrest upholstered pads | 18kg/m³ density high-resilience polyurethane foam, covered with 1.0mm thick blue PU leather | |
| Under-seat connecting beam | 2.0mm thick rectangular cold-rolled steel tube, chrome plated |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Fixed gang seating configuration | Three connected individual seat positions mounted on a shared continuous beam frame | |
|---|---|---|
| Dual-material contact surface | Padded PU cushion/upper back provides soft contact, perforated steel lower back enables air circulation to reduce heat buildup during extended waiting | |
| Integrated armrests at both ends | Curved steel armrests at left and right bench ends provide upper body support and assist users when standing or sitting | |
| Adjustable floor leveling | Threaded glides on each leg adjust to compensate for uneven floor surfaces, eliminating rocking and reducing noise | |
| Wall-mount compatible design | Rear frame includes pre-set mounting points for optional anchoring to walls in high-security or high-traffic locations | |
| Bolt-together assembly | Frame sections connect with high-strength steel bolts and nuts, no permanent welding required for field assembly | |
| Easy cleaning surface | Smooth chrome plating and non-porous PU upholstery can be wiped down with standard disinfectant cleaners without damage | |
| Stackable storage capability for unassembled frames | Disassembled leg and beam components nest together to reduce warehouse storage space | |
| Integrated dual armrests | Curved steel armrests at left and right bench ends provide upper body support and assist users when standing or sitting | |
| Foam rebound performance | 40% rebound rate for seat cushion foam to maintain comfort without permanent indentation after long-term use; engineering based on commercial public seating foam specifications | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions | 1850 x 720 x 220 mm | |
| Gross shipping weight | 32 kg | |
| Shipping volume per unit | 0.293 CBM | |
| On-site assembly time | 30 minutes | |
| 20ft GP container loading quantity | 76 units | |
| 40ft HQ container loading quantity | 185 units | |
| Packaging materials | 5-layer corrugated carton, EPS foam corner protection, PE wrap for metal parts, polybag for hardware kit | |
| Hardware kit contents | 16 sets of M8 hex bolts, washers and lock nuts, 1 assembly wrench | |
| Reference Package Count | 1 set / 2 cartons |
推荐空间 / 目标用户 / 使用方式
| Hospital and clinic waiting areas | Durable, easy to clean construction meets hygiene requirements for healthcare facilities with high daily foot traffic | |
|---|---|---|
| Airport, railway and bus station waiting halls | High load capacity and robust metal frame withstand constant high turnover use in transit environments | |
| Government office and public service hall waiting zones | Formal, neutral blue and silver appearance matches official public space aesthetics, with accessible seat height for all adult users | |
| Bank and service center customer waiting areas | Comfortable padded seats reduce fatigue for customers waiting for service, with integrated armrests to support elderly and mobility-impaired users | |
| School and university reception or common areas | Stable construction resists damage from heavy student use, with no loose moving parts to reduce vandalism risk | |
| Optional row extension configuration | Multiple 3-seat units can be bolted end-to-end to create longer continuous seating rows for large waiting spaces | |
| Vaccination and temporary public waiting stations | Lightweight knock-down design allows fast deployment and reconfiguration for temporary public health or event waiting setups | |
| Recommended Matching Desk Size | 2.4 m executive desk |
欧洲市场准入与化学品要求
| EN 16139:2013 | Furniture - Strength, durability and safety for non-domestic seating | |
|---|---|---|
| EN 1022:2018 | Furniture - Seating - Determination of stability | |
| EN 13722:2004 | Furniture - Seating - Test methods for the determination of strength and durability of upholstered seats |
美国及加拿大办公家具标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for metal furniture | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture with upholstery | |
| GB/T 24821-2009 | Public furniture - Waiting seating |
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for metal furniture； 2. GB 18584-2001：Limit of harmful substances in wooden furniture with upholstery； 3. GB/T 24821-2009：Public furniture - Waiting seating； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

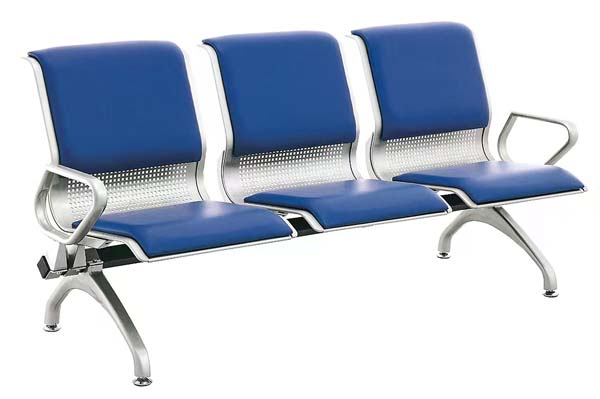

打开导出工具The WT-3S-001 three-seater public waiting bench is an unbranded gang seating solution designed for high-traffic shared spaces, balancing functional durability with approachable, streamlined visual character. Its layout follows a fixed linear three-position configuration with integrated curved armrests at both outer ends, separated by discrete black ABS dividers between individual seats. The seating surface provides soft blue PU-upholstered pads on the main seat and upper back zones with exposed chrome-plated perforated steel panels on the lower back, creating a clean two-tone visual contrast between polished silver metal, matte blue padding, and black divider trim. Construction centers on a rigid chrome-plated cold-rolled steel frame, with bent steel armrests fully welded to the supporting structure and all joints ground smooth before finishing to eliminate sharp edges. Seat and back pads use high-resilience polyurethane foam wrapped in abrasion-resistant PU leather, stitched with reinforced polyester thread for long-term use. Adjustable nylon glides with steel threaded inserts sit at each leg base, while perforated back panels feature uniform round punched holes to support air flow. The design supports bolt-together field assembly, with pre-set rear mounting points for optional wall anchoring, and unassembled components nest efficiently for compact storage during transport or warehousing. Functional features are tailored to short-stay waiting use: the upholstered pads reduce user fatigue, perforated back sections minimize heat buildup during extended waits, and end armrests are rated to support users when pushing up to stand. Generous floor clearance under the seat simplifies routine floor cleaning, while smooth, non-porous chrome and PU surfaces tolerate regular disinfection with standard cleaning products. Each seat supports standard adult static loads, with overall capacity aligned for three adult occupants. The threaded foot glides adjust to compensate for uneven floors, eliminating rocking and reducing contact noise on hard flooring surfaces. Multiple three-seat units can be bolted end-to-end to create extended continuous seating rows for larger spaces. This bench is well suited for a broad range of commercial and public settings, including hospital and clinic waiting areas, airport, rail and bus station waiting halls, government service and public administration lobbies, bank customer waiting zones, school reception and common areas, and temporary public waiting stations for events or public health use. Its neutral silver and blue finish coordinates with formal and functional public space aesthetics, and its compact footprint supports efficient floor space planning. For procurement teams, key considerations include pre-confirming material samples for PU pad density and covering specification to align with project requirements, as well as accounting for on-site assembly time for two workers using standard hand tools. The 3-year commercial warranty covers the frame structure, excluding wear on padded contact surfaces; purchasers should also note that the flat-pack, single-carton shipping format supports high-volume loading for standard freight containers, reducing per-unit logistics costs for large-scale installations.
