PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	670 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	150 kg
Chair net weight	19.5 kg
Seat foam thickness	65 mm
Seat foam density	45 kg/m3
Back mesh tensile load	120 kg
Gas-lift cycle life	100000 cycles
Caster rolling durability	100000 cycles
Seat static load test target	1020 kg
Backrest tilt lock range	125degrees
Recommended user height	190 cm

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Backrest upholstery	Gray flexible woven mesh stretched over a black perimeter frame
Seat upholstery	Gray woven mesh or mesh-textured fabric over molded foam cushion
Headrest	Gray padded mesh face with black curved plastic or composite rear housing
Armrests	Black injection-molded nylon supports with soft-touch polyurethane or PP pads
Seat mechanism	Black steel synchro-tilt plate enclosed by molded polymer mechanism cover
Base and gas lift	Polished die-cast aluminum five-star base with chrome-plated steel gas cylinder

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Height adjustment	Pneumatic lever changes seat height through an 80 mm stroke with 360-degree swivel
Recline control	Synchro-tilt mechanism moves seat and back through a 35-degree recline with three lock positions
Armrest adjustment	Height-adjustable arm posts provide 60 mm vertical travel and align the pads at 280 mm above the seat
Mobility and support	Five-star base carries five 60 mm twin-wheel casters and provides 360-degree movement on hard floors

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Export carton dimensions	680 x 640 x 380 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Primary workplace use	Suits open-plan offices, home offices and manager workstations requiring 8-hour ergonomic support
Flooring and layout fit	Suitable for hard floors and low-pile carpet in 1200 mm-deep work zones

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 suitability	Use office-work-chair dimensional safety requirements to verify seat height, back geometry and stability
EN 1335-2 suitability	Use office-work-chair safety requirements for structural integrity and caster performance
EN 1335-3 suitability	Use office-work-chair test methods for static load, fatigue and durability verification

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 suitability	Use the office chair standard for back, seat, base, arm and caster static and durability tests
BIFMA e3 suitability	Use furniture sustainability credits for material traceability, recycled aluminum content and low-emission foam when supplier data is available

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3 suitability	Apply strength and durability test requirements for the backrest, seat and armrest during procurement inspection
GB/T 3324 suitability	Use general technical requirements for wooden furniture only if molded boards or wood-based components appear in the supplier BOM

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3 suitability：Apply strength and durability test requirements for the backrest, seat and armrest during procurement inspection；
2. GB/T 3324 suitability：Use general technical requirements for wooden furniture only if molded boards or wood-based components appear in the supplier BOM；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · UBC-ERM-GY-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · UBC-ERM-GY-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UBC-ERM-GY-01打开导出工具

页面快速操作

发布采购询价

产品描述

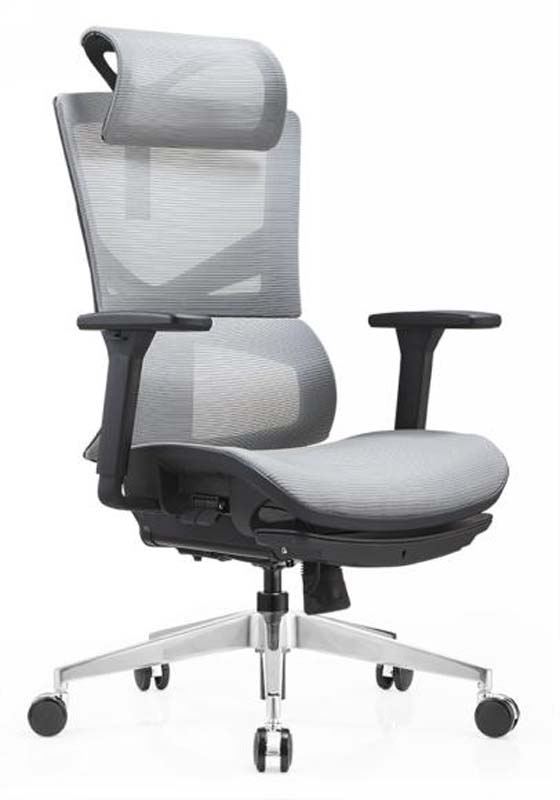

The UBC-ERM-GY-01 is an unbranded high-back ergonomic task chair designed for daily desk work in professional and residential settings. Its gray mesh back and seat create a light, breathable visual profile, while the black armrests, frame components and mechanism cover provide a structured contrast. The polished aluminum five-star base adds a refined commercial finish, and the headrest extends the high-back silhouette for integrated upper-body support. The overall form is organized around a central swivel seat, curved backrest, adjustable arm supports and a five-point rolling base. Overall dimensions are 670 by 680 by 1280 millimeters, with 540 millimeters of clear width between the armrests. Construction combines flexible woven materials with a supportive internal structure. The backrest uses gray flexible woven mesh stretched over a black perimeter frame, with a 240-millimeter lumbar support zone and 70-millimeter backrest padding thickness. The seat is finished in gray woven mesh or mesh-textured fabric over a molded foam cushion. The cushion has a finished thickness of 90 millimeters, using 65-millimeter foam at 45 kilograms per cubic meter density. The headrest features a gray padded mesh face with a black curved plastic or composite rear housing. Functional hardware is specified for regular office use. A pneumatic lever controls seat height through an 80-millimeter stroke, and the chair offers 360-degree swivel. The black steel synchro-tilt plate, enclosed by a molded polymer cover, coordinates seat and back movement through a 35-degree recline with three lock positions. Height-adjustable arm posts provide 60 millimeters of vertical travel and position the soft-touch polyurethane or PP pads at 280 millimeters above the seat. The arm supports use black injection-molded nylon, while the chrome-plated steel gas cylinder connects the seat to the polished die-cast aluminum base. Five black 60-millimeter twin-wheel casters enable 360-degree movement on hard floors. The chair is suited to open-plan offices, home offices and manager workstations requiring ergonomic support over an eight-hour workday. It also fits hard floors and low-pile carpet in 1200-millimeter-deep work zones. With a recommended user weight capacity of 150 kilograms, a net weight of 19.5 kilograms, and rated gas-lift and caster durability of 100000 cycles, it is appropriate for individual workstations, desk-focused seating upgrades and project-based office furnishing. Procurement planning should account for one set packaged across two cartons, a packaged gross weight of 23 kilograms, a reference carton volume of 0.26 cubic meter per set, and a reference assembly time of 40 minutes.

High-Back Gray Mesh Ergonomic Task Chair with Headrest Specifications
