| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
No parameter correction records exist. If you spot inaccurate data, click the flag icon at the end of the corresponding row to submit feedback. | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (W x D x H) | 620 x 600 x 1010 mm | |
|---|---|---|
| Seat width | 500 mm | |
| Seat depth | 480 mm | |
| Seat height adjustment range maximum | 540 mm | |
| Backrest width | 480 mm | |
| Backrest height | 520 mm | |
| Armrest height from seat | 200 mm | |
| Five-star base diameter | 600 mm | |
| Caster diameter | 50 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Recommended maximum user weight | 120 kg | |
|---|---|---|
| Net weight reference | 13 kg | |
| Seat foam density | 45 kg/m³ | |
| Backrest mesh tensile strength | 200 N/cm | |
| Caster rolling durability cycles | 100000 cycles | |
| Gas lift static load rating | 150 kg | |
| Five-star base static load rating | 1000 kg | |
| Seam tensile strength | 120 N/50mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Backrest panel | Breathable knitted mesh fabric with integrated lumbar support pad | |
|---|---|---|
| Seat cushion | Molded high-density polyurethane foam wrapped in woven fabric upholstery | |
| Backrest frame | Reinforced plastic frame with blue edge trim | |
| Armrests | Matte white plastic arm pads mounted on silver metal supports | |
| Gas lift cylinder | Chrome-plated steel pneumatic lifting cylinder | |
| Five-star base | Polished chrome-plated steel five-prong base with reinforced rib structure | |
| Casters | Black nylon twin-wheel casters with chrome-plated mounting brackets | |
| Seat base board | Plywood or composite load-bearing board under foam cushion | |
| Tilt mechanism | Steel plate tilt mechanism with tension adjustment | |
| Base center hub | Black nylon plastic central hub connecting five-star base to gas lift, with tapered fitting for secure attachment | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Seat height adjustment | Pneumatic height adjustment via right-side control lever, 100 mm total vertical stroke | |
|---|---|---|
| Swivel function | 360-degree full rotation around central gas lift axis | |
| Backrest tilt | Synchronized seat-back tilt with adjustable tension, up to 15 degrees of recline angle | |
| Fixed armrest support | Fixed-position T-shaped armrests at 200 mm above seat level, providing forearm support during typing | |
| Integrated lumbar support | Contoured central lumbar pad built into mesh backrest, positioned at lower back height | |
| Mobility on hard floors | Five twin-wheel nylon casters designed for smooth rolling on hard office floors | |
| Breathable back ventilation | Open mesh backrest structure allows continuous air circulation to prevent heat buildup | |
| Gas lift stroke | 100 mm | |
| Hard floor mobility | Five twin-wheel nylon casters designed for low-resistance rolling on hard office floors (tile, wood, laminate), 50 mm wheel diameter for smooth movement over small gaps | |
| Back ventilation | Open porous mesh backrest structure allows continuous air circulation across the entire back contact area, reducing heat and moisture buildup during long sitting sessions | |
| Tilt tension adjustment | Rotary tension knob under seat adjusts tilt resistance, accommodating user weights from 50 kg to 120 kg for personalized recline feel | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Packing configuration | 1 chair per carton, flat packed in knock-down form | |
|---|---|---|
| Carton dimensions | 650 x 580 x 320 mm | |
| Gross weight per carton | 15 kg | |
| Volume per carton | 0.121 CBM | |
| Assembly time | 30 minutes | |
| 20ft container loading quantity | 260 units | |
| Warranty period | 2 years | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
推荐空间 / 目标用户 / 使用方式
| Open-plan office workstations | Suitable for 1600 mm wide standard office desks, supporting 8-hour daily office work | |
|---|---|---|
| Staff workstations and call centers | Recommended for high-occupancy commercial office spaces with daily multi-shift use | |
| Meeting and conference rooms | Appropriate for conference table seating with 740 mm standard table height | |
| Home office and study rooms | Suitable for home desks 760 mm high for remote work and study tasks | |
| Computer workstations and IT desks | Ideal for keyboard-intensive work with fixed forearm support from armrests | |
| Temporary visitor seating | Suitable for reception areas and visitor zones adjacent to workstations, for short 1 to 2 hour sitting periods | |
| Training rooms and co-working spaces | Recommended for flexible multi-purpose training rooms with movable desks, supporting frequent rearrangement | |
| Recommended Matching Desk Size | 2.4 m executive desk |
欧洲市场准入与化学品要求
| Office chair safety and strength | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 1: Safety requirements | |
|---|---|---|
| Office chair dimensions and ergonomics | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 2: Dimensions - Determination of dimensions | |
| Office chair strength and durability testing | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 3: Test methods for the determination of strength and durability | |
| Office chair safety requirements | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 1: Safety requirements | |
| Office chair dimension determination | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 2: Dimensions - Determination of dimensions | |
| Office chair strength and durability test methods | Applicable to EN 1335:2009 Office furniture - Office chairs - Part 3: Test methods for the determination of strength and durability |
美国及加拿大办公家具标准
| Office chair general safety standard | Applicable to ANSI/BIFMA X2017 General Purpose Office Chairs - Tests | |
|---|---|---|
| Seat and backrest cyclic durability | Applicable to ANSI/BIFMA X2017 Clause 8 and 9 cyclic load tests | |
| General purpose office chair safety standard | Applicable to ANSI/BIFMA X2017 General Purpose Office Chairs - Tests | |
| Caster and base performance | Applicable to ANSI/BIFMA X2017 Clause 11 and 12 Base and caster tests |
适用于中国市场项目的标准
| Seat surface strength and stability | Applicable to GB/T 10357.3 Furniture mechanical performance test for chairs and stools | |
|---|---|---|
| Backrest strength and durability | Applicable to GB/T 10357.3 Clause 5 backrest load test | |
| Chair seat strength and stability | Applicable to GB/T 10357.3 Furniture - Mechanical and structural properties of tables, chairs and stools - Part 3: Chairs and stools |
本产品须满足以下技术参数要求： 1. Seat surface strength and stability：Applicable to GB/T 10357.3 Furniture mechanical performance test for chairs and stools； 2. Backrest strength and durability：Applicable to GB/T 10357.3 Clause 5 backrest load test； 3. Chair seat strength and stability：Applicable to GB/T 10357.3 Furniture - Mechanical and structural properties of tables, chairs and stools - Part 3: Chairs and stools； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

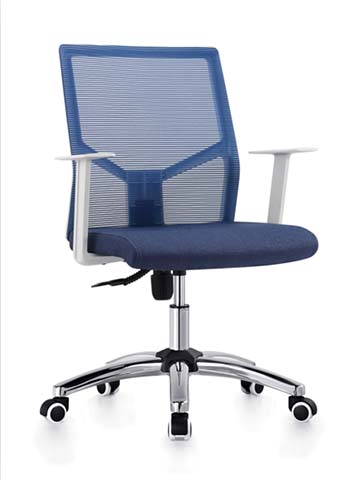

打开导出工具GUOYOU OC-MB-001 is a mid-back mesh office task chr with a padded fabric seat, designed to balance ergonomic support, breathable comfort, and functional mobility for varied seating scenarios. Its visual form features a streamlined silhouette with a breathable knitted mesh backrest framed by reinforced plastic with blue edge trim, pred with a fabric-upholstered seat, matte white plastic arm pads on silver metal supports, and a polished chrome-plated steel five-star base with black twin-wheel casters, creating a clean, modern look suitable for professional and personal workspaces. Constructed for durable dly use, the chr’s backrest combines open mesh fabric with an integrated contoured lumbar pad and a rigid supporting frame, while the seat uses molded high-density polyurethane foam wrapped in woven upholstery, with a load-bearing internal support board beneath the cushion. The pneumatic height adjustment relies on a chrome-plated steel gas lift cylinder, and the base incorporates a reinforced rib structure for structural stability, pred with a steel plate tilt mechanism under the seat. All load-bearing components are engineered to meet standard commercial seating strength requirements. Practical functions center on ergonomic adaptability and ease of use. Pneumatic seat height adjustment operates via a right-side control lever, accommodating standard desk heights. A synchronized seat-back tilt system with adjustable tension allows controlled recline, with an upright lock for focused work, while fixed T-shaped armrests provide consistent forearm support for typing tasks. The 360-degree swivel and smooth-rolling nylon casters enable easy movement across hard floor surfaces, and the open mesh backrest promotes continuous r circulation to reduce heat and moisture buildup during extended sitting. The integrated lumbar pad targets lower back support to minimize fatigue from prolonged seated work. This chr fits a wide range of commercial and residential spaces. It works well in open-plan office workstations, staff areas, and call centers, where its mid-back height fits under low desk partitions without obstructing sightlines and its breathable design supports long dly use. It is also appropriate for conference and meeting rooms, where full swivel supports easy interaction during group discussions, and for trning rooms and co-working spaces, where its lightweight design allows convenient repositioning. For residential use, it suits home offices and study rooms with standard desk heights, as its compact base fits well in smaller floor plans. It also serves as functional temporary seating in reception and visitor zones. For procurement planning, the chr ships flat packed in knock-down form for efficient storage and transport, with a 2-year warranty covering structural components. Procurement teams should note that caster type can be customized for carpeted floor use if required, and should confirm exact material specifications and load ratings directly with the supplier for mission-critical or heavy-use commercial deployments.
