PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 620 × 1010 mm
Overall chair dimensions	620 x 620 x 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	13.5 kg
Recommended user weight capacity	120 kg
Seat foam density	45 kg/m3
Foam rebound	40%
Back mesh tensile rating	220 N/50 mm
Fabric abrasion resistance	50,000 Martindale cycles
Gas lift cycle life	100,000 height-adjustment cycles
Caster rolling durability	100,000 cycles
Base static-load target	1,130 kg vertical verification load
Recommended warranty	3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Backrest	Black flexible woven mesh over a contoured polymer outer frame
Seat cover	Black woven fabric upholstery with stitched edge binding
Seat cushion	70 mm molded polyurethane foam on a load-bearing seat shell
Internal seat shell	8 mm glass-fiber-reinforced polypropylene seat plate
Armrests	Fixed black nylon T-arms with padded rectangular top surfaces
Five-star base	Injection-molded black nylon base with five radial legs

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Height adjustment	Pneumatic seat-height lift provides 100 mm travel through the visible right-side lever.
Recline function	Center-tilt or synchro-tilt mechanism allows 17-degree backward movement with tension control.
Tilt lock and tension	Under-seat lever locks the upright position; rotary knob adjusts backward resistance.
Mobility and rotation	360-degree swivel seat and five twin-wheel casters support movement around a workstation.

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open-plan office workstations	Suitable for daily computer and desk work because it provides lumbar mesh support, swivel mobility and 430 to 530 mm seat height.
Meeting, training and home-office spaces	Compact 620 mm footprint and fixed arms support flexible use at standard 720 to 760 mm desks.

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1	Suggested European office-chair dimensional safety standard
EN 1335-2	Suggested European safety requirements for office chairs
EN 1335-3	Suggested European office-chair test-method standard
EN 1021-1 and EN 1021-2	Suggested cigarette and match upholstery flammability tests

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1	Suggested North American office-chair safety and durability standard

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3	Suggested Chinese furniture mechanical test for chair strength and durability
GB/T 28001	Suggested occupational health-and-safety management reference for workplace procurement

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3：Suggested Chinese furniture mechanical test for chair strength and durability；
2. GB/T 28001：Suggested occupational health-and-safety management reference for workplace procurement；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OFC-MESH-FA-50B

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OFC-MESH-FA-50B

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-MESH-FA-50B打开导出工具

页面快速操作

发布采购询价

产品描述

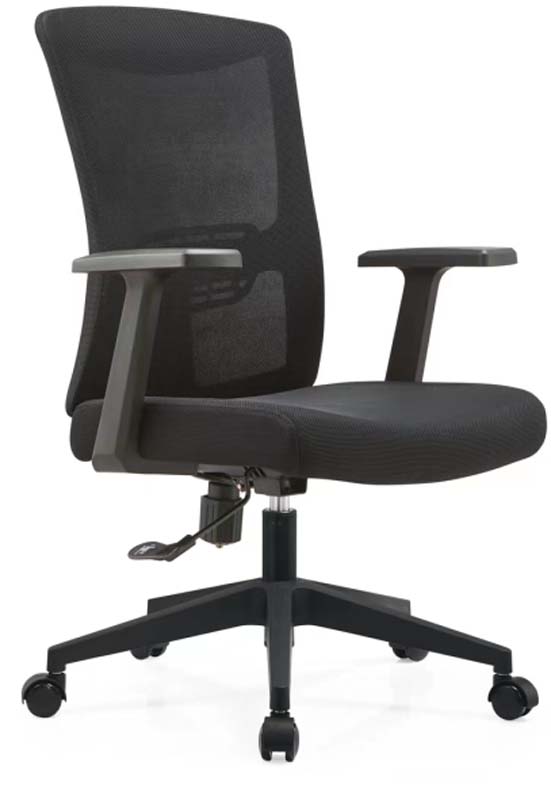

The Black Mesh Ergonomic Swivel Task Chair with Fixed Armrests is a practical office seating solution with a clean, professional appearance. Model OFC-MESH-FA-50B is unbranded and presented in a consistent black finish, combining a flexible woven mesh back with black woven fabric upholstery on the seat. Its visual structure includes a contoured polymer back frame, fixed T-shaped armrests, a molded seat, and a five-star base with twin-wheel casters, giving it a familiar task-chair profile suited to organized workstation environments. The overall chair dimensions are 620 by 620 by 1010 millimeters, with a clear width of 540 millimeters between the armrests. Construction balances cushioned support with durable componentry. The backrest uses black flexible woven mesh over its contoured outer frame and includes a 240-millimeter lumbar support zone, while the backrest padding thickness is 70 millimeters. The seat features stitched edge binding, a 90-millimeter finished cushion, and molded polyurethane foam on a load-bearing shell. The internal seat plate is made from 8-millimeter glass-fiber-reinforced polypropylene, and the seat foam has a density of 45 kilograms per cubic meter with 40 percent rebound. Fixed black nylon armrests provide padded rectangular top surfaces, and the injection-molded nylon five-star base uses five radial legs. A steel gas lift and twin-wheel nylon casters complete the mobility system. Material performance details include a back mesh tensile rating of 220 N per 50 millimeters, fabric abrasion resistance of 50,000 Martindale cycles, and a gas lift cycle life of 100,000 height-adjustment cycles. The chair has a net weight of 13.5 kilograms and a recommended user weight capacity of 120 kilograms. Functionality is centered on daily desk use. The pneumatic seat-height lift offers 100 millimeters of travel through the visible right-side lever, supporting a seat height range up to 530 millimeters. The center-tilt or synchro-tilt mechanism enables 17-degree backward movement with tension control. An under-seat lever locks the upright position, while a rotary knob adjusts backward resistance. Users also benefit from a 360-degree swivel seat and five casters for movement within a workstation. This model is appropriate for open-plan office workstations, computer-based tasks, meeting rooms, training areas, and home offices. Its compact footprint and fixed arms support flexible use at standard desks from 720 to 760 millimeters high. Procurement planning should account for delivery as one set in two cartons, a packaged gross weight of 23 kilograms, a reference assembly time of 40 minutes, and a carton volume of 0.26 cubic meter per set. The indicative loading capacity is 135 sets in a 20GP container at 85 percent space utilization.

Black Mesh Ergonomic Swivel Task Chair with Fixed Armrests Specifications
