PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	620 × 620 × 980 mm
Armrest height above seat	230 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	12.5 kg
Recommended user weight capacity	120 kg
Seat foam thickness	60 mm
Seat foam density	35 kg/m3
Back mesh tensile rating	250 N/50 mm
Fabric abrasion resistance	30,000 Martindale cycles
Gas-lift class	Class 3
Gas-lift stroke	100 mm
Caster rolling durability	50,000 cycles
Base static load rating	150 kg

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Backrest support	Black woven mesh tensioned in a molded polymer frame
Seat upholstery	Black woven fabric over contoured foam cushion
Seat cushion core	Molded polyurethane foam, 60 mm thick
Armrests	Black molded polypropylene loop arms fixed to the seat structure
Five-star base	Black glass-fiber-reinforced nylon radial base
Gas lift and center column	Black powder-coated steel telescoping tube with 50 mm outer diameter

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Pneumatic seat-height adjustment	Side-actuated Class 3 gas lift raises the seat through a 100 mm stroke from 420 to 520 mm
360-degree swivel	Swivel seat and back rotate around the gas-lift axis for flexible workstation access
Caster mobility	Five twin-wheel swivel casters provide omnidirectional movement on hard floors or low-pile carpet
Fixed arm support	Molded loop armrests provide fixed forearm support at 230 mm above the seat with no width, height, or pivot adjustment

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Workstation seating	Suited to individual desks, open-plan workstations, and administrative seating where breathable mesh support and compact mobility are required
General office and training use	Appropriate for daily shift use in offices, meeting rooms, training rooms, and home workplaces with 120 kg user-capacity specification

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OC-MB-MESH-FA-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OC-MB-MESH-FA-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OC-MB-MESH-FA-01打开导出工具

页面快速操作

发布采购询价

产品描述

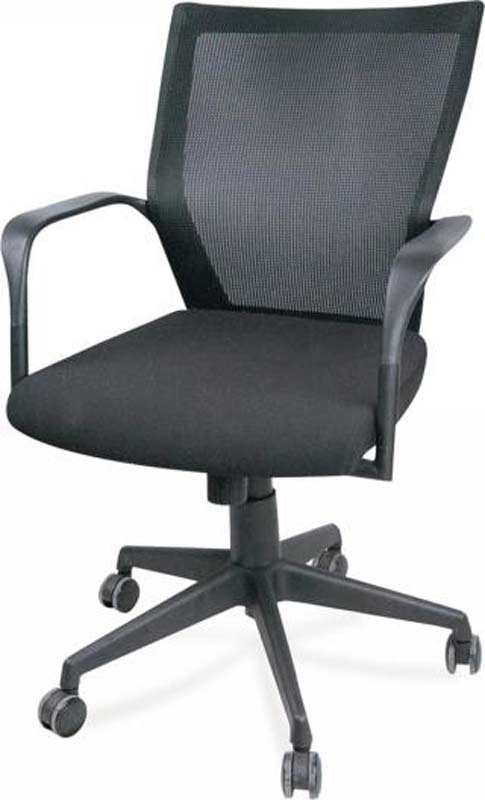

The Black Mesh Mid-Back Swivel Task Chair combines a practical office silhouette with mobile, adjustable support for everyday work settings. Its black woven mesh back is tensioned within a molded polymer frame, creating a breathable vertical surface with a contoured mid-back profile. The seat is upholstered in black woven fabric over a molded polyurethane foam cushion, while fixed black molded polypropylene loop arms present a clean, continuous visual line on each side. A black glass-fiber-reinforced nylon five-star base and five twin-wheel casters complete the classic task-chair form. Overall dimensions are 620 by 620 by 980 mm, with a 540 mm clear width between the armrests, giving the chair a compact footprint suitable for organized desk layouts. Construction centers on durable, specified materials. The finished seat cushion is 90 mm thick, including a 60 mm molded foam core with 35 kg per cubic meter density. Backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. The mesh has a tensile rating of 250 N per 50 mm, while the seat fabric is rated for 30,000 Martindale abrasion cycles. Armrests are fixed directly to the seat structure and stand 230 mm above the seat. The center column uses a black powder-coated steel telescoping gas lift with a 50 mm outer diameter, specified as Class 3. The chair has a net weight of 12.5 kg and a recommended user weight capacity of 120 kg. Functionally, the side-actuated pneumatic control adjusts seat height through a 100 mm stroke, from 420 to 520 mm. The seat and back rotate 360 degrees around the gas-lift axis, allowing users to turn between desk zones without moving the base. Five dual-wheel swivel casters provide omnidirectional movement on hard floors or low-pile carpet. The fixed loop arms offer stable forearm support but do not adjust in width, height, or pivot angle, making the chair best aligned with standard desk heights and straightforward workstation configurations. This model is suited to individual desks, open-plan workstations, administrative areas, meeting rooms, training rooms, and home workplaces where breathable back support and compact mobility are priorities. It is intended for daily office use within its stated weight capacity. For procurement, the chair is unbranded and identified by model OC-MB-MESH-FA-01. Each set ships in two cartons, with packaged gross weight of 23 kg, carton dimensions of 850 by 420 by 720 mm, and total carton volume of 0.26 cubic meter. Reference assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization.

Black Mesh Mid-Back Swivel Task Chair with Fixed Loop Arms and Five-Star Caster Base Specifications
