PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	670 × 680 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	150 kg
Net weight reference	18 kg
Static base load reference	500 kg
Caster rolling load per set	180 kg
Gas lift cycles reference	100,000 cycles
Seat sliding durability reference	100,000 cycles
Backrest recline durability reference	200,000 cycles
Typical daily user height range	190 cm
Suggested seat-foam density	45 kg/m3
Suggested back/seat foam rebound	40%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Back and headrest surface	Gray woven mesh over a black framed support, with contoured translucent tension zones
Seat upholstery	Gray mesh top layer over molded cushioning with a rounded padded front edge
Seat cushion core	Molded polyurethane foam, 60 mm nominal center thickness
Internal seat support	12 mm molded plywood or reinforced polymer seat carrier under the cushion
Back frame	Black glass-fiber-reinforced polymer outer frame with internal lumbar support straps
Armrests	Black polyurethane pads on height-adjustable polymer/metal support posts

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Height adjustment	Pneumatic seat-height lift changes the seat from 450 mm to 540 mm through a 90 mm stroke
Backrest recline	Synchronized tilt allows 125degree back movement with proportional seat tilt and multi-position lock
Armrest adjustment	Height-adjustable arm pads rise on vertical posts and include side triggers for height selection
Headrest support	Independent headrest panel provides neck support and uses an 80 mm height-adjustable bracket

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Gross weight	21 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Office workstation	Suitable for individual desk-based work where 540 mm seat height, recline and neck support are needed
Shared professional workspace	Suits hot desks, administrative staff and computer users up to 150 kg; casters support frequent repositioning

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · OC-MESH-HB-5060

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · OC-MESH-HB-5060

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OC-MESH-HB-5060打开导出工具

页面快速操作

发布采购询价

产品描述

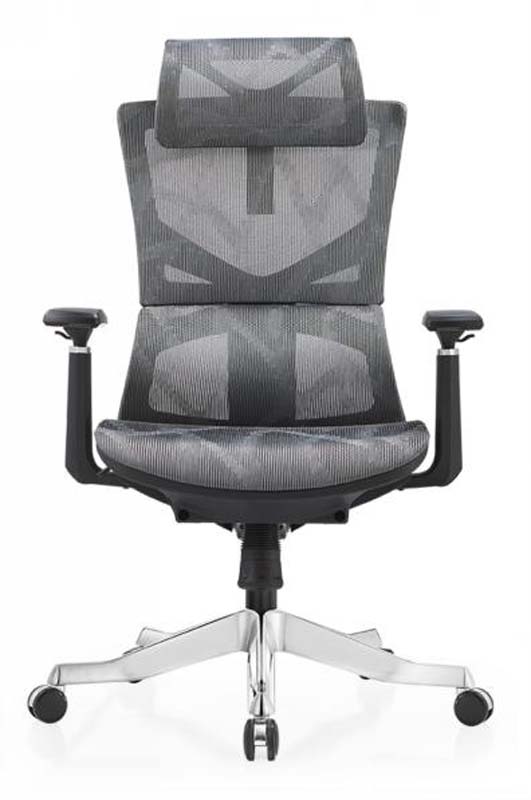

The High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms, model OC-MESH-HB-5060, presents a professional open-frame seating solution for focused desk work. Its gray woven mesh back and matching headrest are set against black framed supports, with contoured translucent tension zones that give the chair a light, structured appearance. The tall back rises to an independent headrest panel, while the padded seat, black armrests and polished aluminum five-star base create a balanced contrast between gray upholstery, black components and metallic detailing. Twin-wheel casters complete the mobile, executive-style form. Overall dimensions are 670 by 680 by 1280 mm, with a 540 mm clear width between the armrests. Construction combines breathable mesh, molded cushioning and reinforced support elements. The seat uses a gray mesh top layer over molded polyurethane foam with a rounded padded front edge; the finished cushion is 90 mm thick, with a 60 mm nominal foam center thickness. Beneath the cushion is a 12 mm molded plywood or reinforced polymer seat carrier. The back frame is made of black glass-fiber-reinforced polymer with internal lumbar support straps, and the 240 mm lumbar support zone is integrated into the tall back. Black polyurethane arm pads sit on height-adjustable polymer and metal support posts, while the mechanism and armrest structures use black polymer components. The polished aluminum base is fitted with black twin-wheel casters. Designed for regular seated work, the chair offers pneumatic seat-height adjustment from 450 mm to 540 mm through a 90 mm stroke. Its synchronized tilt allows 125 degrees of back movement with proportional seat tilt and a multi-position lock, supporting changes between upright task work and reclined postures. Side triggers control armrest height, and the headrest uses an 80 mm height-adjustable bracket to position neck support independently. The chair is suitable for private office workstations, computer desks, administrative roles, hot desks and shared professional environments where users may need to reposition the seat frequently. Its stated recommended user weight capacity is 150 kg, supported by reference figures including an 18 kg net weight, 500 kg static base load, 180 kg caster rolling load per set, 100,000 gas-lift cycles, 100,000 seat-sliding cycles and 200,000 backrest-recline cycles. Buyers should plan for assembly and handling: the product is supplied as one set in two cartons, with a 40-minute reference assembly time, 23 kg packaged gross weight and 0.26 cubic meter total carton volume. As an unbranded model, procurement review should focus on warranty terms, replacement-part availability, assembly instructions, floor surface compatibility and whether the mesh finish and adjustment range suit the intended users.

High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms Specifications
