mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 620 x 600 x 1080 mm | |
|---|---|---|
| Seat width | 500 mm | |
| Seat depth | 480 mm | |
| Seat height range | 540 mm | |
| Backrest width | 490 mm | |
| Backrest height | 560 mm | |
| Armrest height from seat | 210 mm | |
| Armrest pad width | 60 mm | |
| Chrome 5-star base diameter | 680 mm | |
| Caster diameter | 60 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Recommended static load capacity | 120 kg | |
|---|---|---|
| Net weight reference | 14 kg | |
| Gas lift cycle durability reference | 100000 cycles | |
| Caster rolling durability reference | 100000 cycles | |
| Backrest tilt angle range | 15 degrees | |
| Net product weight | 14 kg | |
| Backrest tilt cycle durability reference | 100000 cycles | |
| Seat foam indentation load deflection reference | 45 kg | |
| Recommended maximum occupant weight | 120 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Backrest support mesh | Blue woven elastic mesh with integrated lumbar contour | |
|---|---|---|
| Backrest outer frame | Reinforced plastic frame in matching blue | |
| Seat cushion upholstery | Blue woven fabric upholstery with stitched edges | |
| Seat cushion foam | High-density polyurethane foam core | |
| Armrest structure | White/light gray PP plastic fixed frame with flat top surface | |
| 5-star base | Chrome-plated steel tubular frame with five radial legs | |
| Gas lift cylinder | Chrome-plated steel pneumatic cylinder | |
| Casters | Black nylon twin-wheel casters with silver decorative ring | |
| Tilt mechanism housing | Black steel/PP chassis under seat | |
| Seat cushion foam core | High-density polyurethane foam with molded contour | |
| Seat base shell | Hard PP plastic shell supporting foam and upholstery | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Pneumatic seat height adjustment | Operated via right-side lever, 90 mm total travel using a telescopic gas cylinder | |
|---|---|---|
| Backrest tilt with lock | Single-lever controlled tilt mechanism with up to 15 degrees of rearward recline and lockable position | |
| 360-degree swivel rotation | Full continuous rotation around central gas lift axis enabled by top and bottom bearing rings | |
| Fixed height armrests | Rigidly mounted armrests at 210 mm above seat surface with no height, width, or pivot adjustment | |
| Integrated lumbar support | Contoured mesh back with a raised lower-back section for passive lumbar positioning | |
| Smooth rolling mobility | Five swivel casters designed for hard floors and low-pile carpet, each with 360-degree steering | |
| Backrest tilt with position lock | Controlled by the same side lever, providing up to 15 degrees of rearward recline with a lockable tilt position | |
| Integrated passive lumbar support | Contoured mesh back with a raised lower-back section that provides constant passive lumbar positioning during use | |
| Smooth rolling floor mobility | Five 360-degree swivel twin-wheel casters designed for use on hard floors and low-pile carpet | |
| Tilt tension adjustment | Operated via a rotary knob under the seat, adjusting backrest recline resistance to match user body weight | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Packing configuration | 1 chair per carton, flat-packed disassembly | |
|---|---|---|
| Carton dimensions | 700 x 650 x 320 mm | |
| Gross weight per carton | 16 kg | |
| CBM per carton | 0.146 m³ | |
| Assembly time per unit | 30 minutes | |
| 20ft container load quantity | 180 units | |
| 20ft general container load quantity | 180 units | |
| Warranty period reference | 2 years | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
推荐空间 / 目标用户 / 使用方式
| Open-plan office workstations | Suitable for daily 8-hour desk work at standard 760 mm height desks, with breathable mesh back for all-day comfort | |
|---|---|---|
| Staff meeting rooms | Appropriate for conference and training room seating with swivel mobility and fixed armrests for compact row spacing | |
| Home office setups | Compatible with residential desks and small work areas, requiring only basic assembly tools and minimal floor space | |
| Temporary workstations and hot-desking | Suitable for shared desk environments due to easy height adjustment and wipe-clean mesh/fabric surfaces | |
| Administrative and clerical workstations | Ideal for data entry, document processing, and computer-focused tasks with passive lumbar support | |
| Startup team office areas | Cost-effective seating option for growing teams with standard office furniture configuration requirements | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
欧洲市场准入与化学品要求
| EN 1335-1:2020 Office furniture - Office work chair - Part 1: Dimensions - Determination of dimensions | Applicable for seat height, back height, and armrest dimensional verification | |
|---|---|---|
| EN 1335-2:2018 Office furniture - Office work chair - Part 2: Safety requirements | Recommended for structural safety and stability acceptance checks | |
| EN 1335-3:2009 Office furniture - Office work chair - Part 3: Test methods | Recommended for defining strength and durability test protocols |
美国及加拿大办公家具标准
| ANSI/BIFMA X5.1-2017 General-Purpose Office Chairs - Tests | Recommended for procurement acceptance covering static load, impact, durability, and stability | |
|---|---|---|
| ANSI/BIFMA X5.11-2015 Office Chairs - Caster/Base Testing | Applicable for evaluating 5-star base and caster durability under cyclic loading |
适用于中国市场项目的标准
| GB/T 3326-2016 Furniture - Tables, chairs and stools - Classification and terms | Applicable for product classification and nomenclature of office seating | |
|---|---|---|
| GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3: Determination of strength and durability of chairs and stools | Recommended for structural strength and durability acceptance testing of the chair frame and mechanism |
本产品须满足以下技术参数要求： 1. GB/T 3326-2016 Furniture - Tables, chairs and stools - Classification and terms：Applicable for product classification and nomenclature of office seating； 2. GB/T 10357.3-2013 Furniture - Mechanical and physical properties of furniture - Part 3: Determination of strength and durability of chairs and stools：Recommended for structural strength and durability acceptance testing of the chair frame and mechanism； 最终交付参数、检测报告和验收标准以双方采购合同为准。
以下文件均根据当前已发布商品参数实时生成。
直接下载英文参数报告，可选择公制或英制单位。
导出全部商品信息与参数模块，文件内容统一使用英文。
包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。
生成申报品名、材质、用途、尺寸及海关申报要素。

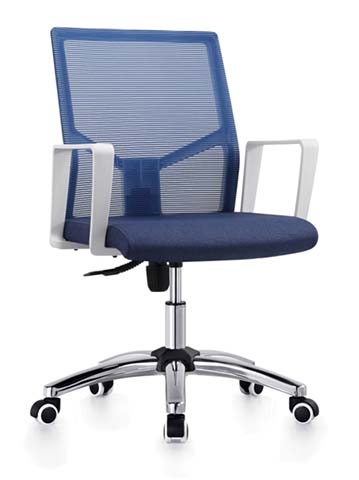

打开导出工具This mid-back mesh task office chr, model OC-MB-021, presents a streamlined, functional silhouette designed for everyday work use. Its visual form balances breathable open construction with structured support: a blue woven elastic mesh backrest sits within a matching reinforced plastic outer frame, pred with a blue woven fabric seat cushion that has neatly stitched edges. White or light gray PP plastic fixed armrests with flat rectangular top pads frame the seat, while a shiny chrome-plated steel five-star base with black nylon twin-wheel casters, accented with silver decorative rings, forms the stable lower foundation. The overall layout follows standard task chr proportions, with the backrest sized to provide mid-back thoracic support. Constructed with durability and comfort in mind, the chr features a high-density polyurethane foam core in the seat, supported by a hard PP plastic shell and internal support board. The mesh backrest incorporates an integrated contoured lumbar section for targeted lower-back positioning. The chrome-plated steel tubular base connects to the seat via a chrome-plated steel pneumatic gas lift cylinder and a black steel or PP tilt mechanism housing. Rigid PP armrest frames are fixed in place, and the five swivel casters are engineered for smooth movement across hard floors and low-pile carpet. Core practical functions support adaptable dly use. A right-side lever controls pneumatic seat height adjustment, as well as backrest tilt with a lockable position that allows rearward recline up to 15 degrees. A rotary knob under the seat adjusts tilt tension to match user body weight. The chr offers full 360-degree swivel rotation for easy access to surrounding workspace, and fixed-height armrests provide steady forearm support during keyboard work. The breathable mesh back promotes r circulation during extended sitting periods. This seating solution fits a wide range of commercial and residential spaces. It works well in open-plan office workstations, administrative and clerical work areas, and staff meeting or trning rooms, where its uniform appearance and compact footprint support standardized layouts. It also suits temporary workstations and hot-desking environments, thanks to easy height adjustment and wipe-clean surfaces. For residential settings, it prs effectively with home office desks and fits within small work areas. Startup teams will find it a cost-effective seating option that coordinates with varied office desk styles. For procurement planning, note that the chr ships flat-packed, with one chr per carton. Single-person assembly using basic tools is required, with expected assembly time of 40 minutes per set. The chrome base and mesh/fabric construction align with standard commercial office seating specifications, and the chr supports a recommended maximum occupant weight of 120 kg for safe dly use. Warranty terms and exact material specifications should be confirmed directly with the supplier prior to final purchase.
