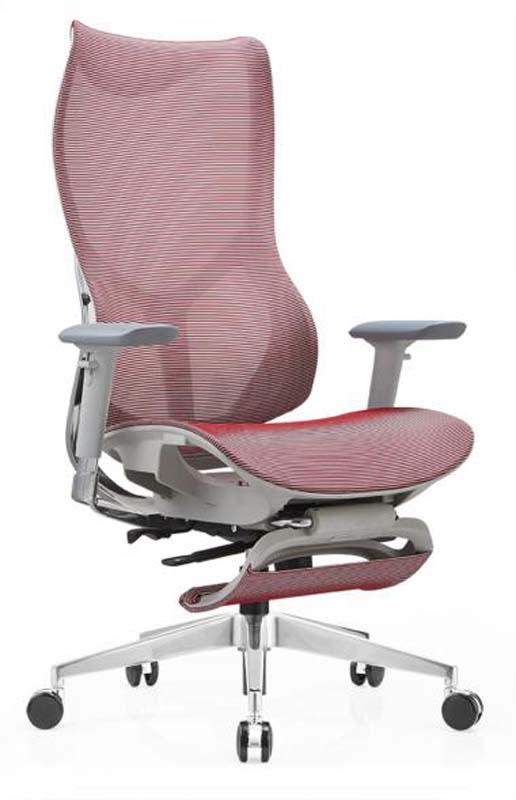

商品供应商High-Back Red Mesh Ergonomic Executive Chair with Retractable Footrest，Red horizontal-weave elastic mesh stretched over a contoured high-back frame
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 690 × 690 × 1260 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Recommended user weight | 150 kg | |
|---|---|---|
| Net weight | 23 kg | |
| Static vertical load verification target | 1136 kg | |
| Gas-lift fatigue verification target | 100000 height-adjustment cycles | |
| Caster rolling durability target | 100000 cycles on both smooth and obstacle tracks | |
| Back-rest cyclic load target | 120000 recline cycles | |
| Seat-front downward load target | 159 kgf | |
| Tilt range | 93 to 125 degrees | |
| Mesh abrasion acceptance target | 50000 Martindale rubs | |
| Color options | 1 visible red color |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Backrest upholstery | Red horizontal-weave elastic mesh stretched over a contoured high-back frame | |
|---|---|---|
| Seat upholstery | Red mesh layer over a molded cushion or tensioned seat shell | |
| Arm pads | Grey soft-touch polymer pads mounted on grey height-adjustable supports | |
| Under-seat frame | Grey reinforced polymer or painted structural housing with exposed metal linkage | |
| Five-star base | Polished die-cast aluminum radial base with five outward legs | |
| Gas lift | Chrome-plated steel telescopic cylinder with black upper collar |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Height adjustment | Pneumatic right-side lever changes seat height over a 90 mm lift stroke for desks 700 to 780 mm high | |
|---|---|---|
| Recline and lock | Synchro tilt moves seat and back together and locks at 4 positions from 93 to 125 degrees | |
| Armrest adjustment | Vertical arm supports provide 60 mm height adjustment and padded forearm support during keyboard tasks | |
| Footrest operation | Swing-out mesh footrest unfolds from beneath the seat for reclined leg rest and retracts flush when not used |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Carton dimensions | 820 x 660 x 360 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Executive office and workstation | Suitable for 6 to 10 hour desk work because the high back, adjustable arms, recline and footrest support upright and relaxed postures | |
|---|---|---|
| Manager and private office use | Recommended for daily commercial seating at desks 700 to 780 mm high, with hard-floor or carpet caster specification confirmed before order |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1335-1 office furniture office chair dimensions | Applies to dimensional fit and user-size compatibility for a task-oriented swivel office chair. | |
|---|---|---|
| EN 1335-2 safety requirements | Applies to structural safety, stability and hazardous-motion checks for the tilt, footrest and caster system. | |
| EN 1335-3 test methods | Applies to static load, fatigue, rolling and durability verification used during purchasing inspection. |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.1 office chairs | Applies to back, seat, base, caster, stability and cyclic-load tests for commercial office seating; test evidence is not supplied in the image. | |
|---|---|---|
| BIFMA e3 furniture sustainability standard | Applies only if the purchaser requires material, chemical and recycled-content scoring; no sustainability claim is visible. |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 10357.3 furniture strength and durability | Applies to seat and back static and fatigue acceptance tests for office seating; use as a procurement verification standard, not a claimed certification. | |
|---|---|---|
| GB/T 28004-2020 swivel office chair | Applies to dimensional stability, safety, mechanism durability, base and caster performance for this swivel office chair. | |
| GB 17927 furniture upholstery fire performance | Applies if the purchaser specifies ignition-resistant mesh or cushion textiles; no flame-rating is visible on the product. |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 10357.3 furniture strength and durability：Applies to seat and back static and fatigue acceptance tests for office seating; use as a procurement verification standard, not a claimed certification.； 2. GB/T 28004-2020 swivel office chair：Applies to dimensional stability, safety, mechanism durability, base and caster performance for this swivel office chair.； 3. GB 17927 furniture upholstery fire performance：Applies if the purchaser specifies ignition-resistant mesh or cushion textiles; no flame-rating is visible on the product.； 最终交付参数、检测报告和验收标准以双方采购合同为准。
