PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	610 × 620 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	13.5 kg
Rated user weight	120 kg
Seat static-load verification target	136 kg
Back static-load verification target	136 kg
Base static-load verification target	1136 kg
Caster rolling durability target	100000 cycles
Gas-lift durability target	100000 height cycles
Seat sliding and cyclic durability target	100000 cycles
Recommended daily user duration	8 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Backrest mesh and frame	Black woven polyester mesh tensioned within a black polymer outer frame
Seat cushion	Molded polyurethane foam with black woven fabric upholstery
Seat support shell	Injection-molded polypropylene or glass-reinforced polymer seat shell
Armrests	Black fixed T-shaped polymer arm pads on vertical polymer supports
Gas lift and center column	Chrome-plated steel telescopic gas cylinder with black plastic telescopic cover
Five-star base and casters	Polished die-cast aluminum or chrome-plated steel base with black nylon twin-wheel casters

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Seat-height adjustment	Pneumatic lever raises or lowers the seat over a 100 mm stroke while the chair is unloaded
Swivel movement	360-degree swivel around the gas-lift center with a five-star rolling base
Recline and tension control	Center mechanism allows recline movement and the right-side paddle provides tension or lock control
Mobility and stationary use	Five 50 mm twin-wheel casters provide rolling movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open-plan and assigned workstations	Suitable for daily computer and desk tasks because of swivel mobility, adjustable seat height, arm support, and breathable mesh back.
Conference, training, and admin areas	Suitable for shared seating areas where a compact black task chair can be moved, cleaned, and used for up to 8 hours per occupant.

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 dimensions	Applies to office-task-chair dimensional fit and functional geometry
EN 1335-2 safety requirements	Applies to structural safety, stability, and chair strength acceptance
EN 1335-3 test methods	Applies to mechanical test procedures for seat, back, arms, base, and casters
EN 1021-1 cigarette ignition	Applies to upholstery smolder resistance when fabric and foam ignition testing is specified

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 office chairs	Applies to back, seat, base, arm, drop, tilt, and caster durability tests

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2 furniture mechanical test	Applies to seat and back static-load acceptance testing for office-chair strength
GB/T 10357.3 furniture durability test	Applies to seat and back fatigue evaluation for repeated office use
GB/T 3324 general technical furniture requirement	Applies to dimensional stability, workmanship, hardware fit, and finish inspection
GB 17927 furniture textile safety	Applicable standards and test results require confirmation

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.2 furniture mechanical test：Applies to seat and back static-load acceptance testing for office-chair strength；
2. GB/T 10357.3 furniture durability test：Applies to seat and back fatigue evaluation for repeated office use；
3. GB/T 3324 general technical furniture requirement：Applies to dimensional stability, workmanship, hardware fit, and finish inspection；
4. GB 17927 furniture textile safety：Applicable standards and test results require confirmation；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · MB-MESH-TASK-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · MB-MESH-TASK-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MB-MESH-TASK-01打开导出工具

页面快速操作

发布采购询价

产品描述

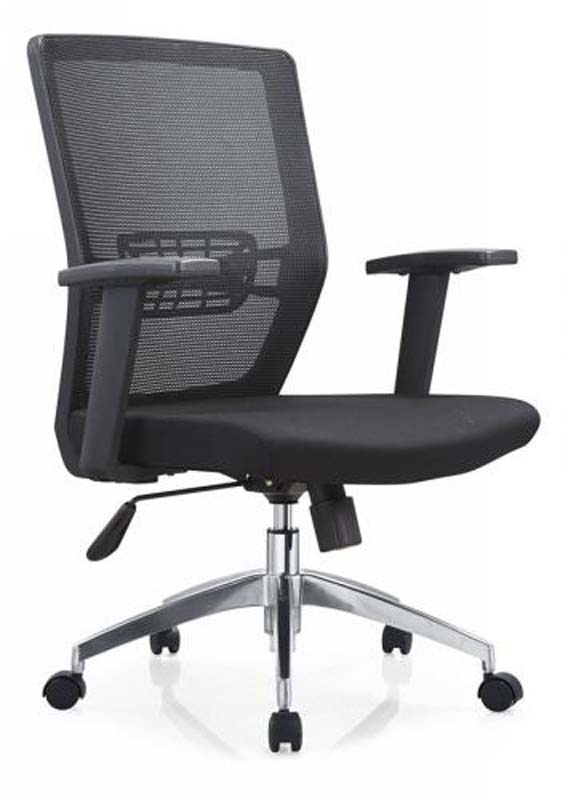

The Black Mesh Mid-Back Swivel Task Chair is a practical office seating solution with a clean, functional appearance. Its black woven polyester mesh back is tensioned within a matching black polymer frame, creating a breathable visual surface and a structured mid-back silhouette. The black upholstered seat, fixed T-shaped armrests, polished five-star base, and twin-wheel casters give the chair a familiar professional look suited to conventional desk environments. Between the armrests, the clear width is 540 mm, supporting an open seating layout while retaining compact side boundaries. The seat cushion is 90 mm thick, the backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. Construction combines molded polyurethane foam with black woven fabric upholstery for the seat. Beneath the cushion, an injection-molded polypropylene or glass-reinforced polymer shell provides support. The armrests use black fixed T-shaped polymer pads mounted on vertical polymer supports. Height adjustment is delivered through a chrome-plated steel telescopic gas cylinder with a black plastic telescopic cover, while the polished five-star base is produced in die-cast aluminum or chrome-plated steel. Black nylon twin-wheel casters complete the mobile base. Daily use features include pneumatic seat-height adjustment through a 100 mm stroke when the chair is unloaded, a 360-degree swivel, and a center mechanism that permits recline movement. A right-side paddle controls recline tension or lock position. The five 50 mm twin-wheel casters allow movement across hard floors and low-pile carpet. With a net weight of 13.5 kg and a rated user weight of 120 kg, the chair is intended for regular task seating rather than lounge or heavy-round-the-clock use. This unbranded model, MB-MESH-TASK-01, is suitable for open-plan workstations, assigned desks, conference rooms, training spaces, and administrative areas. Its breathable mesh back, adjustable height, swivel action, and arm support make it appropriate for computer and desk work, including shared seating use for up to 8 hours per occupant. The black finish also supports spaces where a coordinated, understated appearance is preferred. Procurement planning should note that each set ships in two cartons, with packaged gross weight of 23 kg and reference assembly time of 40 minutes. The reference carton dimensions are 850 by 420 by 720 mm, with carton volume of 0.26 cubic meters per set. The indicative loading figure for a 20GP container is 135 sets at 85 percent space utilization. Buyers should review base material options, floor surface compatibility, assembly resources, and replacement caster availability when specifying larger quantities.

Black Mesh Mid-Back Swivel Task Chair Specifications
