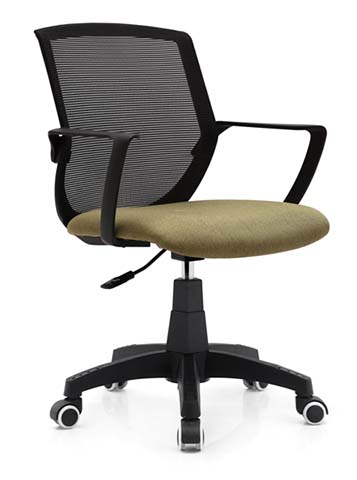

Mid-Back Mesh Office Task Chair with Fabric Seat Specifications

OC-MB-001

代码:QAX74XV1
获取供应商报价
2026-08-05 17:06人气: 71
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OC-MB-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions620 x 600 x 1010 mm
Seat width500 mm
Seat depth480 mm
Seat height range (floor to top of seat)540 mm
Backrest height520 mm
Backrest width460 mm
Armrest height (top of arm to seat)210 mm
5-star base diameter600 mm
Caster wheel diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight120 kg
Chair net weight reference14 kg
Seat foam density reference45 kg/m³
Caster rolling durability reference100000 cycles
Swivel rotation360 degrees
Tilt lock angle reference12 degrees
Seat foam density45 kg/m³
Swivel rotation range360 degrees
Maximum tilt recline angle12 degrees
Backrest mesh tensile strength reference200 N/cm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest support frameInjection-molded nylon plastic frame with contoured shape
Backrest suspensionElastic polyester mesh fabric with horizontal striped weave
Seat cushion upholsteryWoven polyester fabric in light olive beige finish
Seat cushion coreMolded polyurethane foam padding
ArmrestsOne-piece nylon plastic fixed armrests with curved support brackets
Height adjustment mechanismBlack painted steel tilt mechanism plate + chrome plated steel gas lift cylinder
5-star baseNylon plastic five-point base with ribbed reinforcement
CastersDual-wheel nylon casters with silver decorative trim ring
Backrest suspension surfaceElastic polyester mesh fabric with horizontal striped weave
Armrest assemblyOne-piece nylon plastic fixed armrests with integrated curved support brackets, mounted directly to seat pan frame
Height adjustment gas liftChrome-plated steel pneumatic gas lift cylinder with sealed nitrogen charge
Tilt mechanism plateBlack painted steel tilt mechanism plate with integrated pivot and control lever mount
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustmentOperated via right-side lever, adjusts seat height over 100mm total stroke
360-degree swivelFull continuous rotation around central gas lift axis
Center-tilt rocking functionBackrest and seat tilt together around central pivot, with single-position lock
Fixed armrest supportNon-adjustable curved armrests at fixed height and width
Mobile rolling baseFive dual-wheel casters for smooth movement on hard floor surfaces
Breathable mesh back supportElastic mesh conforms to back shape with continuous air circulation
Weight-activated tilt tensionAdjusts rocking resistance automatically based on user weight
360-degree full swivelContinuous unrestricted rotation around the central gas lift axis, enabled by the five-point base and central bearing
Fixed height armrest supportNon-adjustable curved armrests at fixed 210mm height above seat surface and fixed 620mm overall outer width
Hard-floor mobile rolling baseFive dual-wheel 50mm nylon casters mounted to each base leg end, enable smooth rolling on hard flat floor surfaces
Breathable mesh back ventilationElastic open-weave mesh conforms to user back shape and allows continuous air circulation through the backrest
Weight-responsive tilt tensionRocking resistance adjusts proportionally to user body weight via internal mechanism spring, no manual tension adjustment knob
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Packaging configuration1 unit per flat pack carton
Carton dimensions650 x 600 x 300 mm
Gross weight per carton16 kg
Volume per carton (CBM)0.117 CBM
Assembly time per unit20 minutes
20ft container loading quantity280 units
Included assembly accessoriesHex key, screws, washers, installation manual
Volume per carton0.117 CBM
Single unit assembly time20 minutes
Reference Package Count1 set / 2 cartons
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office workstationsSuitable for standard 1600 mm desk configurations in multi-person office areas
Home office and remote work setupsIdeal for home desks 760 mm high for daily work and study
Meeting and conference roomsAppropriate for conference table seating for meetings up to 4 hours duration
Staff training rooms and education spacesSuitable for training center and classroom computer stations
Small business and startup workspacesCost-effective seating option for growing teams on budget
Temporary co-working and hot-desk areasSuitable for shared hot-desk zones with high daily user turnover
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office chair safety and stabilityEN 1335:2020
Office chair testing methodsEN 1335:2019
Office chair safety, dimensions and stabilityEN 1335:2020
Office chair durability test methodsEN 1335:2019
Office chair safety evaluation criteriaEN 1335:2009
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

General office chair standardANSI/BIFMA X2021
Seat cyclic fatigue testANSI/BIFMA X2021
Backrest cyclic fatigue testANSI/BIFMA X2021
Caster and base static loadANSI/BIFMA X2021
General office chair performance standardANSI/BIFMA X2021
Seat cyclic fatigue test requirementANSI/BIFMA X2021
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Seat surface stability and strengthGB/T 10357.3
Backrest strength and durabilityGB/T 10357.3
Caster wear and rolling performanceGB/T 10357.3
Formaldehyde emission for upholstered componentsGB 18584
Flame retardant performance of fabricGB 20286
Backrest strength and cyclic durabilityGB/T 10357.3
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Seat surface stability and strength:GB/T 10357.3;
2. Backrest strength and durability:GB/T 10357.3;
3. Caster wear and rolling performance:GB/T 10357.3;
4. Formaldehyde emission for upholstered components:GB 18584;
5. Flame retardant performance of fabric:GB 20286;
6. Backrest strength and cyclic durability:GB/T 10357.3;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OC-MB-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OC-MB-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OC-MB-001打开导出工具

页面快速操作

发布采购询价

产品描述

The GUOYOU OC-MB-001 Mid-Back Mesh Office Task Chair with Fabric Seat presents a streamlined, professional silhouette tailored for flexible work environments, featuring a dark grey horizontally striped elastic mesh backrest paired with a light olive beige woven fabric seat, finished with black nylon structural components and silver caster trim for a cohesive, understated aesthetic. Its compact form occupies a maximum footprint aligned with standard mid-back task chair proportions, with a 520mm tall mid-back frame sized to deliver lumbar support for users up to 175cm in height, and fixed curved armrests positioned to support neutral forearm positioning during typing tasks. The chair balances durable, purpose-built construction with daily-use comfort: the contoured injection-molded nylon back frame supports taut, breathable mesh rated for 200 N/cm tensile strength, while the 90mm thick seat cushion uses 45 kg/m³ high-density molded polyurethane foam for consistent support. Fixed one-piece nylon armrests mount directly to the seat frame, connected to a ribbed reinforced nylon five-star base fitted with 50mm dual-wheel hard-floor casters, and a chrome-plated steel gas lift paired with a black painted steel tilt mechanism enables core adjustability. Functional features include 360-degree continuous swivel, pneumatic seat height adjustment adjustable to a 540mm maximum seat height to align with standard 760 mm desk heights, a center-tilt rocking function with 12-degree maximum recline and single-position lock, and weight-responsive tilt tension that automatically adjusts rocking resistance to user weight. The open mesh backrest enables continuous air circulation to reduce heat buildup during extended sitting, and casters may be swapped for soft-wheel alternatives for low-pile carpet use. This chair is suited for open-plan office workstations supporting 8 hours of daily use, home office setups, meeting and conference rooms for sessions up to 4 hours, staff training spaces, startup workspaces, and high-turnover co-working hot-desk zones, with a neutral finish that coordinates with varied interior design schemes. For procurement, note the chair ships in knock-down flat-pack packaging, with a maximum 20-minute single-person assembly time using the included hex key, screws, washers, and installation manual. Each unit packs to a maximum 0.117 CBM carton volume with 16kg gross weight, allowing 280 units per 20ft non-palletized container for bulk planning. The chair supports a maximum 120kg static user weight, with caster durability referenced at 100000 rolling cycles for hard surfaces; confirm material performance ratings, gas lift safety certifications, and exact component specifications with suppliers prior to final order placement to align with project requirements.
